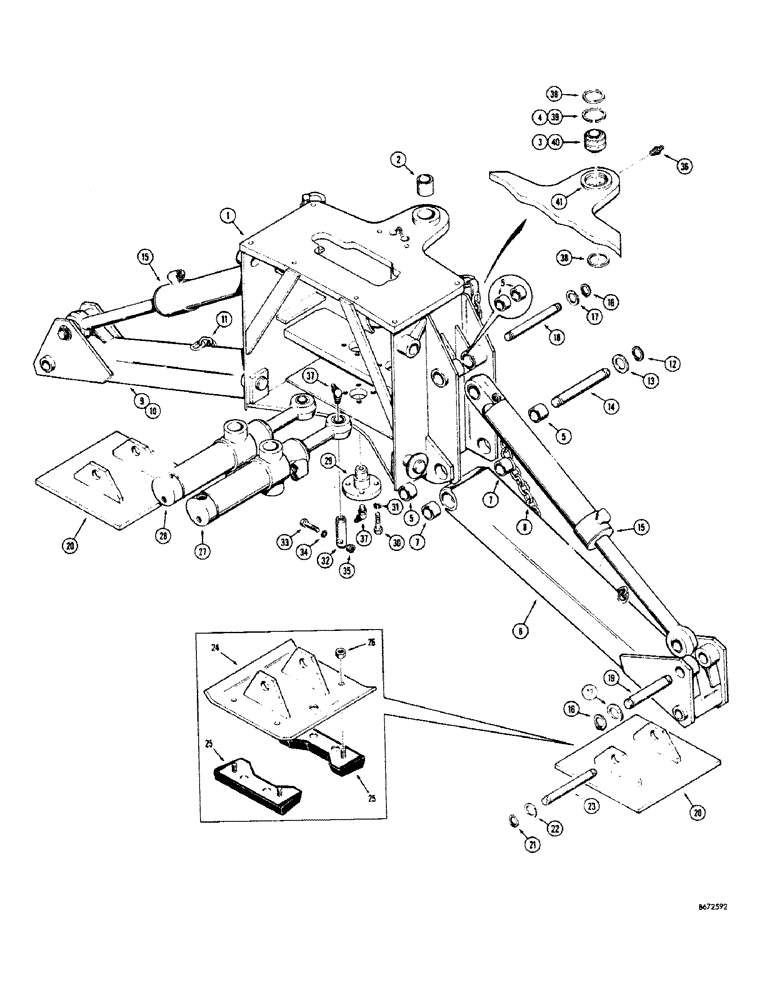

Запчасти Case 680CK (172) - BACKHOE MOUNTING FRAME AND STABILIZERS (84) - BOOMS, DIPPERS & BUCKETS

1

D42779

FRAME - backhole mounting

1шт.

2

D21927

BUSHING,51.03mm ID x 63.45mm OD x 50.8mm L

- upper, frame to swing tower

1шт.

3

D23601

HOUSING

BUSHING - pivotal ball type (See D14016 bushing kit, ref. nos. 38 through 40

1шт.

4

NLS

NO LONGER SERVICED

3.156", Int, #315, bushing, see D14016 bushing kit, ref. nos. 38 through 40

1шт.

5

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- stabilizer bracket at cylinder

4шт.

5a

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- stabilizer bracket at leg

4шт.

6

D43292

SUPPORT ASSY.

LEG - stabilizer, L.H.

1шт.

7

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

-, Serial Range: leg-frame

2шт.

8

D43895

CHAIN (AG)

CHAIN - transport

1шт.

9

D43291

SUPPORT ASSY.

LEG - stabilizer, L.H.

1шт.

10

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

-, Serial Range: leg-frame

2шт.

11

D43895

CHAIN (AG)

CHAIN - transport

1шт.

12

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

4шт.

13

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, steel (2-1/16")

4шт.

14

D42911

PIN

- stabilizer, Serial Range: leg-frame

2шт.

15

D42708

CYLINDER - hydraulic, stabilizer (4" I.D. x 21-3/8" stroke) parts list Figure 214

2шт.

16

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

8шт.

17

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, steel (1-13/16")

4шт.

18

D37611

PIVOT PIN,44.45mm OD x 255.59mm L

PIN - stabilizer cylinder, closed end

2шт.

19

D42912

AXLE PIN

PIN - stabilizer cylinder, rod end

2шт.

20

D42767

PAD

FOOT - stabilizer, cleated

2шт.

21

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

4шт.

22

RESERVED

1шт.

23

D42785

AXLE PIN

PIN - stabilizer foot

2шт.

24

D43295

FOOT - stabilizer, street or cemetary pad (Optional)

2шт.

25

D40469

SHOE (ASSY)

PAD - rubber, D43295 stabilizer foot (Optional)

4шт.

26

D29712

SPECIAL NUT

- hex., special

8шт.

27

D37626

HYDRAULIC CYLINDER

CYLINDER - hydraulic, R.H. swing (4" I.D. x 11" stroke) Parts list Figure 220

1шт.

28

D37625

CYLINDER ASSY.

CYLINDER - hydraulic, L.H. swing (4" I.D. x 11" stroke) Parts list Figure 220

1шт.

29

D30724

PIN

- swing, Serial Range: cylinder-frame

4шт.

30

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

16шт.

31

92-8

LOCK WASHER,1/2"

16шт.

32

D30761

PIN

- swing cylinder to swing tower

2шт.

33

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

HHCS - 5/8" - 11 NC x 4"

2шт.

34

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

35

25-1010

NUT,5/8"-11, G5

2шт.

36

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

37

219-39

FITTING

- grease, 45 degrees (1/8" NPT)

6шт.

D14016

KIT

BUSHING KIT - lower mounting frame

1шт.

38

D26991

BEARING

SPACER - bearing

2шт.

39

49477

RING, SNAP

3.156", Int, #315, bushing

1шт.

40

D23601

HOUSING

BUSHING - pivotal ball type

1шт.

41

D42630

BEARING

RETAINER - bearing

1шт.
