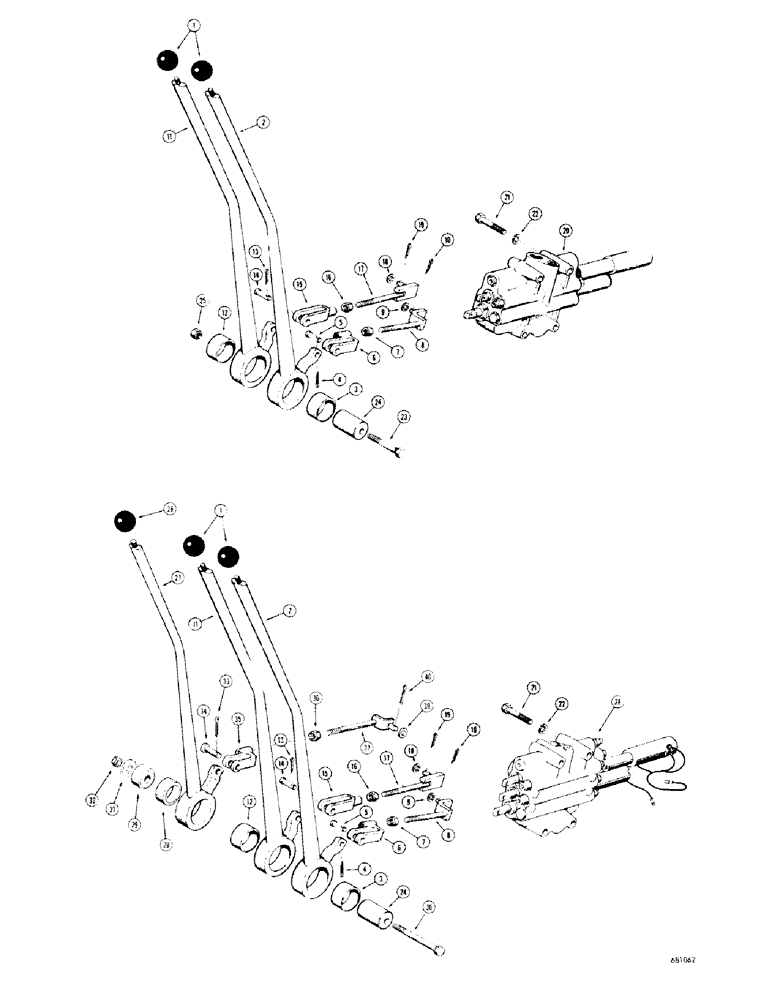

Запчасти Case 680CK (170) - LOADER CONTROL VALVE AND LEVERS (82) - FRONT LOADER & BUCKET

1

A19416

BALL

KNOB - control lever

2шт.

2

L11461

LEVER - loader, outer (Loader lift and lower)

1шт.

3

A13845

BUSHING

- lover

1шт.

4

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

1шт.

5

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

6

L11182

YOKE,3/8" - 24

- outer control lever to control rod

1шт.

7

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

1шт.

8

L11460

ROD - outer control lever to loader control valve, lift and lower section

1шт.

9

95-4

WASHER,1/4"

- standard wrot () 1/4"

1шт.

10

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

1шт.

11

L11631

LEVER - loader, inner (Loader dump and rollback)

1шт.

12

A13845

BUSHING

- lever

1шт.

13

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

1шт.

14

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

15

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - inner control lever to control rod

1шт.

16

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 Nf)

1шт.

17

L11459

ROD - inner control lever to loader control valve, dump and rollback section

1шт.

18

95-4

WASHER,1/4"

- standard wrot () 1/4"

1шт.

19

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

1шт.

20

L13755

X

VALVE - hydraulic, loader control (Two spool), Parts list Figure 226

1шт.

21

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

1шт.

22

92-6

LOCK WASHER,3/8"

1шт.

23

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

1шт.

24

L11268

PIN - control lever pivot

1шт.

25

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

1шт.

26

A19416

BALL

KNOB - control lever, three spool valve only

1шт.

27

L15014

LEVER - loader, clam type bucket, three spool valve only

1шт.

28

A13845

BUSHING

- lever, three spool valve only

1шт.

29

L15018

PIN - control lever pivot, three spool valve only

1шт.

30

13-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

Three spool valve only Hex, 1/2"-13 x 5", G5

1шт.

31

195-2054

WASHER,17/32" x 2" x .238"

- flat, steel (1/2"), three spool valve only

1шт.

32

131-10

NUT,1/2"-13, GB

NUT, LOCK, , 3 spool valve only 1/2"-13, GB

1шт.

33

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), , Three spool valve only 3/32" x 7/8"

1шт.

34

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , 3 spool valve only 3/8" x 1.060"

1шт.

35

L11182

YOKE,3/8" - 24

- L.H. control lever to control rod, three spool valve only

1шт.

36

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF), three spool valve only

1шт.

37

L15019

ROD - L.H. control lever to loader control valve, clam type bucket, three spool valve only

1шт.

38

L15308

VALVE

- hydraulic, loader control (Three spool) Used on models with clam type bucket, Parts list Figure 228

1шт.

39

95-4

WASHER,1/4"

- standard wrot (), three spool valve only 1/4"

1шт.

40

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), , Three spool valve only 3/32" x 7/8"

1шт.
