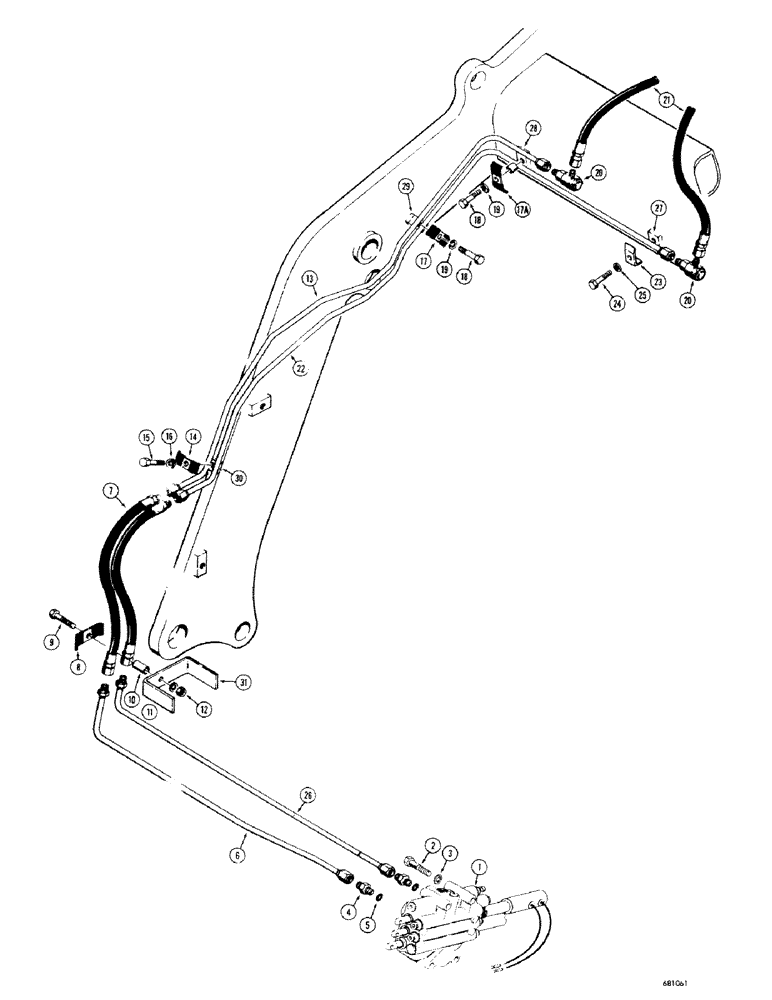

Запчасти Case 680CK (168) - CLAM TYPE BUCKET HYDRAULICS (82) - FRONT LOADER & BUCKET

1

L15308

VALVE

- hydraulic, clam type bucket control (Three spool), Parts list Figure 228

1шт.

2

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - male, straight

2шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

6

L15318

TUBE - valve to clam cylinder, rod end

1шт.

7

L15317

HOSE ASSY.

HOSE - valve to clam cylinder (32" long)

2шт.

8

L15315

CLAMP

- hose

1шт.

9

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

10

D36524

BUSHING

SPACER - hose

1шт.

11

92-5

LOCK WASHER,5/16"

1шт.

12

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

13

L15304

TUBE - valve to bucket cylinder, rod end 0.625" OD x 57.9, 6.5" L

1шт.

14

L15301

CLAMP

- tube

1шт.

15

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

1шт.

16

92-5

LOCK WASHER,5/16"

1шт.

17

L15301

CLAMP

- tube

1шт.

17a

L15315

CLAMP

- tube

1шт.

18

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

2шт.

19

92-5

LOCK WASHER,5/16"

2шт.

20

L15313

ELBOW - special, 90 degrees

2шт.

21

L15321

HOSE ASSY.

HOSE - elbow to bucket (28-1/2" long)

2шт.

22

L15305

TUBE - valve to clam cylinder (Closed end) 0.625" OD

1шт.

23

L15302

CLAMP - tube

1шт.

24

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

25

92-6

LOCK WASHER,3/8"

1шт.

26

L15310

TUBE - valve to clam cylinder (Closed end)

1шт.

27

L15314

TAPPED BLOCK - tube mounting (2" x 1" x 1/2")

1шт.

28

L15316

TAPPED BLOCK - tube mounting (3" x 1-1/4" x 3/4")

1шт.

29

D39023

BLOCK

TAPPED BLOCK - tube mounting (2-1/2" x 1-1/4" x 1/2")

1шт.

30

L15309

TAPPED BLOCK - tube mounting (1-1/2" x 1-1/4" x 1/2")

1шт.

31

L15319

BRACKET - hose clamp mounting

1шт.
