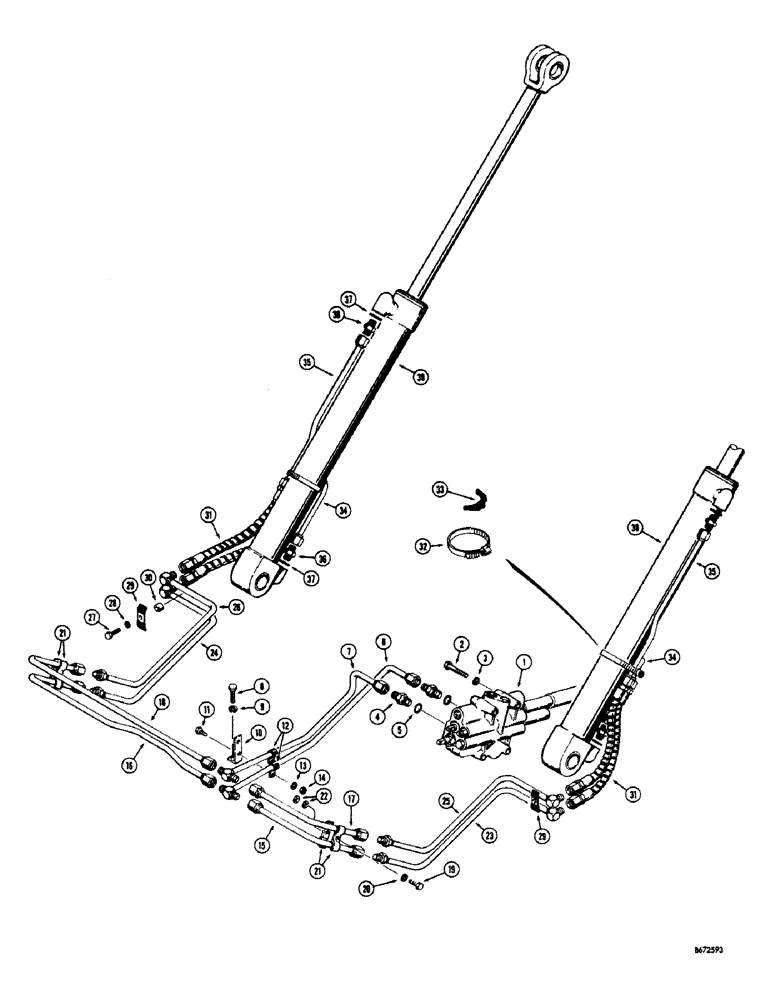

Запчасти Case 680CK (166) - LOADER HYDRAULICS, LIFT CYLINDER (82) - FRONT LOADER & BUCKET

1

REF

INSTRUCTION

VALVE - hydraulic, loader control (2 spool), See Figure 170 or 226 for proper valve

1шт.

2

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Male, straight

2шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

6

L11474

SPARE PART Valve to lift cylinder, closed end (At valve) 0.75" OD

1шт.

7

L11475

SPARE PART Valve to lift cylinder, rod end (At valve)

1шт.

8

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

9

92-6

LOCK WASHER,3/8"

1шт.

10

L11298

BRACKET - tube clamp mounting

1шт.

11

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

12

49855

CLAMP

Tube

2шт.

13

92-5

LOCK WASHER,5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

Hex

2шт.

15

L11277

SPARE PART Valve to RH lift cylinder, closed end (Intermediate inner) 0.625" OD x 100.3, 4" L

1шт.

16

L11470

TUBE - valve to LH lift cylinder, close end (Intermediate inner)

1шт.

17

L11468

TUBE - valve to RH lift cylinder, rod end (Intermediate inner)

1шт.

18

L11469

TUBE - valve to LH lift cylinder, rod end (Intermediate inner)

1шт.

19

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

20

92-5

LOCK WASHER,5/16"

2шт.

21

L11322

CLAMP - tube

4шт.

22

195-21

WASHER,5/16"

4шт.

23

L13722

TUBE - valve to RH lift cylinder, closed end (Intermediate outer)

1шт.

24

L13721

SPARE PART Valve to LH lift cylinder, closed end (Intermediate outer)

1шт.

25

L13725

TUBE - valve to RH lift cylinder, rod end (Intermediate outer)

1шт.

26

L13724

TUBE - valve to LH lift cylinder, rod end (Intermediate outer)

1шт.

27

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

28

92-5

LOCK WASHER,5/16"

2шт.

29

R17319

CLAMP

Tube

2шт.

30

D33552

BUSHING

SPACER - clamp

2шт.

31

D34780

HOSE

Valve to lift cylinder (19" long)

4шт.

32

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

Tube to cylinder

2шт.

33

D39502

SADDLE

Tube, rubber

2шт.

34

D34772

TUBE

Valve to lift cylinder, rod end (At cylinder)

2шт.

35

D34770

TUBE

Valve to lift cylinder, rod end (At cylinder)

2шт.

36

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Male, straight

4шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

1шт.

38

D42738

CYLINDER ASSY.

Hydraulic, RH loader lift (3-1/2" I.D. x 31" stroke) Parts list Figure 208

1шт.

39

D34742

CYLINDER

Hydraulic, LH loader lift (3-1/2" I.D. x 31" stroke) Parts list Figure 208

1шт.
