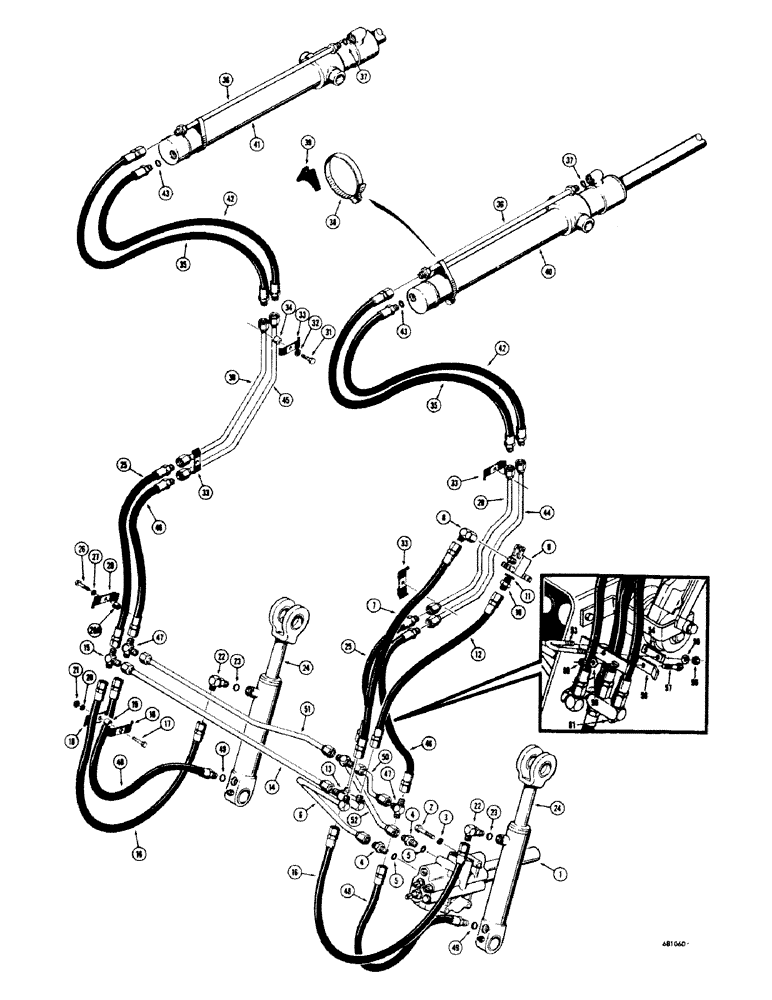

Запчасти Case 680CK (162) - LOADER HYDRAULICS, HYDRA-LEVELING AND DUMP CYLINDERS (82) - FRONT LOADER & BUCKET

1

REF

INSTRUCTION

VALVE - hydraulic, loader control (2 spool), See Figure 170 or 226 for proper valve

1шт.

2

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Male, straight

2шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

6

L13727

TUBE - loader valve to dump and hydra-leveling cylinders, rod end

1шт.

7

L13749

LARGE HOSE

HOSE,LARGE Anti-rollback valve, upper port (41" long)

1шт.

8

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

(Used with L13702 valve only)

1шт.

9

L13702

SPARE PART VALVE - bucket, anti-rollback (Parts list Figure 160) Used before tractor S/N 9102141 (When stock is exhausted, order L15373 valve for service)

1шт.

L15373

SPARE PART VALVE - anti-rollback, loader bucket (Used on tractor S/N 9102141 and after), Parts list Figure 160

1шт.

10

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Male, straight (Used with l13702 valve only)

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

12

L13748

SPARE PART Anti-rollback valve rear port to manifold (38" long)

1шт.

13

L13752

MANIFOLD - dump and hydra-leveling cylinder, rod end

1шт.

14

L13743

TUBE - crossover, dump and hydra-leveling cylinders (Rod end)

1шт.

15

218-595

TEE,7/8"-14, 37 Degree

Tube

1шт.

16

35543

HOSE

SPARE PART Hydra-leveling cylinders, rod end (28" long)

2шт.

17

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

18

L15315

CLAMP

Hose

4шт.

19

D33829

BUSHING

SPACER - clamp

2шт.

20

92-5

LOCK WASHER,5/16"

2шт.

21

9635082

NUT,5/16" - 18, Gr 5

Hex

2шт.

22

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjustable

2шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

1шт.

24

D34738

CYLINDER

Hydraulic, hydra-leveling (3" I.D. x 7-1/4" stroke), Parts list Figure 212

2шт.

25

L13747

HOSE

Crossover tube to dump cylinders, rod end (28-1/2" long)

2шт.

26

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

27

92-5

LOCK WASHER,5/16"

1шт.

28

D33316

CLAMP

Hose

1шт.

28a

D36524

BUSHING

SPACER - hose

1шт.

29

L13732

SPARE PART TUBE - RH dump cylinder, rod end (At lift frame)

1шт.

30

L13735

TUBE - LH dump cylinder, rod end (At lift frame)

1шт.

31

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

32

92-5

LOCK WASHER,5/16"

4шт.

33

D33316

CLAMP

Tube

4шт.

34

D33552

BUSHING

SPACER - clamp

4шт.

35

D32284

HOSE,12.7mm ID x 1016mm L, SAE 100R2

At dump cylinders, rod end (40" long)

2шт.

36

L13737

TUBE

At dump cylinders, rod end

2шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

2шт.

38

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

Tube to cylinder

2шт.

39

D38648

BLOCK

SADDLE - tube, rubber

2шт.

40

D34739

HYDRAULIC CYLINDER

RH loader dump (3" I.D. x 23-9/16" stroke), Parts list Figure 210

1шт.

41

D34740

HYDRAULIC CYLINDER

LH loader dump (3" I.D. x 23-9/16" stroke), Parts list Figure 210

1шт.

42

L13750

HOSE

At dump cylinders, close end (34" long)

2шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

1шт.

44

L13729

TUBE - RH dump cylinder, closed end (At lift frame)

1шт.

45

L13731

TUBE - LH dump cylinder, closed end (At lift frame)

1шт.

46

L13746

HOSE

To dump cylinder, closed end (24-1/2" long)

2шт.

47

218-595

TEE,7/8"-14, 37 Degree

Tube

2шт.

48

L13744

HOSE ASSY.

Hydra-leveling cylinders, closed end (24" long)

2шт.

49

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

1шт.

50

L13738

SPARE PART TUBE - RH crossover, dump and hydra-leveling cylinders (Closed end)

1шт.

51

L13741

SPARE PART TUBE - LH crossover, dump and hydra-leveling cylinders (Closed end)

1шт.

52

L11467

TUBE - loader valve to dump and hydra-leveling cylinders (Closed end)

1шт.

53

L15155

"U" BOLT - hose clamping

1шт.

54

L15156

CLAMP - hose

1шт.

55

195-18

WASHER,1/4"

2шт.

56

131-2

NUT,1/4"-20, GB

Hex

2шт.

57

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

58

D33316

CLAMP

Hose

1шт.

59

195-21

WASHER,5/16"

1шт.

60

131-4

LOCK NUT,5/16"-18, GB

1шт.

61

221-12

PLUG,Sq Hd, 1/4"-18

Pipe (1/4" NPT)

1шт.
