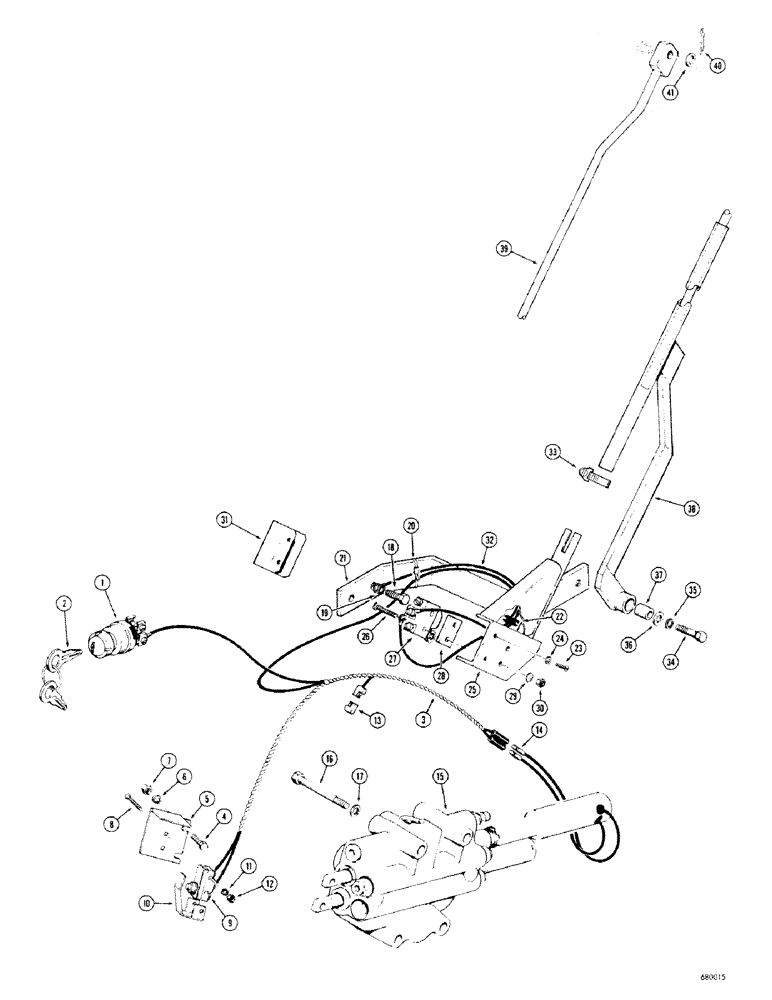

Запчасти Case 680CK (158) - LOADER RETURN TO DIG PARTS (82) - FRONT LOADER & BUCKET

L17820

SWITCH

AND KEY - electrical (Replaces A11373)

1шт.

NOTE:ANOTHER SWITCH AND KEY USED(NOT A SUB) 10/31/96

1шт.

1

NSS

NOT SOLD SEPARAT

SWITCH - electrical

1шт.

2

A20346

KEY

- switch, ignition

1шт.

3

L13757

HARNESS

- wiring, Serial Range: return-dig

1шт.

4

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

5

L11629

BRACKET - actuator switch mounting

1шт.

6

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

25-104

NUT,1/4"-20, G5

2шт.

8

171-68

SCREW - machine, flat head (#6 - 32 NC x 1-1/4")

2шт.

9

A19513

SWITCH

- actuator, neutral start

1шт.

10

L11390

ARM - actuator switch engagement

1шт.

11

195-506

WASHER,#6

- plain () Zinc plated #6

2шт.

12

129-15

NUT,#6-32

2шт.

13

L11760

DIODE

- switch protection

1шт.

14

L11778

CONNECTOR, ELEC

TERMINAL - electrical, bullet type

2шт.

15

L13755

X

VALVE - loader control, 2 spool, Parts list Figure 226

1шт.

16

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

3шт.

17

92-6

LOCK WASHER,3/8"

3шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - wire to limit switch bracket

1шт.

21

L13700

BRACKET - limit switch box mounting

1шт.

22

49560

BAR

- limit switch box

1шт.

23

173-224

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- machine, round head (#8 - 32 NC x 1/4") Zinc plated

2шт.

24

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, Ext, #8

2шт.

25

D40884

BOX

- limit switch mounting

1шт.

26

169-144

SCREW,Sl Fil Hd, #6 - 32 x 1 1/4"

- machine, fillister head (#6 - 32 NC x 1-1/4") Zinc plated

2шт.

27

D40921

SWITCH

- limit, Serial Range: return-dig

1шт.

28

D40924

SHIM

SPACER - switch

1шт.

29

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

2шт.

30

129-15

NUT,#6-32

2шт.

31

D40922

COVER

- limit switch

1шт.

32

L15241

WIRE - ground

1шт.

33

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - tube, worn screw type

1шт.

34

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" - 16 NC x 2"

1шт.

35

92-6

LOCK WASHER,3/8"

1шт.

36

195-25

WASHER,3/8"

- plain () 3/8"

1шт.

37

D40925

SPACER

SLEEVE - tube

1шт.

38

L15037

TUBE - rod support

1шт.

39

L13753

ROD - limit switch

1шт.

40

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

41

195-33

WASHER,1/2"

- plain () 1/2"

1шт.
