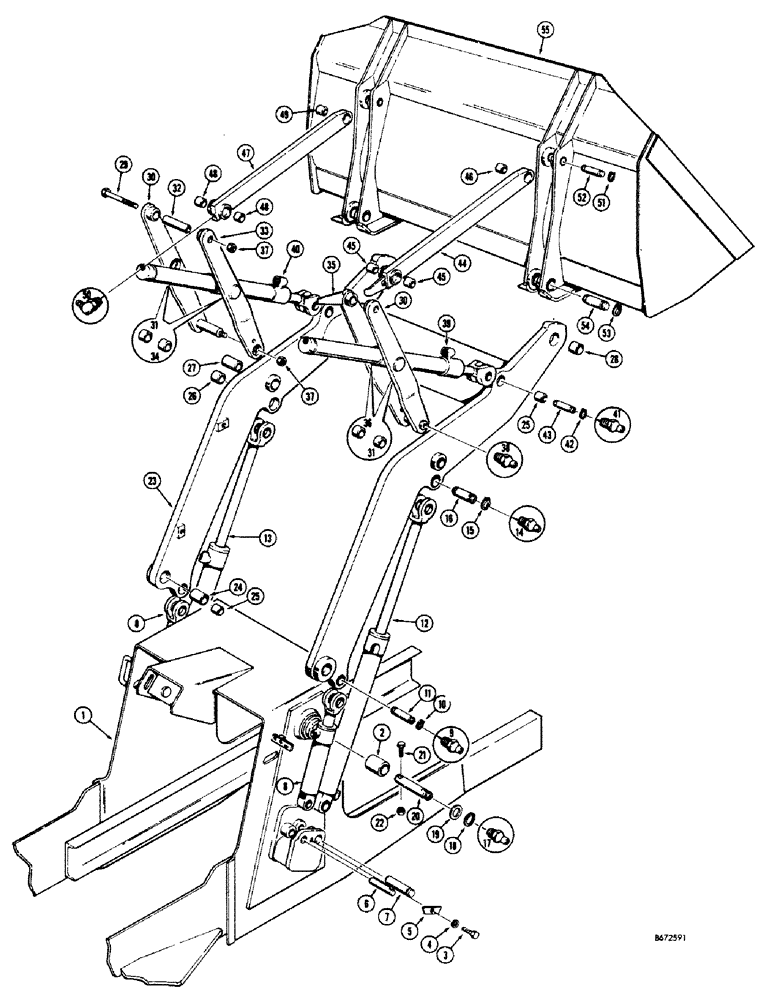

Запчасти Case 680CK (150) - LOADER LIFT FRAME AND RELATED PARTS, LOADER LIFT FRAME AND RELATED PARTS (82) - FRONT LOADER & BUCKET

1

L13552

CHASSIS ASSEMBLY - tractor, See Figure 128 for other component and other related parts

1шт.

2

D34506

BUSHING,51.02mm ID x 63.5mm OD x 63.5mm L

Lift frame pivot bracket

2шт.

3

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

4

92-8

LOCK WASHER,1/2"

2шт.

5

D34662

BLOCK

PLATE - pin retaining

2шт.

6

D34661

PIN

Hydra-leveling, Serial Range: cylinders-chassis

2шт.

7

D34660

PIN

Lift, Serial Range: cvlinder-chassis

2шт.

8

D34738

CYLINDER

Hydraulic, hydra-leveling (3" I.D. x 7-1/4" stroke), Parts list Figure 212

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

(NPT)

2шт.

10

D25279

SNAP RING,M35, Int

Pin retaining

4шт.

11

D34656

PIN,38.1mm OD x 101.6mm L

Hydra-leveling cylinder to lift frame

2шт.

12

D42738

CYLINDER ASSY.

Hydraulic, RH loader lift (3-1/2" I.D. x 31" stroke), Parts list Figure 208

1шт.

13

D34742

CYLINDER

Hydraulic, LH loader lift (3-1/2" I.D. x 31" stroke), Parts list Figure 208

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

(NPT)

2шт.

15

D25280

SNAP RING,#175, Ext

Pin

4шт.

16

D34658

PIN,44.45mm OD x 101.6mm L

Lift cylinders to lift frame

2шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

(NPT)

2шт.

18

D34664

RING

Pin retaining

2шт.

19

D34668

WASHER,52.39mm ID x 76.2mm OD x 3.57mm Thk

Special

2шт.

20

L13675

SPARE PART Lift frame pivot

2шт.

21

13-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

2шт.

22

131-10

NUT,1/2"-13, GB

2шт.

23

L26718

SPARE PART FRAME ASSEMBLY - loader lift (Replaces L13676) (L13676 IS A WASHER)

1шт.

ITEM 23 FRAME ASSEMBLY...SAME AS USED ON 680CK SERIES B...09JAN96...GLC

1шт.

24

D34506

BUSHING,51.02mm ID x 63.5mm OD x 63.5mm L

Lift frame at chassis

2шт.

25

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

Lift frame at hydra-leveling and dump cylinders

4шт.

26

D34354

BUSHING,44.68mm ID x 53.98mm OD x 38.1mm L

Lift frame at lift cylinder

2шт.

27

D30931

BUSHING,38.33mm ID x 47.63mm OD x 69.85mm L

Lift frame at dump linkage

2шт.

28

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

Lift frame at bucket

2шт.

29

13-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

2шт.

30

L13698

SPARE PART LEVER ASSEMBLY - dump, outer

2шт.

31

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

Lever

1шт.

32

D34653

PIN

Link spacer, upper

2шт.

33

L13971

SPARE PART LEVER ASSEMBLY - dump, LH inner

1шт.

34

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

Lever

1шт.

35

L13970

LEVER ASSEMBLY - dump, RH inner

1шт.

36

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

Lever

1шт.

37

230-41112

LOCK NUT,3/4"-10, GA

4шт.

38

219-1

LUBE NIPPLE,1/8" - 27 NPTF

(NPT)

2шт.

39

D34739

HYDRAULIC CYLINDER

RH loader dump (3" I.D. x 23-9/16", Parts list Figure 210

1шт.

40

D34740

HYDRAULIC CYLINDER

LH loader dump (3" I.D. x 23-9/16" stroke), Parts list Figure 210

1шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

(NPT)

2шт.

42

D25279

SNAP RING,M35, Int

Pin retaining

4шт.

43

D34656

PIN,38.1mm OD x 101.6mm L

Dump cylinder to lift frame

2шт.

44

D34651

LINK

ASSEMBLY - loader dump, RH

1шт.

45

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

Link, at dump lever

2шт.

46

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

Link, at bucket

1шт.

47

D34650

LINK

ASSEMBLY - loader, LH

1шт.

48

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

Link, at dump lever

2шт.

49

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

Link, at bucket

1шт.

50

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

(NPT)

2шт.

51

D25279

SNAP RING,M35, Int

Pin retaining

4шт.

52

D34654

PIN

Dump, Serial Range: link-bucket

2шт.

53

D26919

SNAP RING,#200, Ext

Pin

4шт.

54

D34655

PIN,50.8mm OD x 111.13mm L

Lift, Serial Range: frame-bucket

2шт.

55

REF

INSTRUCTION

BUCKET ASSEMBLY - loader (See page 144)

1шт.
