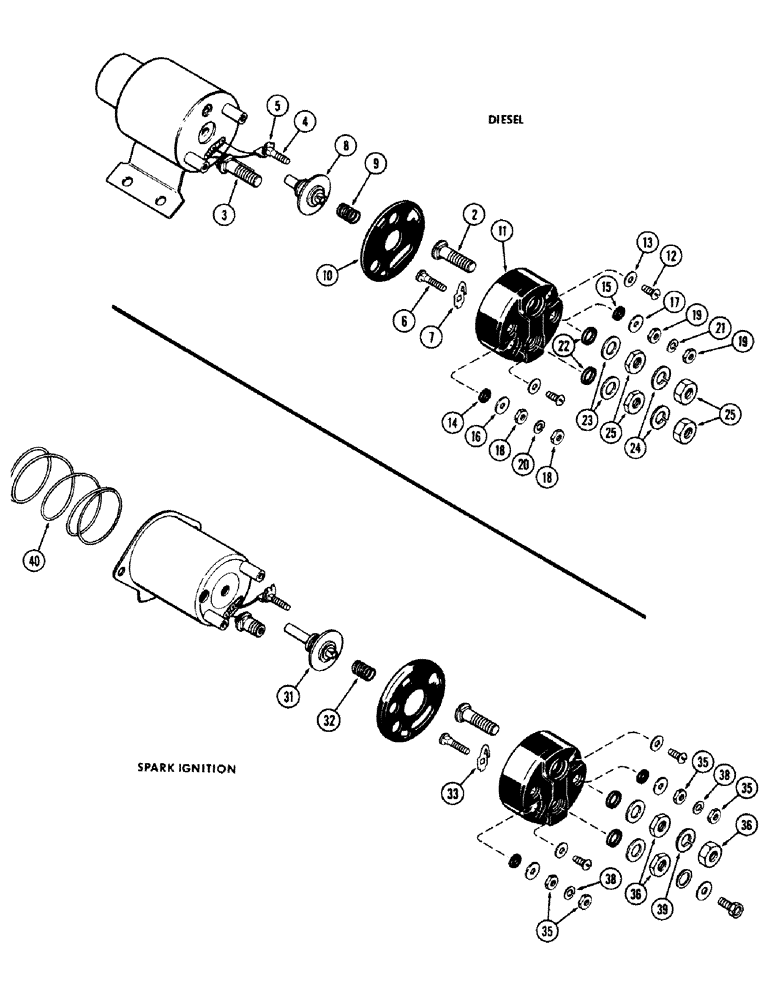

Запчасти Case 680CK (081A) - A40461 SOLENOID, (267) DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

A40461

IGNITION SWITCH

SOLENOID ASSY. (Delco-Remy #1115510)

1шт.

2

A42087

STUD

- battery terminal

1шт.

3

A42089

STUD

- starter terminal

1шт.

4

A42091

STUD - resistor terminal, #8-32 thread

1шт.

5

A42088

CLIP - resistor terminal

1шт.

6

A42090

TERMINAL CONNECTOR

STUD - switch terminal, #10-32 thread

1шт.

7

A42060

HALF BLADE

CONTACT - switch terminal stud

1шт.

8

A40692

CONTACT

ASSY

1шт.

9

A42059

SPRING

- contact return

1шт.

10

A42093

GASKET

- cover

1шт.

11

A42092

COVER

- solenoid contacts

2шт.

12

A42083

SCREW - cover

2шт.

13

D30018

WASHER - cover screw

2шт.

14

A42086

WASHER - insulation, #8 stud

1шт.

15

A42084

INSULATOR

WASHER - insulation, #10 stud

1шт.

16

A42082

WASHER - steel, #8 stud

1шт.

17

R16177

WASHER

- steel, #10 stud

1шт.

18

129-16

NUT,#8-32

Terminal #8-32

2шт.

19

129-77

NUT,Sq, #10-32

- terminal, #10-32 hex.

2шт.

20

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, , Terminal stud #8

1шт.

21

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Terminal stud #10

1шт.

22

A42085

BUSHING

WASHER - insulation, 3/8" studs

2шт.

23

R15013

WASHER

- steel, 3/8" studs

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Terminal stud 3/8"

2шт.

25

87016560

JAM NUT,Jam, 3/8"-16, G5

Terminal studs Jam, 3/8"-16, G5

4шт.

G44891

SOLENOID

ASSY. - (Delco-Remy #1114356) (See note), (251) spark ignition engine G44891 solenoid, (251) spark ignition engine G44891 solenoid

1шт.

31

A42061

SWITCH

CONTACT ASSY, (251) spark ignition engine G44891 solenoid

1шт.

32

A40221

SPRING

- plunger return, (251) spark ignition engine G44891 solenoid

1шт.

33

A42060

HALF BLADE

BLADE - contact, (251) spark ignition engine G44891 solenoid

1шт.

35

129-16

NUT,#8-32

Terminal, (251) spark ignition engine G44891 solenoid #8-32

4шт.

36

R15015

X

NUT - terminal, 3/8" N.C. hex., (251) spark ignition engine G44891 solenoid

3шт.

38

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, , Terminal, (251) spark ignition engine G44891 solenoid #8

2шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (251) Spark ignition engine G44891 solenoid 3/8"

1шт.

40

A42059

SPRING

- plunger return, (251) spark ignition engine G44891 solenoid

1шт.
