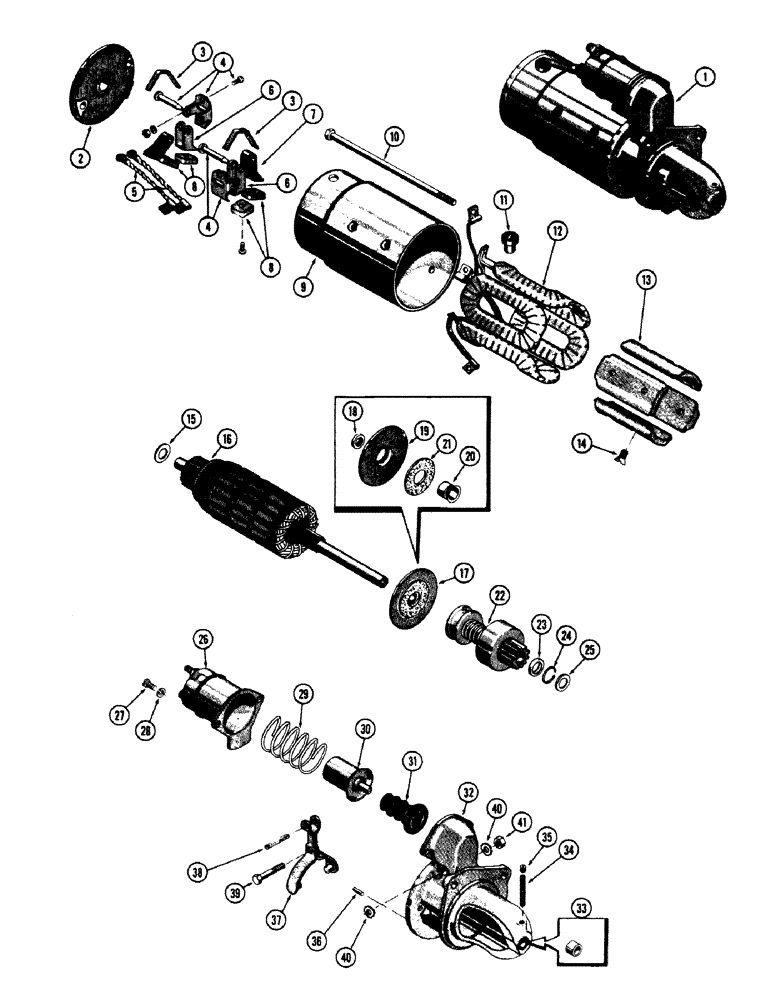

Запчасти Case 680CK (080) - A57092 STARTER, (251) SPARK IGNITION ENGINE (55) - ELECTRICAL SYSTEMS

1

A57092

X

STARTER ASSY. - (Delco-Remy #1108340)

1шт.

2

A25302

FUNNEL

FRAME ASSY. - commutator end

1шт.

3

A25359

SPRING

- brush

2шт.

4

A25379

KIT

HOLDER KIT - brush

1шт.

5

A25363

ELECTRICAL WIRE

LEAD - brush, ground wire

2шт.

6

A40217

HOLDER

- ground brush

2шт.

7

R15027

HOLDER

- insulated brush

2шт.

8

A20893

BRUSH

4шт.

9

NSS

NOT SOLD SEPARAT

FRAME - field (Order ref. 1)

1шт.

10

A41342

BOLT

- thru

2шт.

11

A41935

GROMMET

- field frame

1шт.

12

A41345

COIL ASSY.

- field

1шт.

13

A40747

SHOE - pole

4шт.

14

74-610

SCREW,3/8" - 24 x 5/8"

- pole shoes

8шт.

15

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- brake, comm. end

1шт.

16

A41343

ARMATURE

1шт.

17

A25549

PLATE

ASSY. - center brg.

1шт.

18

A25409

SEAL

SEAL - oil (3/4 x 1 x 1/8")

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE - center bearing

1шт.

20

A41933

BUSHING

- center bearing

1шт.

21

R15043

WASHER

GASKET - center bearing

1шт.

22

A41871

DRIVE

ASSY. - bendix

1шт.

23

R15049

COLLAR

- pinion stop

1шт.

24

R15048

RING

- snap, collar retaining

1шт.

25

A25385

WASHER

COLLAR - thrust, pinion stop

1шт.

26

G44891

SOLENOID

SWITCH ASSY. - solenoid (Repairs, Figure 81A)

1шт.

27

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

BOLT - switch to drive hsg.

2шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Switch bolt 1/4"

2шт.

29

A40221

SPRING

- plunger

1шт.

30

A40218

PLUNGER

- solenoid

1шт.

31

A25410

BOOT

- solenoid

1шт.

32

A41344

HOUSING ASSY. - drive end

1шт.

33

A25387

BEARING

BUSHING - (15/32 x 5/8 x 13/16")

1шт.

34

R15023

WICK

- oil

1шт.

35

221-1041

PLUG

- oil wick hole

1шт.

36

R15041

PIN - dowel, housing locating

1шт.

37

A40220

LEVER

- shifter

1шт.

38

138-93

LOCK PIN,3/16" x 13/16", Slotted

Pin, , shift lever to plunger 3/16" x 13/16", Slotted

1шт.

39

A40520

BOLT

BOLT - lever pivot

1шт.

40

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Pivot bolt (Ext. skpf.) 5/16"

2шт.

41

425-145

JAM NUT,Jam, 5/16"-18, G5

Pivot bolt Jam, 5/16"-18, G5

1шт.
