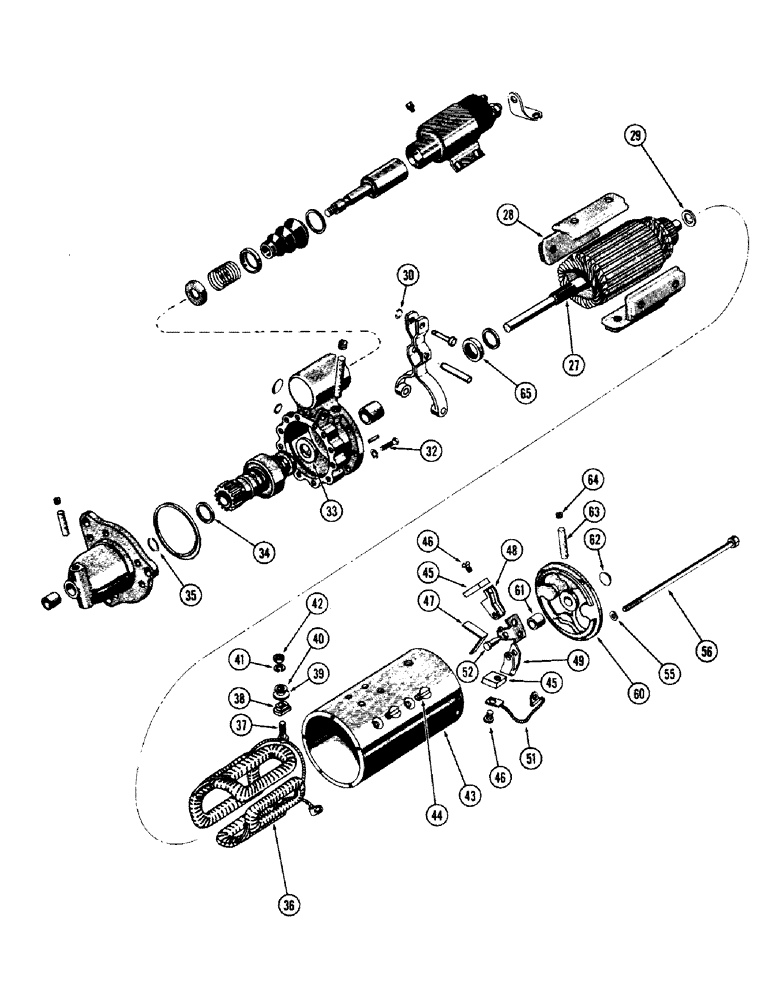

Запчасти Case 680CK (079A) - A21281 STARTER, (267) DIESEL ENGINE (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A21281
STARTING MOTOR
STARTER ASSY. - (Continued from Figure 78)
1шт.
27
A40800
ARMATURE
ASSY. - starter
1шт.
28
R15115
SHOE
- pole
4шт.
29
A41917
WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk
- spacer
1шт.
30
A25406
OIL SEAL
RING - lever pin
1шт.
32
113-111
BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5
Attach. lever & drive hsg. Hex, 5/16"-18 x 2 1/2", G5
4шт.
33
R15043
WASHER
- brake, lever hsg. & drive
1шт.
34
R15049
COLLAR
- pinion stop
1шт.
35
R15048
RING
- pinion stop retainer
1шт.
36
R21557
COIL ASSY.
- field, starter
1шт.
37
R15017
STUD
- terminal
1шт.
38
R15010
BUSHING
- terminal stud
1шт.
39
A42010
WASHER
- insulated, term. stud
1шт.
40
R15013
WASHER
- plain, term. stud
1шт.
41
192-21
LOCK WASHER,3/8"
WASHER, LOCK, , Terminal stud 3/8"
1шт.
42
R15014
NUT
- stud
1шт.
43
NSS
NOT SOLD SEPARAT
BODY - starter (Order A21281)
1шт.
44
74-610
SCREW,3/8" - 24 x 5/8"
- pole shoe
4шт.
45
A20897
BRUSH, COMMUTATOR
BRUSH - starter
4шт.
46
187-323
SCREW
- attaching, brush
4шт.
47
R15025
SPRING
- brush
2шт.
48
R21590
HOLDER
- insulated, brush
2шт.
49
A40217
HOLDER
- ground, brush
2шт.
R15029
BRUSH
KIT - replacement, brush holder
1шт.
51
R15030
ELECTRICAL WIRE
LEAD - ground, brush
2шт.
52
R15035
PIN
- brush holder
2шт.
175-449
SCREW,Phil Truss Hd, #10 - 32 x 3/4"
- brush holder support
2шт.
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
2шт.
R15032
X
NUT - support screw
2шт.
55
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, , thru bolt 5/16"
2шт.
56
A25373
BOLT
- thru, starter
2шт.
60
R15019
FUNNEL
END ASSY. - frame, commutator
1шт.
61
R15020
BUSHING
- end assy., commutator
1шт.
62
R15021
PLUG
- expansion, end frame
1шт.
63
R15023
WICK
- oil, end frame
1шт.
64
221-1041
PLUG
- pipe, end frame
1шт.
65
A25407
OIL SEAL
- oil, lever hsg.
1шт.
Выбрано товаров: 37
