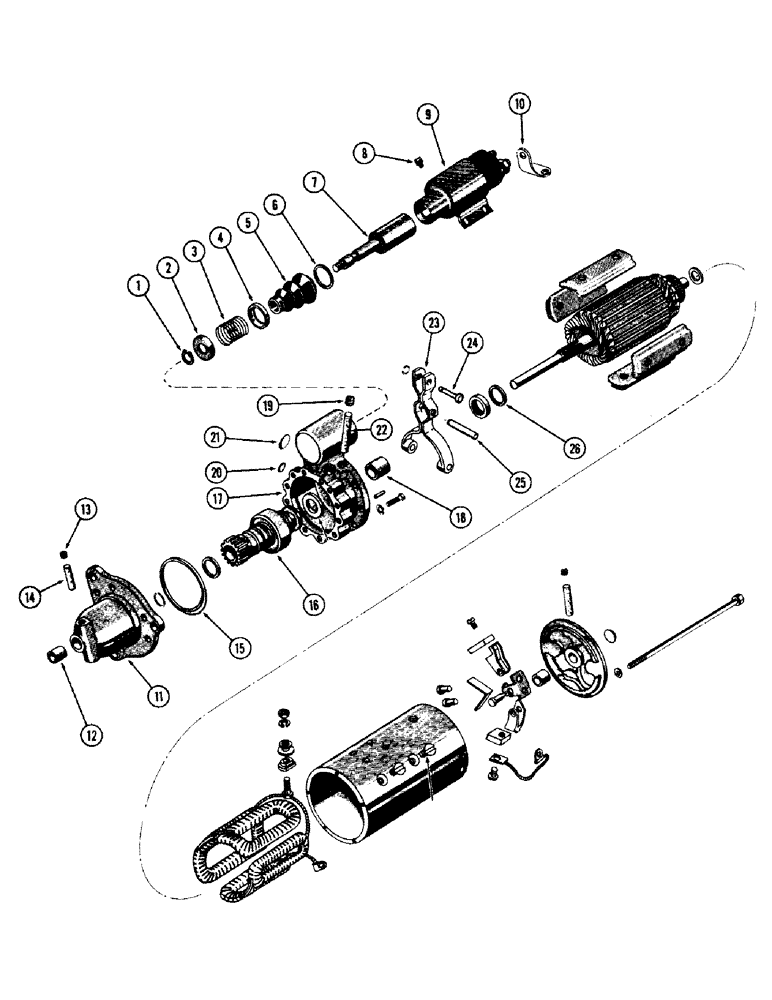

Запчасти Case 680CK (078) - A21281 STARTER, (267) DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

A21281

STARTING MOTOR

MOTOR ASSY. - starter (Delco-Remy #1113634)

1шт.

1

G46146

SNAP RING,#37, Ext

Ring, Snap, , starter spring #37, Ext

1шт.

2

R21571

RETAINER

RETAINER - plunger spring

1шт.

3

R21569

X

SPRING - return, plunger

1шт.

4

R21572

RETAINER

RETAINER - spring, plunger

1шт.

5

R21576

BOOT

BOOT - dust, switch

1шт.

6

A42008

WASHER

WASHER - retainer, spring

1шт.

7

A25394

PLUNGER

PLUNGER - switch, starter

1шт.

8

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

SCREW - attach., switch

4шт.

9

A40461

IGNITION SWITCH

SWITCH - solenoid, starter (Repairs, Figure 81A)

1шт.

10

A25370

CONNECTOR, ELEC

CONNECTOR CONNECTOR - switch

1шт.

11

A25347

SPARE PART HOUSING - drive, starter

1шт.

12

A40868

BUSHING

BUSHING - drive hsg.

1шт.

13

221-1041

PLUG

PLUG - pipe, hsg.

1шт.

14

R15023

WICK

WICK - oil, drive hsg.

1шт.

15

A41508

GASKET

GASKET - drive hsg. to lever hsg.

1шт.

16

A25338

DRIVE

DRIVE ASSY. - starter

1шт.

16

87421542

REMAN-STARTER DRIVE

Drive Assy, Starter

1шт.

16

87421543

CORE-STARTER

Return Part Number

1шт.

17

A25405

HOUSING

HOUSING - starter lever

1шт.

18

A40944

BUSHING

BUSHING - lever hsg.

1шт.

19

221-1041

PLUG

PLUG - pipe, lever hsg.

1шт.

20

A42009

SPARE PART PLUG - expansion, lever hsg. (1/2" dia.)

1шт.

21

A42013

PLUG

PLUG - expansion, lvr. hsg. (1-3/16" dia.)

1шт.

22

A41417

WICK

WICK - oil, lever hsg.

1шт.

23

A25398

LEVER

LEVER - shift, starter

1шт.

24

A25400

PIN

PIN - lever, starter shifter

1шт.

25

A25402

STUD

STUD - lever, starter shift

1шт.

26

A42202

WASHER

WASHER - spacer, lever hsg. & armature

1шт.
