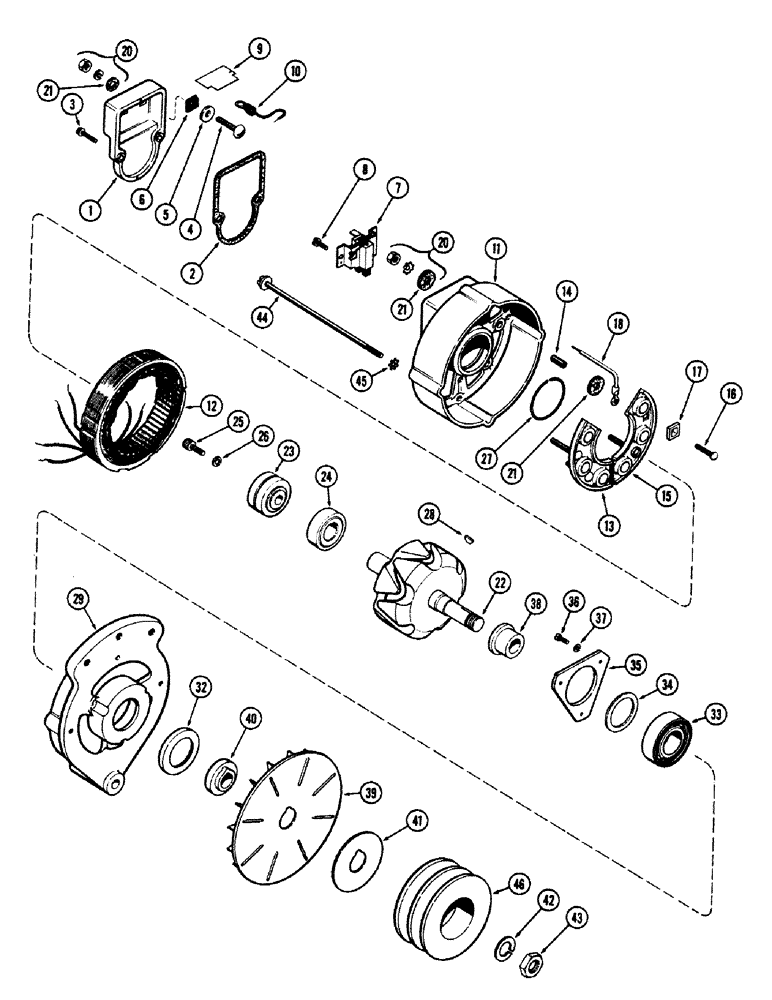

Запчасти Case 680CK (076) - ALTERNATOR (55) - ELECTRICAL SYSTEMS

A41340

ALTERNATOR

ASSY (Motorola MH12N-601)

1шт.

A167152

ALTERNATOR

ALTERNATOR - 24 Volt 40 AMP

1шт.

104260A1R

REMAN-ALTERNATOR

Remanufactured 24 VOLT, 40 AMP Alternator

1шт.

104260A1C

CORE-ALTERNATOR

Return Number, 24 VOLT, 40 AMP Alternator

1шт.

A187916

ALTERNATOR,24V, 45A

Alternator, 24V, 65 Amp

1шт.

A187916GV

ALTERNATOR

Value

1шт.

AR187916

REMAN-ALTERNATOR

45A 24V

1шт.

AC187916

CORE-ALTERNATOR

Return Number

1шт.

1

A41435

COVER ASSY

Rear housing

1шт.

2

A41341

GASKET

, Serial Range: Cover-body

1шт.

3

187-482

SPARE PART Cover, #8 x 3/4" hex., self-tapping

2шт.

4

A41036

SCREW

Field wire, #10-24 rd. hd.

1шт.

5

G49045

WASHER

(17/64 x 39/64 x 16 Ga.)

1шт.

6

A41041

INSULATOR

Brush

1шт.

7

A41048

BRUSH, COMMUTATOR

BRUSH HOLDER ASSY

1шт.

8

187-480

SCREW,Hex Hd, #8 x 1/2"

Brush holder, self-tapping

2шт.

9

A41042

INSULATOR

Brush, shunt lead

1шт.

10

A41046

ELECTRICAL WIRE

WIRE CABLE - internal field

1шт.

11

A41045

COVER

HOUSING - rear

1шт.

12

A41327

ARMATURE

STATOR ASSY.

1шт.

13

A41056

DIODE

ASSY, negative, black

1шт.

14

A41040

INSULATOR

Nylon (13/64 x 17/64 x 68") (Cut as req.)

2шт.

15

A41438

DIODE

ASSY, positive, red

1шт.

16

A41436

SCREW

STUD - rectifier ring

1шт.

17

A41041

INSULATOR

Rectifier stud

1шт.

18

A41432

CABLE PULLING GRIP

Phase tap

1шт.

20

A41060

LOCK NUT

PACKAGE

1шт.

21

A41038

WASHER

(12/64 x 3/4 x 1/16")

7шт.

22

A41033

IMPELLER

ROTOR ASSY

1шт.

23

A41032

SLIP RING

SLIP RING

1шт.

24

A42076

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

Sealed (21/32 x 1-37/64 x 15/32") (Replaces A41439)

1шт.

REF #24 ANOTHER BEARING USED (NOT A SUB) 10/31/96

1шт.

25

163-4

SCREW,Hex, #10 - 32 x 5/8"

1шт.

26

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

1шт.

27

A41049

RUBBER SEAL

RETAINER - rear bearing

1шт.

28

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

29

A41437

HOUSING

Front

1шт.

32

A41047

SEAL ASSY.

Bearing, front housing

1шт.

33

A41054

X

BEARING - sealed, front (63/64 x 2-3/64 x 19/32")

1шт.

34

A41039

RETAINER

WASHER - ( 1-1/4 x 1-5/8 x 3/32")

1шт.

35

A41050

SPARE PART Front bearing

1шт.

36

182-84

SCREW,Slotted Pan Hd, #8-32 x 3/8"

3шт.

37

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

3шт.

38

A41052

SLEEVE

Shaft

1шт.

39

A41058

X

FAN - alternator

1шт.

40

A41053

SPARE PART Fan

1шт.

41

A41051

SPACER

Pulley

1шт.

42

192-25

LOCK WASHER,5/8"

1шт.

43

A41035

NUT

Pulley retaining, 5/8"-18 hex.

1шт.

44

A41037

BOLT

Rear housing

4шт.

45

193-41

WASHER,Ext-Int Tooth, #8

LOCK

4шт.

46

A41057

PULLEY

Alternator

1шт.
