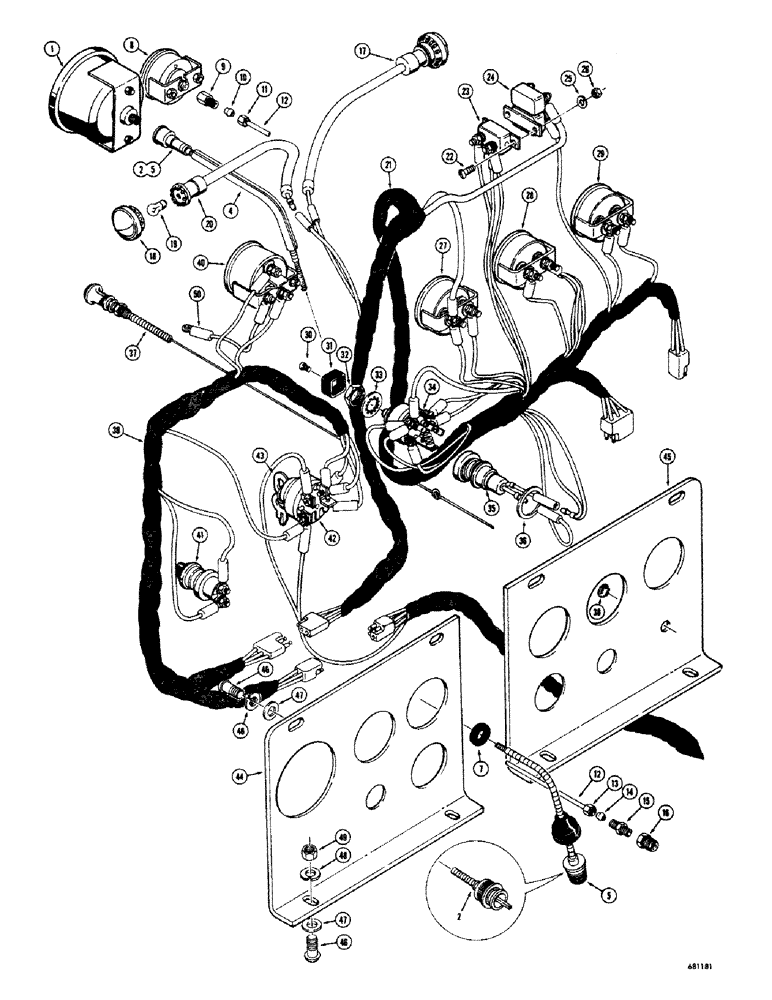

Запчасти Case 680CK (074) - INSTRUMENT PANEL (55) - ELECTRICAL SYSTEMS

1

A11190

TACHOMETER

- engine speed (R.P.M.)

1шт.

2

L11632

CABLE

- tachometer (Used with spark ignition engine only)

1шт.

3

A24523

KIT

CABLE KIT - tachometer drive (Not illustrated)

1шт.

4

A19127

LOOM - tachometer cable (Used with L11632 cable only)

1шт.

5

L11334

CABLE

- tachometer (Used with diesel engine only)

1шт.

6

A24523

KIT

CABLE KIT - tachometer drive (Not illustrated)

1шт.

7

A7808

GROMMET

- tachometer cable at fire wall

1шт.

8

A56447

ELECTRICAL GAUGE

GAUGE - clutch oil pressure

1шт.

222-681

FITTING,5/16"-24 x 1/8" NPT Fem, Comp

COUPLING ASSEMBLY - female (1/8" tube O.D.)

1шт.

9

NSS

NOT SOLD SEPARAT

COUPLING - female

1шт.

10

222-100

TUBE NUT,1/8" Tube

SLEEVE - coupling

1шт.

11

222-110

TUBE NUT,3/8"-24

NUT - coupling

1шт.

12

L11335

TUBE,60" L

- clutch oil pressure gauge to forward and reverse transmission housing

1шт.

222-600

FITTING,5/16"-24 x 1/8 NPT, Comp

CONNECTOR ASSEMBLY - male (1/8" tube O.D.)

1шт.

13

222-110

TUBE NUT,3/8"-24

NUT - connector

1шт.

14

222-100

TUBE NUT,1/8" Tube

SLEEVE - connector

1шт.

15

NSS

NOT SOLD SEPARAT

CONNECTOR - male

1шт.

16

221-1051

REDUCER,Hex, 1/4" x 1/8" NPT

REDUCING BUSHING - hex., pipe (1/4" x 1/8" NPT)

1шт.

17

L11347

LIGHT

ASSEMBLY - instrument panel

2шт.

18

L30467

LENS

- light

1шт.

19

L30466

LAMP

BULB - light

1шт.

20

L30509

SOCKET

- light

1шт.

21

L11346

HARNESS - wiring, L.H. instrument panel

1шт.

22

173-262

X

RHMS - #8 - 32 NC x 5/8" (Zinc plated)

2шт.

23

L11342

BREAKER

CIRCUIT BREAKER - electrical, 25 amp

1шт.

24

L11343

BREAKER

CIRCUIT BREAKER - electrical, 60 amp

1шт.

25

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

26

129-16

NUT,#8-32

2шт.

27

A55699

ELECTRICAL GAUGE

GAUGE - ammeter, alternator amperage

1шт.

28

A19347

ELECTRICAL GAUGE

GAUGE - engine water temperature

1шт.

29

A19346

ELECTRICAL GAUGE

GAUGE - engine oil pressure

1шт.

L10376

SWITCH

ASSEMBLY - lights

1шт.

30

A20468

SCREW,Spcl, #8 - 32 x 5/16"

- special

1шт.

31

A20465

KNOB

- switch

1шт.

32

A20467

NUT

- special

1шт.

33

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - lock, internal tooth (5/8")

1шт.

34

NSS

NOT SOLD SEPARAT

SWITCH - lights

1шт.

35

L11344

WARNING LIGHT

- engine, low or no oil pressure or high coolant temperature

1шт.

36

L11345

GASKET

- warning light

1шт.

37

A36578

ROD

CHOKE - hand, carburetor control (Used on models with spark ignition engine only)

1шт.

38

205-17

PLUG - button type, 1/2" dia. (Used in lieu of choke)

1шт.

39

L11333

HARNESS - wiring, R.H. instrument panel

1шт.

40

A13756

GAUGE

- torque converter oil temperature

1шт.

41

D34924

SWITCH

- starter, push button

1шт.

L17820

SWITCH

AND KEY - electrical (Replaces A11373)

1шт.

NOTE:ANOTHER SWITCH AND KEY USED(NOT A SUB) 10/31/96

1шт.

42

NSS

NOT SOLD SEPARAT

SWITCH - electrical

1шт.

43

A20346

KEY

- switch, ignition

1шт.

44

L11331

PANEL - instrument, R.H.

1шт.

45

L11337

PANEL - instrument, L.H.

1шт.

46

173-214

SCREW,Phil Rnd Hd, 1/4" - 20 x 3/4"

RHMS - 1/4" - 20 NC x 3/4" (Phillips head) Zinc plated

8шт.

47

195-518

WASHER,1/4", SAE

- plain (1/4") Zinc plated

8шт.

48

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

49

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

50

A18311

ELECTRICAL WIRE

WIRE - ground

1шт.
