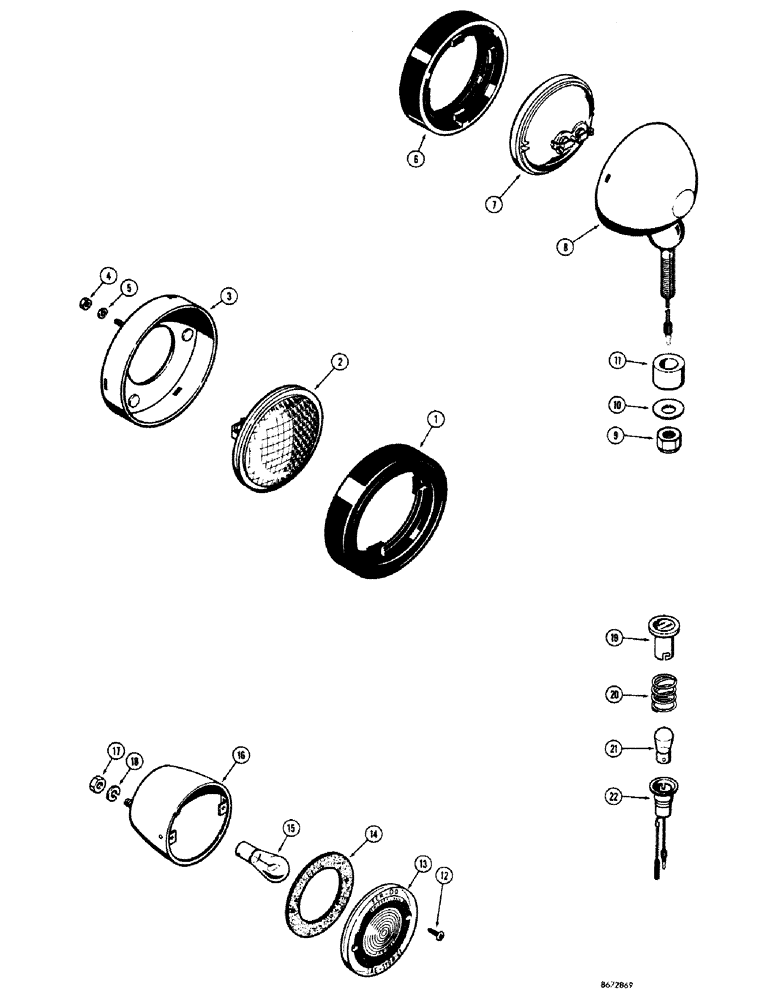

Запчасти Case 680CK (072) - D30243 HEADLIGHT (55) - ELECTRICAL SYSTEMS

D30243

LAMP

HEADLIGHT ASSEMBLY - front

2шт.

1

A25213

RETAINER

- light (Used only in Hobbs assembly)

1шт.

1

D31441

RETAINER

- light (Used only in Guide Lamp assembly)

1шт.

2

D33182

LAMP

LIGHT - sealed beam

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - light

1шт.

4

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC)

6шт.

5

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

6шт.

L11357

LIGHT

ASSEMBLY - rear,L11357

2шт.

6

A25213

RETAINER

- light, L11357 rear

1шт.

7

L30464

BULB

LIGHT - sealed beam, L11357 rear

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - light, L11357 rear

1шт.

9

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex., lock (1/2" - 20 NF), L11357 rear light

1шт.

10

D37049

WASHER

- mounting, L11357 rear light

1шт.

11

D37048

BUSHING

- pilot, L11357 rear light

1шт.

L10741

STOP LIGHT

LIGHT ASSEMBLY - stop and tail, L10741 taillight

2шт.

12

187-1020

SCREW,Cross Hd, #8 x 3/4"

- self-tapping, #8 - 32 NC x 3/4", L10741 stop and taillight

2шт.

13

L30427

X

LENS - light, L10741 stop and taillight

1шт.

14

A40862

GASKET - light, L10741 stop and taillight

1шт.

15

R11078

LAMP

BULB - light, L10741 stop and taillight

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - light, L10741 stop and taillight

1шт.

17

25-104

NUT,1/4"-20, G5

L10741 Stop and tail light 1/4"-20, G5

4шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , L10741 Stop and tail light 1/4"

4шт.

L11344

WARNING LIGHT

LIGHT ASSEMBLY - engine warning, low or no oil pressure or high coolant temperature, L11344

2шт.

19

L30504

LENS

- light, L11344 engine warning light

1шт.

20

L30505

VALVE SPRING

SPRING - light, L11344 engine warning

1шт.

21

45490

LIGHT

BULB - light, L11344 engine warning

1шт.

22

NSS

NOT SOLD SEPARAT

SOCKET - light base, L11344 engine warning

1шт.
