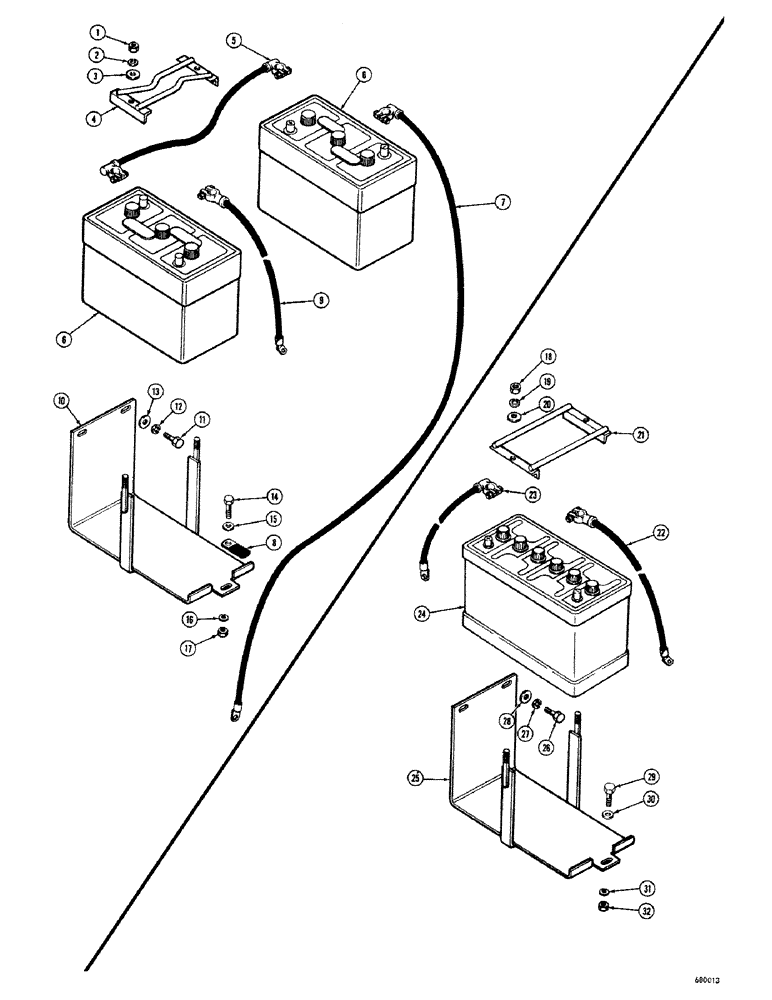

Запчасти Case 680CK (070) - BATTERIES AND CABLES, (267) DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

1

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

2

92-6

LOCK WASHER,3/8"

4шт.

3

195-22

WASHER

- plain (3/8")

4шт.

4

L11364

FRAME - battery holddown (When stock is exhausted, order 2 - L15283 frames for service)

2шт.

L15283

FUNNEL

FRAME - battery holddown

4шт.

5

A18926

CABLE

- battery, jumper

1шт.

6

M20396

BATTERY - electrical, 6 volt

2шт.

7

L11362

CABLE - battery, ground

1шт.

8

A22880

CLIP

CLAMP - ground cable

1шт.

9

A27987

CABLE

- battery, to starter solenoid

1шт.

10

L11059

BATTERY TRAY

TRAY - battery

2шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

195-25

WASHER,3/8"

- plain () 3/8"

4шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

15

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

18

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), (251) spark ignition engine

2шт.

19

92-6

LOCK WASHER,3/8"

(251) spark ignition engine 3/8"

2шт.

20

195-22

WASHER

- plain (3/8"), (251) spark ignition engine

2шт.

21

L11359

FRAME - battery holddown (When stock is exhausted, order 2 - L15283 frames for service)

1шт.

L15283

FUNNEL

FRAME - battery holddown, (251) spark ignition engine

2шт.

22

L11362

CABLE - battery, ground, (251) spark ignition engine

1шт.

23

A27987

CABLE

- battery, to starter solenoid, (251) spark ignition engine

1шт.

24

M20393

X

BATTERY - electrical, 12 volt, (251) spark ignition engine

1шт.

25

L11059

BATTERY TRAY

TRAY - battery, (251) spark ignition engine

1шт.

26

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(251) Spark ignition engine Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

27

92-6

LOCK WASHER,3/8"

(251) spark ignition engine 3/8"

2шт.

28

195-25

WASHER,3/8"

- plain (), (251) spark ignition engine 3/8"

2шт.

29

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(251) spark ignition engine Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

30

195-25

WASHER,3/8"

- plain (), (251) spark ignition engine 3/8"

1шт.

31

92-6

LOCK WASHER,3/8"

(251) spark ignition engine 3/8"

1шт.

32

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), (251) spark ignition engine

1шт.
