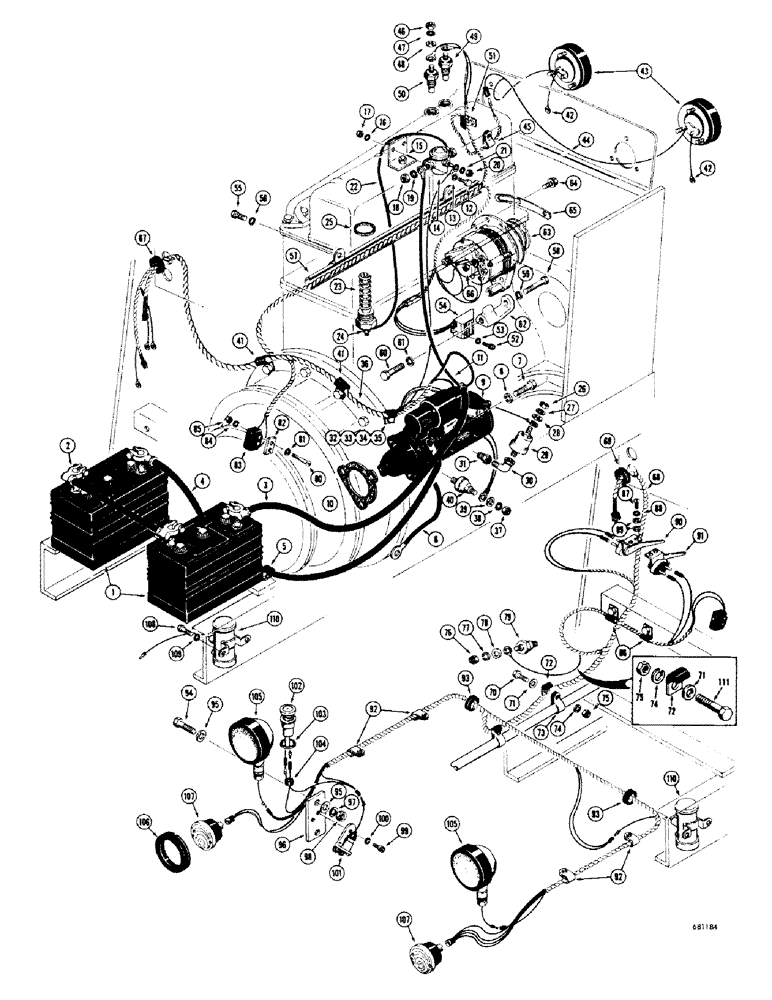

Запчасти Case 680CK (062) - ELECTRICAL SYSTEM, (267) DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

1

M20396

SPARE PART BATTERY - dry type, 6 volt, See Figure 70 for related parts

2шт.

2

A18926

CABLE

CABLE - jumper (18" long)

1шт.

3

L11362

SPARE PART CABLE - battery, negative terminal to starter (48" long)

1шт.

4

A27987

CABLE

CABLE - battery, positive, Serial Range: terminal-solenoid

1шт.

5

A22880

CLIP

CLIP - harness

1шт.

6

L11363

CABLE - ground (15" long)

1шт.

7

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

BOLT, Hex, 1/2"-13 x 2 3/4", G5

1шт.

7

A10009

SCREW,Stud, Hex, 1/2" - 13 x 1 1/4", Nylon Insert

BOLT - special

2шт.

8

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

3шт.

9

A21281

STARTING MOTOR

STARTER - engine, Parts list Figure 78

1шт.

10

A27933

GASKET

GASKET - starter

1шт.

11

A21483

CABLE

CABLE - starter to solenoid (20" long)

1шт.

12

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

13

195-518

WASHER,1/4", SAE

WASHER - plain (1/4") Zinc plated

2шт.

14

A57069

SOLENOID

SOLENOID - manifold heater, 12 volt

1шт.

15

L11520

SPARE PART BRACKET - solenoid mounting

1шт.

16

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

17

7770

NUT,Hex, 1/4 - 20, Cl 5

NUT, 1/4"-20, G5

2шт.

18

25-115

NUT,5/16"-24, G5

NUT - hex (5/16"-24 NF)

2шт.

19

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

2шт.

20

129-27

NUT,Hex, #10 - 32

NUT - Hex. (#10 - 32 NF)

1шт.

21

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

22

A24093

CABLE PULLING GRIP

CABLE - solenoid to heater (20" long)

1шт.

23

A37775

HEATER

HEATER - manifold

1шт.

24

129-503

NUT,1/4"-20, Brass

NUT, 1/4"-20, Brass

1шт.

25

A20916

MANIFOLD GASKET

GASKET - manifold heater

1шт.

26

129-37

NUT,#10-32

NUT, #10-32

1шт.

27

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

28

195-512

WASHER,#10

WASHER - plain () Zinc plated #10

1шт.

29

A35031

SENDER UNIT

SENDER SENDING UNIT - engine oil pressure gauge

1шт.

30

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

ELBOW - street, 90 degrees (Galvanized)

1шт.

31

221-1052

PLUG

BUSHING - hex., reducing (3/8" x 1/8")

1шт.

32

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

33

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

34

195-25

WASHER,3/8"

WASHER - plain () 3/8"

1шт.

35

A22880

CLIP

CLIP - harness

1шт.

36

L11348

SPARE PART HARNESS - front main wiring

1шт.

37

129-37

NUT,#10-32

NUT, #10-32

1шт.

38

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

39

195-512

WASHER,#10

WASHER - plain () Zinc plated #10

1шт.

40

A13794

TRANSMITTER

SENDING UNIT - oil pressure indicator light

1шт.

41

A22880

CLIP

CLIP - harness

2шт.

42

A15941

ELECTRICAL WIRE

WIRE WIRE - ground, headlight

2шт.

43

D30243

LAMP

HEADLIGHT ASSEMBLY - 12 volt, Parts list Figure 72

2шт.

44

L11352

ELECTRICAL WIRE

WIRE WIRE - headlight connecting

1шт.

45

A7922

CLIP

CLIP - mounting

1шт.

46

129-16

NUT,#8-32

NUT, #8-32

2шт.

47

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

48

195-509

WASHER,3/16"

WASHER - plain (#8) Zinc plated

2шт.

49

A21462

SENDER UNIT

SENDER SENDING UNIT - water temperature gauge

1шт.

50

L11350

SENDER UNIT

SENDING UNIT - water temperature indicator light

1шт.

51

A22880

CLIP

CLIP - harness

1шт.

52

165-20

HEX SOC SCREW,#10 - 24 x 3/8"

CAP SCREW - hex. socket head (#10 - 24 NC x 3/8")

3шт.

53

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

54

L11351

REGULATOR

SPARE PART REGULATOR - voltage

1шт.

55

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

BOLT, Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

56

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

2шт.

57

A7532

SPARE PART CONDUIT - wire

1шт.

58

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

HHCS - 3/8" - 16 NC x 3-1/4"

1шт.

59

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

60

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

BOLT, Hex, 3/4"-10 x 2 3/4", G5

1шт.

61

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

62

A34704

BRACKET

BRACKET - alternator mounting

1шт.

63

A41340

ALTERNATOR

ALTERNATOR - electrical, 55 amp., Parts list Figure 76

1шт.

A167152

ALTERNATOR

ALTERNATOR - 24 Volt 40 AMP

1шт.

104260A1R

REMAN-ALTERNATOR

Remanufactured 24 VOLT, 40 AMP Alternator

1шт.

104260A1C

CORE-ALTERNATOR

Return Number, 24 VOLT, 40 AMP Alternator

1шт.

64

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

SCREW AND LOCKWASHER - 5/16" - 18 NC x 3/4"

1шт.

65

A34705

ADJUSTER

STRAP - alternator adjusting

1шт.

66

129-17

NUT,Hex, #10 - 24

NUT - hex., #10 - 24 NC (Zinc plated)

3шт.

67

A7808

GROMMET

GROMMET - rubber

1шт.

68

L11355

SPARE PART HARNESS - wire, rear

1шт.

69

A7808

GROMMET

GROMMET - rubber

1шт.

70

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

71

195-521

WASHER,5/16", SAE

WASHER - plain (5/16") Zinc plated

3шт.

72

A22880

CLIP

CLIP - harness

3шт.

73

49789

CLAMP

SPARE PART CLAMP - backhoe return tube

2шт.

74

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

75

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

3шт.

76

129-37

NUT,#10-32

NUT, #10-32

1шт.

77

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

78

195-512

WASHER,#10

WASHER - plain () Zinc plated #10

1шт.

79

A13795

SENDER UNIT

SENDER SENDING UNIT - converter temperature gauge

1шт.

80

173-69

RHMS - #6 - 32 NC x 1-1/2"

2шт.

81

195-6

WASHER,#6

WASHER - plain () #6

2шт.

82

L11524

SPARE PART SPACER - neutral starting switch

1шт.

83

L11349

SWITCH

SWICH - neutral starting

1шт.

REF#83 ROLLER TYPE L54683 10/31/96

1шт.

84

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

2шт.

85

129-5

NUT,#6-32

NUT, #6-32

2шт.

86

A22880

CLIP

CLIP - harness

2шт.

87

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

RHMS - #10 - 32 NF x 1/2" (Zinc plated)

4шт.

88

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

89

195-512

WASHER,#10

WASHER - plain () Zinc plated #10

8шт.

90

A33977

SWITCH

SWITCH - stop light, L.H.

1шт.

91

A33976

SWITCH

SWITCH - stop light, R.H.

1шт.

92

A10852

SPARE PART CLIP - floor support bolt

4шт.

93

A7808

GROMMET

GROMMET - rubber

2шт.

94

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

2шт.

95

95-6

WASHER,3/8"

WASHER - standard wrot () 3/8"

4шт.

96

L11544

PLATE - mounting, receptacle

1шт.

97

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

98

25-106

NUT,3/8"-16, G5

NUT - hex. (3/8" - 16 NC)

2шт.

99

165-20

HEX SOC SCREW,#10 - 24 x 3/8"

CAP SCREW - hex. socket head (#10 - 24 NC x 3/8")

2шт.

100

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

101

A8170

SOCKET

RECEPTACLE - connector

1шт.

102

L11344

WARNING LIGHT

LIGHT - engine warning, Parts list Figure 72

1шт.

103

L11345

GASKET

GASKET - light, engine warning

1шт.

104

A17599

GROMMET,1/4" ID x 7/16" Groove Dia

GROMMET - light, engine warning

1шт.

105

L11357

LIGHT

REAR LIGHT ASSEMBLY - 12 volt, Parts light Figure 72

2шт.

106

L11521

MOLDING - stop light

2шт.

107

L10741

STOP LIGHT

STOP AND TAILLIGHT - 12 volt, Parts light Figure 72

2шт.

108

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

109

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

110

L11122

FUEL PUMP

PUMP ASSEMBLY - fuel, Parts list Figure 28

1шт.

111

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

1шт.
