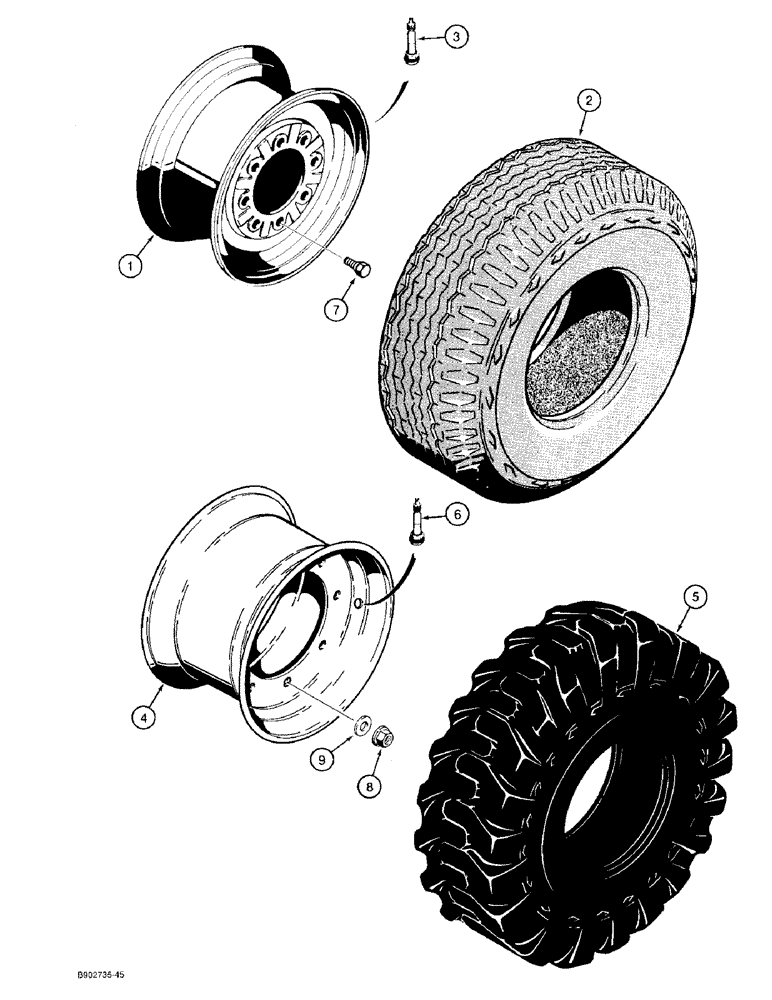

Запчасти Case 580SK (5-20) - FRONT WHEELS AND TIRES, FOR TWO WHEEL OR 4 WHEEL DRIVE MODELS (05) - STEERING

1

D125223

WHEEL,W8Lx16, 8 Holes, CASE Power Tan

rim, for 11L x 16 - 10 PR F3 tires 2WD Models

2шт.

2

REF

INSTRUCTION

TIRE front, purchase locally, for 11L x 16 - 10 PR F3 tires two wheel drive models

2шт.

CONSULT YOUR PARTS BUYER'S GUIDE FOR APPLICABLE TIRE PROGRAMS CURRENTLY BEING OFFERED.

1шт.

3

A38261

VALVE

STEM valve, wheel, for 11L x 16 - 10 PR F3 tires two wheel drive models

2шт.

4

D126930

RIM

WHEEL rim, 8-hole pattern , for 12 x 16.5 - 8 PR tires four wheel drive models

2шт.

5

REF

INSTRUCTION

TIRE front, purchase locally, for 12 x 16.5 - 8 PR tires four wheel drive models

2шт.

CONSULT YOUR PARTS BUYER'S GUIDE FOR APPLICABLE TIRE PROGRAMS CURRENTLY BEING OFFERED.

1шт.

6

A38261

VALVE

STEM valve, wheel, for 12 x 16.5 - 8 PR tires four wheel drive models

2шт.

7

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

Retaining, 2WD models

16шт.

8

K395089

WHEEL NUT

hex, wheel retaining, wheel nuts four wheel drive models

16шт.

9

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

flat, 25/32 x 1-3/8 x 1/8 inch, hardened, wheel nuts four wheel drive models

16шт.
