(5-14) - STEERING CYLINDER, TWO WHEEL DRIVE FRONT AXLE

Запчасти Case 580SK (5-14) - STEERING CYLINDER, TWO WHEEL DRIVE FRONT AXLE (05) - STEERING

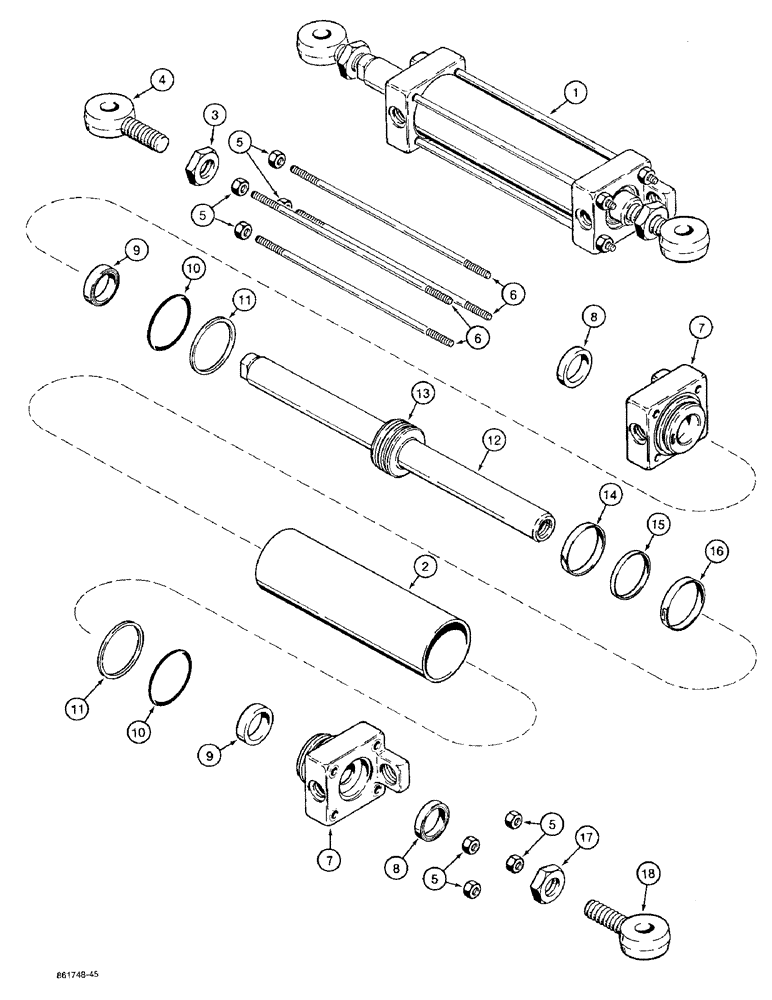

Схема запчастей Case 580SK - (5-14) - STEERING CYLINDER, TWO WHEEL DRIVE FRONT AXLE (05) - STEERING
17
5
11
1
6
12
7
9
10
8
2
15
6
18
4
3
5
5
7
16
10
14
13
9
11
8
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

G107720

CYLINDER,Double Acting, 38.1mm Rod, 85.1mm Stroke

ASSEMBLY, 2-3/4, 70, ID x 6-45/64 inch, 170 mm, stroke, steering, two-wheel drive front axle, Includes: Ref. 2 through 18

1шт.

1

G107720R

REMAN-HYD CYLINDER

580SK - 2WD

1шт.

1

G107720C

CORE-HYD CYLINDER

Return Number

1шт.

2

G106808

TUBE,69.85 mm ID x 79.76 mm OD x 233.60 mm L

cylinder

1шт.

3

129-369

JAM NUT,Jam, 7/8"-14, G5

LH thread Jam, 7/8"-14, G5

1шт.

4

G106832

BALL JOINT

EYE rod, left-hand thread

1шт.

5

425-106

NUT,3/8"-16, Cl 5

8шт.

6

G106817

TIE-ROD

ROD tie, 13-5/16 inch, 338 mm long, cylinder

4шт.

G109996

GLAND

ASSEMBLY cylinder, no longer available, order Ref. 7, G106810 gland and G110045 seal kit, Includes: Ref. 7 through 11

2шт.

7

G106810

CYLINDER END CAP,50.83mm Bore, 38.25mm Rod, 102mm W

GLAND cylinder

1шт.

8

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod, outer

1шт.

Part of seal kit P/N G110045.

1шт.

9

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

U-cup, with O-ring, piston rod, wide

1шт.

Part of seal kit P/N G110045.

1шт.

10

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

Gland (Replaces A28318) -230, 70 Duro, 2.484" ID x .139" Thk

1шт.

Part of seal kit P/N G110045.

1шт.

11

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of seal kit P/N G110045.

1шт.

G107721

ROD ASSY.

ROD ASSEMBLY piston, 1-1/2 inch, 38 mm, diameter, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

ROD piston

1шт.

13

NSS

NOT SOLD SEPARAT

PISTON cylinder

1шт.

14

G105187

RING

wear, piston

1шт.

Part of seal kit P/N G110045.

1шт.

15

G104439

RING

seal, inner

1шт.

Part of seal kit P/N G110045.

1шт.

16

G104454

SEALING RING,Locking, 65.89mm ID x 71.02mm OD x 6.96mm Thk

expandable, outer, piston

1шт.

Part of seal kit P/N G110045.

1шт.

17

425-1514

JAM NUT,Jam, 7/8"-14, G5

hex, jam, 7/8 inch NF

1шт.

18

G106813

BALL JOINT

EYE rod, right-hand thread

1шт.

G110045

KIT

seal, Includes: Ref. 8 - 11 and 14 - 16

1шт.
