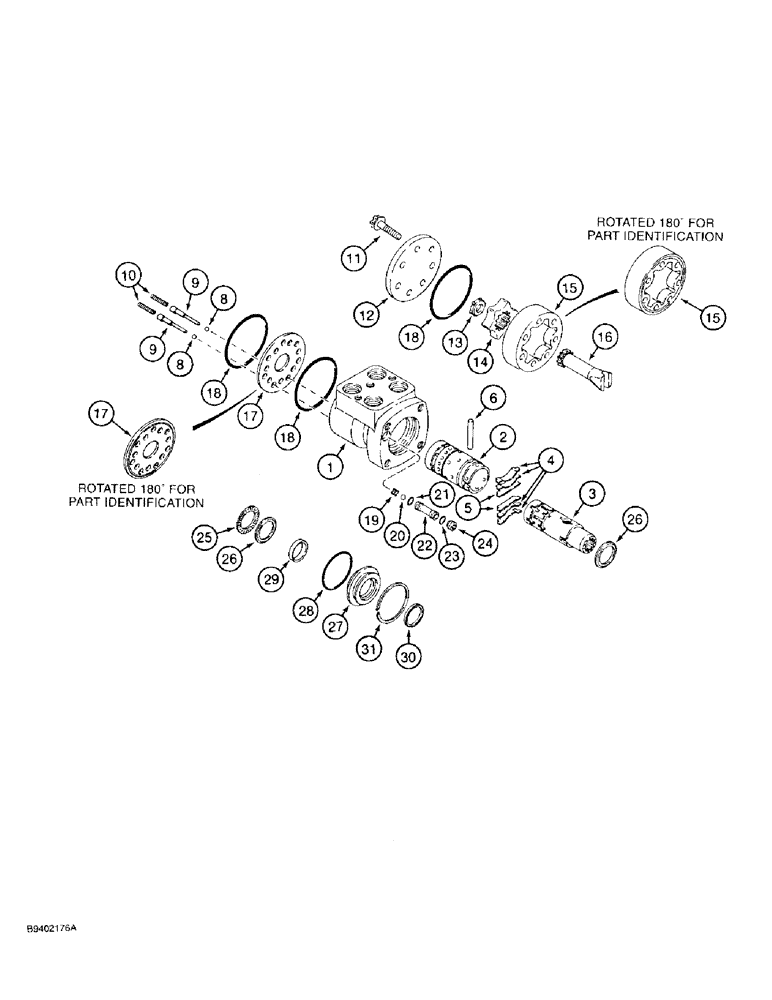

Запчасти Case 580SK (5-13A) - STEERING CONTROL VALVE (05) - STEERING

135999A1

PUMP, HYDRAULIC

VALVE ASSEMBLY steering control, Eaton No. 263-1146-002, Includes: Ref. 1 through 31

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE control valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL control valve

1шт.

N14250

KIT

centering spring, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING centering, six in kit

4шт.

5

NSS

NOT SOLD SEPARAT

SPACER spring

2шт.

6

L30888

PIN

centering

1шт.

8

211-204

BALL

3/16 inch, grade 25, chrome alloy steel, anticavitation

2шт.

9

136494A1

PLUG

RETAINER spring, anticavitation

2шт.

10

N14763

SPRING

anticavitation

2шт.

11

136586A1

SCREW,6 Pt, Torx Hd, 5/16" - 24 x 1 3/4"

BOLT Torx head, 6 point, 5/16 NF x 1-3/4 inch

7шт.

12

135867A1

CAP

end, without O-ring groove

1шт.

13

K964246

SPACER

drive shaft

1шт.

N14154

ROTOR

SET gerotor, control valve, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

ROTOR control valve

1шт.

15

NSS

NOT SOLD SEPARAT

STATOR control valve

1шт.

16

L30878

DRIVE SHAFT

SHAFT drive, steering control valve

1шт.

17

135869A1

PLATE

spacer, with O-ring groove

1шт.

18

238-5040

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

-040, 70 Duro, 2.864" ID x .070" Thk, Cover and housing

3шт.

Part of low torque seal kit P/N 1343658C3.

1шт.

19

L35368

RETAINER

check ball

1шт.

20

211-208

BALL,5/16" Dia

5/16 inch, grade 25, chrome alloy steel, check

1шт.

21

L30893

O-RING,1/16" Thk x 5/16" ID

7/16 x 5/16 x 1/16 in, seat, inner

1шт.

Part of low torque seal kit P/N 1343658C3.

1шт.

22

D82806

VALVE SEAT

SEAT check ball

1шт.

23

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, Seat, outer (Replaces N8539 seal)

1шт.

Part of low torque seal kit P/N 1343658C3.

1шт.

24

D82805

SET SCREW

hex socket, special

1шт.

25

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Needle, Spool

1шт.

26

D82804

RACE

WASHER thrust, bearing

2шт.

27

N13312

CYLINDER END CAP

RETAINER spool seal

1шт.

28

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

Seal retainer -225, 70 Duro, 1.859" ID x .139" Thk

1шт.

Part of low torque seal kit P/N 1343658C3.

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL spool, inner

1шт.

Part of low torque seal kit P/N 1343658C3.

1шт.

30

A28211

OIL SEAL

1 inch ID, spool, outer

1шт.

Part of low torque seal kit P/N 1343658C3.

1шт.

31

S110169

WASHER

RING retaining, seal retainer

1шт.

1343658C3

SEAL KIT

KIT seal, low torque, Includes: Ref. 18, 21, 23 and 28 - 30

1шт.
