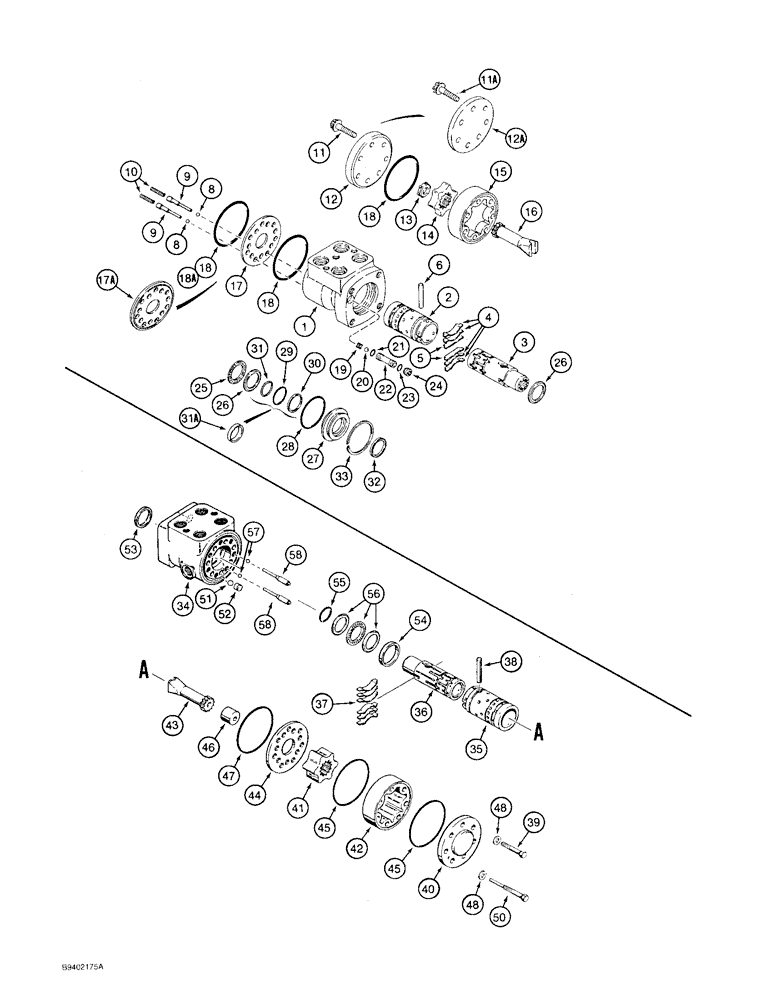

Запчасти Case 580SK (5-10) - STEERING CONTROL VALVE (05) - STEERING

D135338

PUMP, HYDRAULIC

VALVE ASSEMBLY steering control

1шт.

may receive either Eaton or Danfoss complete control valve assembly, see below for service of internal parts, no longer available, order 135999A1 valve assembly on Figure 5-13A, Includes: Ref. 1 through 58, P/N D140225, P/N above the Ref. 1, P/N N14250, P/N N14154, P/N NSS above Ref. 34 and P/N 14221.

1шт.

D140225

VALVE, CONTROL

VALVE ASSEMBLY steering control, Eaton No. 263-1061-004, Includes: Ref. 1 - 33, no longer available, order 135999A1 valve assembly on Figure 5-13A, Includes: Ref. 1 through 58, P/N above Ref. 1, P/N N14250, PN N14154, P/N NSS above Ref. 34 and P/N 14221.

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY steering control, D135338 valve, Eaton No. 263-1061-004, if used, Includes: Ref. 1 through 33, P/N 14250 and P/N N14154.

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE control valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL control valve

1шт.

N14250

KIT

centering spring, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING centering, six in kit

4шт.

5

NSS

NOT SOLD SEPARAT

SPACER spring

2шт.

6

L30888

PIN

centering

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE check, control valve, not shown

1шт.

8

211-204

BALL

3/16 inch, grade 25, chrome alloy steel, anticavitation

2шт.

9

136494A1

PLUG

RETAINER spring, anticavitation, replaces N14764

2шт.

10

N14763

SPRING

anticavitation

2шт.

11

H189555

BOLT,M6 x 20mm, Cl 8.8

Ferry head, 12 point, 5/16 NF x 1-5/8 inch, used with Ref. 12 and 17, if used

7шт.

11a

136586A1

SCREW,6 Pt, Torx Hd, 5/16" - 24 x 1 3/4"

BOLT Torx head, 6 point, 5/16 NF x 1-3/4 inch, used with Ref. 12A and 17A, if used

7шт.

Part of repair end cap kit P/N 136493A1

1шт.

12

D82809

COVER

CAP end, with O-ring groove, upon depletion of service parts, when replacing end cap or spacer plate, Ref. 12 or 17, order 136493A1 repair kit, see below

1шт.

12a

135867A1

CAP

end, without O-ring groove, 3/8 inch thick

1шт.

Part of repair end cap kit P/N 136493A1

1шт.

13

K964246

SPACER

drive shaft

1шт.

N14154

ROTOR

SET gerotor, control valve, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

ROTOR control valve

1шт.

15

NSS

NOT SOLD SEPARAT

STATOR control valve

1шт.

16

L30878

DRIVE SHAFT

SHAFT drive, steering control valve

1шт.

17

S113037

PLATE

spacer, without O-ring groove, upon depletion service parts, when replacing end cap or spacer plate, Ref. 12 or 17, order 136493A1 repair kit, see below

1шт.

17a

135869A1

PLATE

spacer, with O-ring groove facing end cap

1шт.

Part of repair end cap kit P/N 136493A1

1шт.

18

238-5040

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

-040, 70 Duro, 2.864" ID x .070" Thk, Cover and housing (Replaces N6392 square cut seal)

3шт.

Part of low torque seal kit P/N 1343658C3.

1шт.

136493A1

COVER

KIT - repair, end cap and spacer plate, includes seven 136586A1 bolts, 135867A1 end cap and 135869A1 spacer plate, Includes: Ref. 11A, 12A and 17A

1шт.

When the end cap repair kit is installed, 'flip' outer gerotor ring, Ref. 15. Also, order two of Ref. 9 retainers and reinstall it so that the O-ring groove faces the end cap.

1шт.

19

L35368

RETAINER

check ball

1шт.

20

211-208

BALL,5/16" Dia

5/16 inch, grade 25, chrome alloy steel, check

1шт.

21

L30893

O-RING,1/16" Thk x 5/16" ID

7/16 x 5/16 x 1/16 in, seat, inner

1шт.

Part of low torque seal kit P/N 1343658C3.

1шт.

22

D82806

VALVE SEAT

SEAT check ball

1шт.

23

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, Seat, outer (Replaces N8539 seal)

1шт.

Part of low torque seal kit P/N 1343658C3.

1шт.

24

D82805

SET SCREW

hex socket, special

1шт.

25

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Needle, Spool

1шт.

26

D82804

RACE

WASHER thrust, bearing

2шт.

27

N13312

CYLINDER END CAP

RETAINER spool seal

1шт.

28

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

Seal retainer (Replaces A14515 -225, 70 Duro, 1.859" ID x .139" Thk

1шт.

Part of low torque seal kit P/N 1343658C3.

1шт.

29

N13313

SEAL,25.1mm ID x 26.7mm OD x 2.6mm Thk

teflon, spool, inner, if used

1шт.

30

50-2703T1

BACK-UP RING

RING backup, seal, if used, replaces N13314

1шт.

31

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

Spool, inner, if used -121, 70 Duro, 1.049" ID x .103" Thk

1шт.

31a

NSS

NOT SOLD SEPARAT

SEAL may replace three piece seal arrangement, Ref. 29 - 31

1шт.

Part of low torque seal kit P/N 1343658C3.

1шт.

32

A28211

OIL SEAL

1 inch ID, spool, outer

1шт.

Part of low torque seal kit P/N 1343658C3.

1шт.

33

S110169

WASHER

RING retaining, seal retainer

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY steering control, Danfoss Type No. OSPC125LS, Code No. 150-0122, if used, Includes: Ref. 34 through 58 and P/N N14221

1шт.

34

NSS

NOT SOLD SEPARAT

HOUSING control valve

1шт.

35

NSS

NOT SOLD SEPARAT

SLEEVE control valve

1шт.

36

NSS

NOT SOLD SEPARAT

SPOOL control valve

1шт.

37

N14219

SET OF PARTS

SPRING centering, set of six

1шт.

38

3112269R1

PIN

centering

1шт.

39

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

6шт.

40

3112273R1

COVER

end

1шт.

N14221

ROTOR

SET gerotor, control valve, Includes: Ref. 41 and 42

1шт.

41

NSS

NOT SOLD SEPARAT

ROTOR control valve

1шт.

42

NSS

NOT SOLD SEPARAT

STATOR control valve

1шт.

43

538915R1

DRIVE SHAFT

SHAFT drive, steering control valve

1шт.

44

3112276R1

PLATE

spacer

1шт.

45

3141536R1

O-RING

cover and housing, replaces V35605

2шт.

46

N14220

SPACER

shaft

1шт.

47

538931R1

O-RING,1.5mm Thk x 80.5mm ID

plate, replaces V35603

1шт.

48

538920R1

WASHER

end cover

7шт.

50

D145254

BOLT special, with pin

SCREW

1шт.

51

3112270R1

BALL

plate

1шт.

52

3112272R1

BUSHING

plate

1шт.

53

538930R1

SEAL,25mm ID x 3.5mm Thk

spool, outer, replaces V35600

1шт.

54

3112264R1

RING

retaining

1шт.

55

D145253

O-RING

special

1шт.

56

N14218

BEARING ASSY

BEARING spool, includes roller bearing and two thrust washers

1шт.

57

N14222

BALL

housing, not shown

2шт.

58

D145278

PIN, SPLIT (COTTER)

PIN with bushing

2шт.

1343658C3

SEAL KIT

KIT seal, low torque, Includes: Ref. 18, 21, 23, 28, 31A and 32

1шт.
