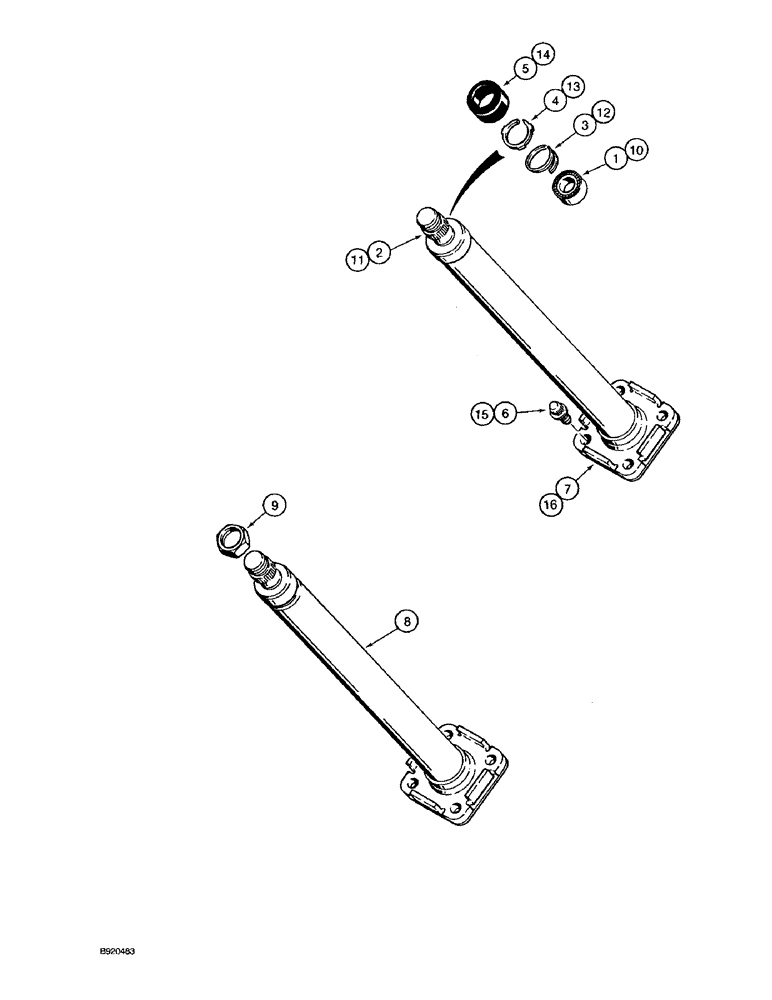

Запчасти Case 580SK (5-08) - STEERING COLUMN (05) - STEERING

D135411

STEERING COLUMN

COLUMN ASSEMBLY steering, may receive either Eaton or Danfoss complete steering column assembly, see below for service, replaced D135411 of internal parts, if used, Includes: Ref. 1 through 9 and P/N NSS above Ref. 1

1шт.

NSS

NOT SOLD SEPARAT

COLUMN ASSEMBLY steering, Eaton No. 204-1031-006, 460 mm long, if used, Includes: Ref. 1 through 7

1шт.

1

L30881

BALL BEARING,22.4mm ID x 35.8mm OD x 9.6mm W

roller, steering shaft

1шт.

2

NSS

NOT SOLD SEPARAT

COLUMN steering shaft

1шт.

3

F53335

RING, SNAP

RING retaining, bearing

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINER bearing

1шт.

5

S115351

CAP

shaft

1шт.

6

166-43

12 PT SCREW,Flg, 3/8" - 16 x 3/4", Gr 8

BOLT, 12 point, 3/8 NC x 3/4 inch, grade 8, not required, uses Ref. 6 and 7 shown on Figure 5-02

2шт.

7

NSS

NOT SOLD SEPARAT

FLANGE tube

1шт.

NSS

NOT SOLD SEPARAT

COLUMN ASSEMBLY steering, Danfoss Type No. OTPB400, Code No. 150X0058, 454 mm long, if used, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

COLUMN steering shaft

1шт.

9

N14118

SPECIAL NUT

special, used on Danfoss steering columns

1шт.

D150774

STEERING COLUMN

COLUMN ASSEMBLY steering, Eaton No. 204-1104-006, 469 mm long, if used, Includes: Ref. 10 through 16

1шт.

10

L30881

BALL BEARING,22.4mm ID x 35.8mm OD x 9.6mm W

roller, steering shaft

1шт.

11

NSS

NOT SOLD SEPARAT

COLUMN steering shaft

1шт.

12

F53335

RING, SNAP

RING retaining, bearing

1шт.

13

NSS

NOT SOLD SEPARAT

RETAINER bearing

1шт.

14

S115351

CAP

shaft

1шт.

15

166-43

12 PT SCREW,Flg, 3/8" - 16 x 3/4", Gr 8

BOLT, 12 point, 3/8 NC x 3/4 inch, grade 8, not required, uses Ref. 6 and 7 shown on Figure 5-02

2шт.

16

NSS

NOT SOLD SEPARAT

FLANGE tube

1шт.
