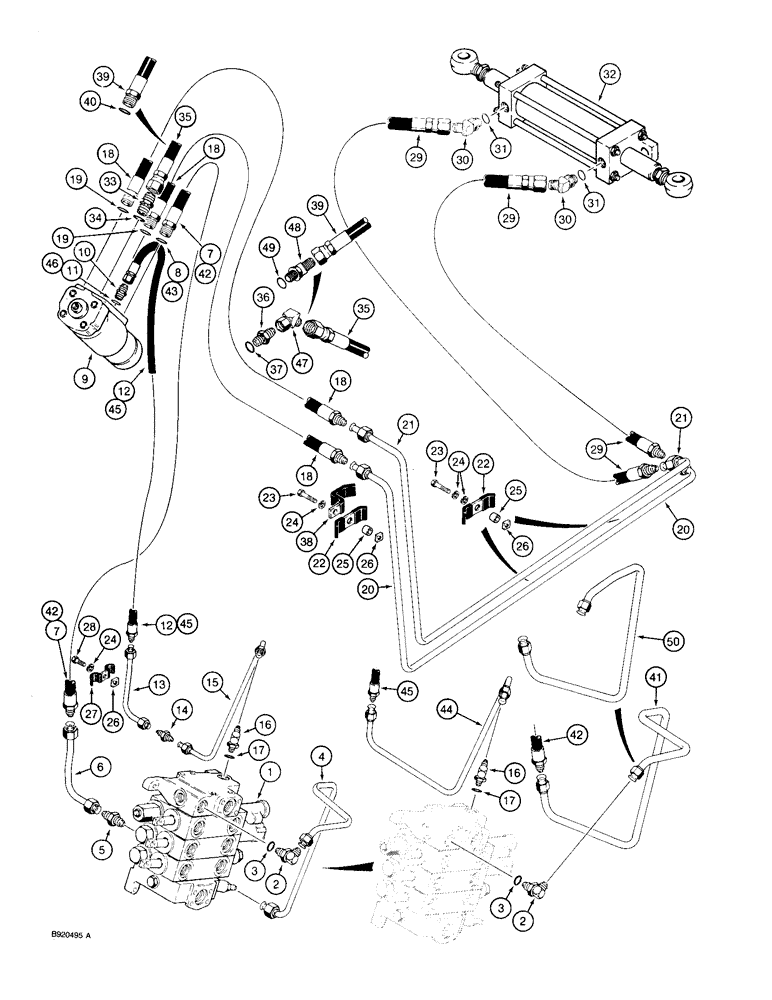

Запчасти Case 580SK (5-04) - STEERING HYDRAULIC CIRCUIT (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY loader control, for correct assembly and components, see Figure 8-064 or 8-066

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

D147584

PIPE

TUBE steering pressure, at loader valve, used with Ref. 5-7, if used

1шт.

5

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR straight, 3/4-16 inch flare, used with Ref. 4, 6, and 7, if used

1шт.

6

D147588

PIPE

TUBE steering pressure, to hose at steering valve, used with Ref. 4, 5, and 7, if used

1шт.

7

D146135

HOSE

1000 mm long, steering pressure, loader control valve to steering control valve lower right-hand port, used with Ref. 4-6, if used, Includes: Ref. 8

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

REF

INSTRUCTION

VALVE ASSEMBLY steering control, for correct assembly and components, see Figures 5-10 - 5-13A

1шт.

10

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER straight, 7/16-20 inch flare x O-ring boss, if used, Incl. Ref. 11

1шт.

11

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

12

D146136

HOSE

1000 mm long, steering pilot, steering control valve small center port to loader control valve, used with Ref. 10 and 13-15, if used

1шт.

13

D147590

PIPE

TUBE steering pilot, to tube at steering control valve, used with Ref. 10-12, 14 and 15, if used

1шт.

14

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR straight, 9/16-18 inch flare, used with Ref. 10-13 and 15, if used

1шт.

15

D147586

PIPE

TUBE steering pilot, to loader control valve, used with Ref. 10-14, if used

1шт.

16

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 17

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

18

D143188

HOSE ASSY.

HOSE, 570 mm long, steering control valve upper and lower left-hand ports to tubes, Includes: Ref. 19

2шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

20

D146282

PIPE

TUBE lower, to steering cylinder right-hand port hose

1шт.

Tube lines are different configuration than those shown in parts book 8-3462. There are no serial breaks so be sure the parts being ordered are similar looking to the ones required.

1шт.

21

D146280

PIPE

TUBE upper, to steering cylinder left-hand port hose

1шт.

Tube lines are different configuration than those shown in parts book 8-3462. There are no serial breaks so be sure the parts being ordered are similar looking to the ones required.

1шт.

22

D143846

CLAMP

- Tube

3шт.

23

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

3шт.

24

492-11038

LOCK WASHER,3/8"

6шт.

25

D149139

SPACER

special, tube clamp

3шт.

26

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

4шт.

27

D146520

CLAMP

tube

1шт.

28

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

29

D124648

HOSE

500 mm long, at steering cylinder

2шт.

30

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

45 degree, 3/4-16 inch flare x adj O-ring boss, Incl. Ref 31

2шт.

P/N 218-5136 is for 2 wheel drive only. For 4 wheel drive P/N 218-5280, Fig. 6-38 Ref. 4, is used to plumb the tubes to Cylinder P/N D149729, located on the front axle.

1шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

P/N 237-6008 O-ring is to be used with P/N 218-5136 for 2 wheel drive only.

1шт.

32

G107720

CYLINDER,Double Acting, 38.1mm Rod, 85.1mm Stroke

ASSEMBLY steering, for correct assembly and components, see Figure 5-14

1шт.

32

G107720R

REMAN-HYD CYLINDER

580SK

1шт.

32

G107720C

CORE-HYD CYLINDER

Return Number

1шт.

33

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADARefef. 34

1шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

35

D150056

HOSE

1200 mm long, steering return, steering control valve upper right-hand port to hydraulic oil filter, used with 218-5059 adapter, Ref. 33

1шт.

36

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER straight, 3/4-16 flare x 9/16-18 inch O-ring boss, may be used with or without Ref. 47 elbow, if used, Includes: Ref. 37

1шт.

37

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

38

D150345

GUIDE

hose, steering pressure and steering pilot hoses, Ref. 7 and 12

1шт.

39

D150829

HOSE

1200 mm long, steering return, steering control valve upper right-hand port to hydraulic oil filter, replaces hose and adapter on some models, Ref. 33 and 35, Includes: Ref. 40

1шт.

40

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

41

D150741

TUBE

steering pressure, at loader valve, used with Ref. 42 and 43, replaces two piece tube on some models, if used

1шт.

42

D149871

1125 mm long, steering pressure, loader control valve to steering control valve lower right-hand port, used with Ref. 41 tube, Includes: Ref. 43

1шт.

43

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

44

D150739

TUBE

steering pilot, to loader control valve, used with Ref. 45 and 46, replaces two piece tube on some models

1шт.

45

D150828

HOSE

1125 mm long, steering pilot, steering control valve small center port to loader control valve, used with Ref. 44, Includes: Ref. 46

1шт.

46

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

47

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

45 deg, 3/4-16 inch flare x swivel straight thread, used with Ref. 36 adapter on some models, if used

1шт.

48

218-5529

ELBOW,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC

45 deg, 3/4-16 flare x 9/16-18 inch adj O-ring boss, replaces Ref. 36 and 47 adapter and elbow on some models, if used, Includes: Ref. 49

1шт.

49

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

50

D151077

TUBE ASSY.

TUBE steering pressure, at loader valve, used with Ref. 42 and 43, may replace Ref. 41 on some models, if used Ref. 42 and 43, may replace Ref. 41 on some models, if used

1шт.
