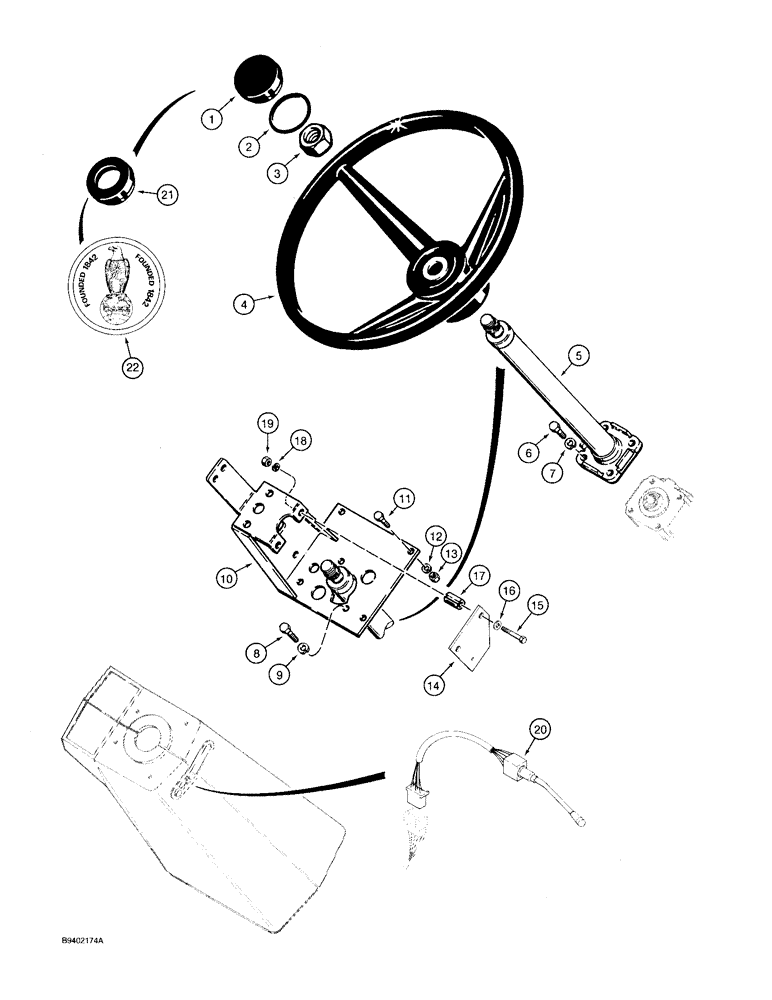

Запчасти Case 580SK (5-02) - STEERING WHEEL, COLUMN, AND TURN SIGNAL (05) - STEERING

1

A62210

PLUG

CAP steering wheel, no longer available, order Ref. 21 and 22

1шт.

2

238-5227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

Cap (Replaces D26115) -227, 70 Duro, 2.109" ID x .139" Thk

1шт.

3

F19646

LOCK NUT,13/16"-20, Thin

NUT lock, special, steering wheel retaining

1шт.

4

A65544

STEERING WHEEL

Tractor

1шт.

5

REF

INSTRUCTION

COLUMN ASSEMBLY steering, for correct assembly and components, see Figure 5-08

1шт.

6

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

D134527

BRACKET

steering column

1шт.

11

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

4шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

14

D147686

BRACKET

PLATE mounting, turn signal flasher socket

1шт.

15

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

hex, 5/16 NC x 2-1/4 inch

2шт.

16

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

17

D121476

BUSHING

SPACER bracket

2шт.

18

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

20

E46938

FLASHER SWITCH

LEVER switch, turn signal and horn, attaches to front console harness, see Figure 4-24 for harness options

1шт.

21

114882A1

CAP

steering wheel, used with Ref. 22

1шт.

22

A180055

CAP ASSY.

INSERT medallion, Case globe and eagle

1шт.
