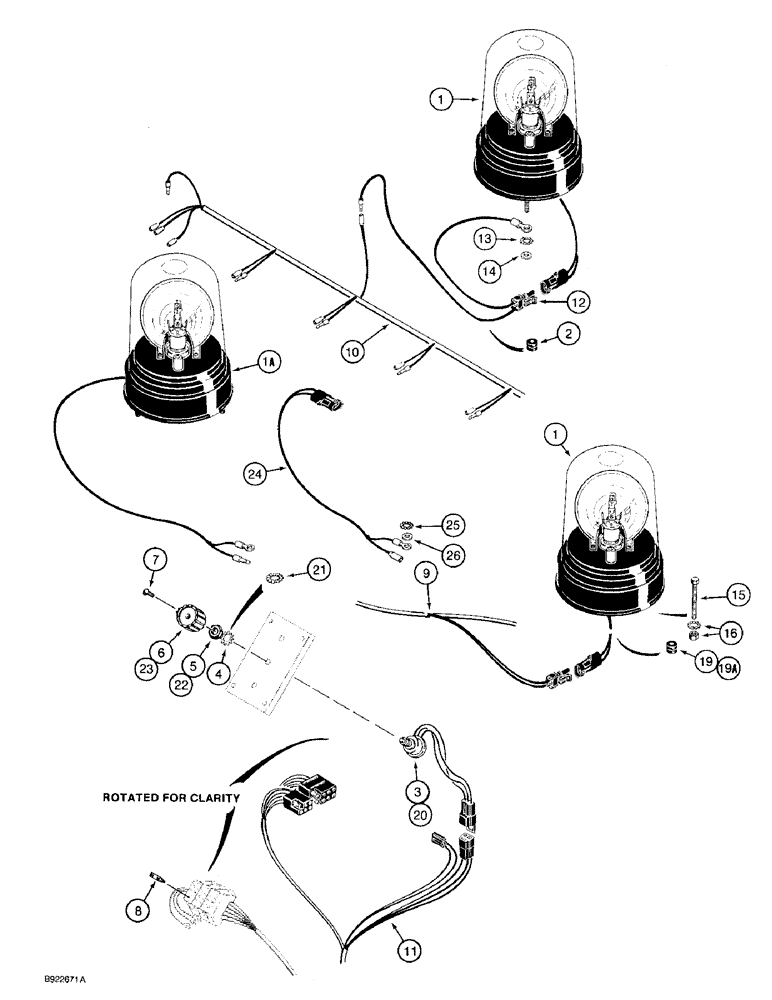

Запчасти Case 580SK (4-54) - ROTATING BEACON AND CIRCUIT (04) - ELECTRICAL SYSTEMS

1

D147114

LIGHT, WARNING

BEACON ASSEMBLY rotating, with plastic connector, used on cab or canopy models, parts list Figure 4-56, no longer available, order 108366A1

1шт.

1a

108366A1

BEACON

Assy, Rotating, with eyelet and bullet connector, Cab or canopy models, Parts list Figure 4-56, if used

1шт.

2

A23870

GROMMET

rear wire, used on canopy models

1шт.

D138377

SWITCH

ASSEMBLY two position, rotating beacon, with octagonal shaft, no longer available, order 133818A1 switch and D149932 knob, Ref. 20-23, Includes: Ref. 3, 4 and 5

1шт.

3

NSS

NOT SOLD SEPARAT

SWITCH rotating beacon

1шт.

4

193-58

LOCK WASHER,Ext Tooth, 1/2"

WASHER external tooth lock, 1/2 inch

1шт.

5

425-118

NUT,1/2"-20, G5

hex, 1/2 inch NF

1шт.

6

A141735

KNOB

D138377 rotating beacon switch, with octagonal shaft, see Figure 9-172 for rotating beacon symbol decal, if used

1шт.

7

470-1088

SCREW,Slotted Pan Hd, #8-32 x 1/2"

machine, pan head slotted, No. 8 NC x 1/2 inch

1шт.

8

A149801

FUSE,Lt Blue, 15 Amp

15 amperes, light blue, mounts in fuse holder in side instrument console harness

1шт.

9

REF

INSTRUCTION

HARNESS cab models, see Figure 9-140 for harness options

1шт.

10

D146580

HARNESS

ROPS canopy models

1шт.

11

REF

INSTRUCTION

HARNESS side console, right-hand, see Figure 4-26 for harness options

1шт.

12

D148584

ELECTRICAL WIRE

WIRE adapting, used on canopy models, if used

1шт.

13

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER internal-external tooth lock, 1/4 inch, ground, used with D148584 wire on canopy models, if used

1шт.

14

495-21031

WASHER,1/4"

flat, 5/16 x 47/64 x 1/16 inch, used with D148584 wire on canopy models, if used

1шт.

15

113-75

BOLT,Hex, 1/4" - 20 x 3", Gr 5, Full Thd

hex, full thread, 1/4 NC x 3 inch, replaces existing beacon studs, used on cab models

3шт.

16

193-1006

NUT,Keps, w/LW, 1/4"-20

hex, with external tooth lock washer, 1/4 inch NC, used with item 15 bolt on cab models

3шт.

19

L77821

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

rear wire, used on cab models with plastic roof cap

1шт.

19a

A23870

GROMMET

rear wire, used on cab models without plastic roof cap

1шт.

133818A1

SWITCH

ASSEMBLY, two position, rotating beacon, with square shaft, replaces D138377, D149893, Includes: Ref. 20, 21 and 22

1шт.

20

NSS

NOT SOLD SEPARAT

SWITCH rotating beacon

1шт.

21

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER internal-external tooth lock, 1/2 inch

1шт.

22

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

23

D149932

KNOB

KNOB, D149893 rotating beacon switch, with square shaft, if used

1шт.

24

109202A1

ELECTRICAL WIRE

WIRE adapting, if used

1шт.

25

493-11026

LOCK WASHER,Ext-Int Tooth, 1/4"

ground, used with 109202A1 wire, if used Ext-Int Tooth, 1/4"

1шт.

26

495-21031

WASHER,1/4"

flat, 5/16 x 47/64 x 1/16 inch, ground, used with 109202A1 wire, if used

1шт.

with 109202A1 wire, if used

1шт.
