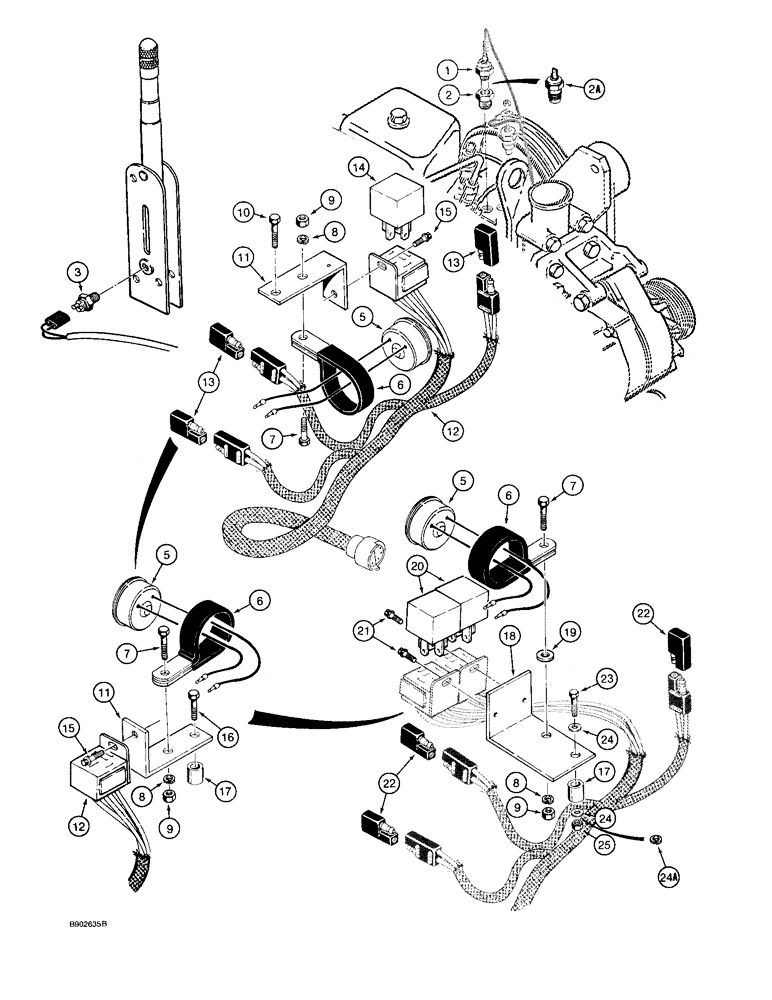

Запчасти Case 580SK (4-52) - SPECIAL PARTS USED ON MODELS W/AUDIBLE WARNING ALARM FOR WATER TEMP.,ENG OIL PRESS.& PARKING BRAKE (04) - ELECTRICAL SYSTEMS

1

D70163

SWITCH,1/4" - 18 NPT, 230 Degrees F

engine coolant temperature, replaces existing engine block plug, used with 221-1088 reducer, no longer used, order 1345488C2 switch, Ref. 2A and remove 221-1088 reducer

1шт.

2

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

pipe, 1/2 male x 1/4 inch female, used with D70163 switch, if used

1шт.

2a

1345488C2

PRESSURE SWITCH

SWITCH, 225 degree, engine coolant temperature, replaces Ref. 1 and 2 on some models, replaces 1345488C1 235 degree switch

1шт.

3

D136514

SWITCH

parking brake, mounts in parking brake lever on Figure 7-12 and attaches to front instrument panel harness

1шт.

5

D137468

BUZZER

ALARM warning, for engine water temperature, engine oil pressure, and parking brake

1шт.

6

D120561

CLAMP

warning alarm, Serial Range: mounting-bracket

1шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Alarm clamp to bracket Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

8

492-11038

LOCK WASHER,3/8"

1шт.

9

425-106

NUT,3/8"-16, Cl 5

1шт.

10

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

If used Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

D103387

KIT

service, audible warning alarm, includes instructions, if used, order Ref. 11 - 15 and 8-76100 instruction sheet, Includes: Ref. 11 through 15

1шт.

11

D143873

SUPPORT

BRACKET alarm mounting, uses existing mounting bolt, mounts under side console

1шт.

12

D146664

HARNESS

WIRE alarm, uses three diodes, attaches to D147040 side instrument console harness on Figure 4-26, prior to P.I.N. JJG0167019, if used

1шт.

13

L71879

DIODE ELEMENT,400V, 3A

DIODE isolation

3шт.

14

D128310

RELAY

alarm

1шт.

Relay is marked 40 amp on the relay-this is the RESISTANCE rating. The INDUCTIVE rating is 30 amps. We use this inductive rating in our literature.

1шт.

15

281-4556

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW self-tapping, hex washer head, No. 10 NC x 3/8 inch, relay mounting

1-2шт.

16

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 5/16 NC x 1-1/2 inch, if used

1шт.

17

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

bracket, if used, replaces D76209

1шт.

18

103393A1

BRACKET

alarm mounting, mounts under side console, if used

1шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16"), If used

1шт.

20

D128310

RELAY

alarm, attaches to 101597A1 side console harness

2шт.

21

281-4556

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW self-tapping, hex washer head, No. 10 NC x 3/8 inch, relay mounting

2шт.

22

L71879

DIODE ELEMENT,400V, 3A

DIODE isolation, 101597A1 side console harness, P.I.N. JJG0167019 and after

3шт.

23

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

1шт.

24

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), if used 3/8"

2шт.

24a

492-11038

LOCK WASHER,3/8"

1шт.

25

425-106

NUT,3/8"-16, Cl 5

1шт.
