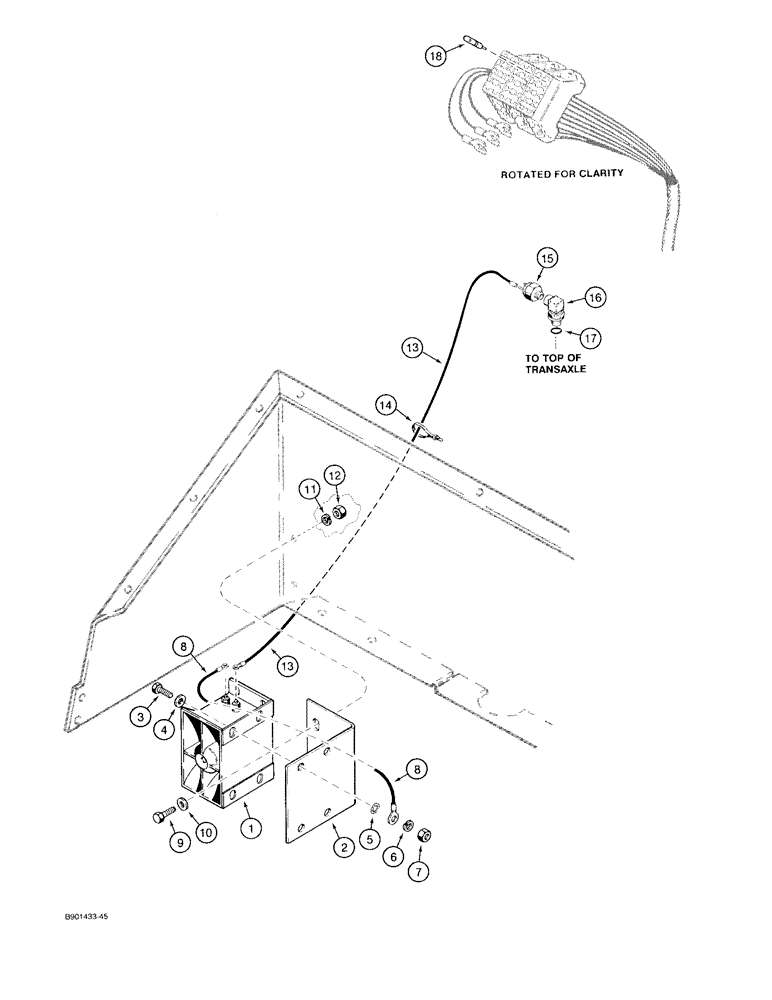

Запчасти Case 580SK (4-50) - BACKUP ALARM, MODELS WITH PTO (04) - ELECTRICAL SYSTEMS

1

D121972

ALARM

backup, electric, rectangular type

1шт.

2

D75815

BRACKET

backup alarm, mounts to closure panel

1шт.

3

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch

4шт.

4

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

5

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

6

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

8

D70125

ELECTRICAL WIRE

WIRE alarm ground

1шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

2шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

2шт.

11

492-11038

LOCK WASHER,3/8"

2шт.

12

425-106

NUT,3/8"-16, Cl 5

2шт.

13

D131326

ELECTRICAL WIRE

WIRE, Serial Range: switch-alarm

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon, retaining

1шт.

15

D139904

SWITCH

pressure

1шт.

16

D144477

FITTING

ELBOW, street, 90 degree

1шт.

18

A149798

FUSE

5 ampere, at fuse block

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
