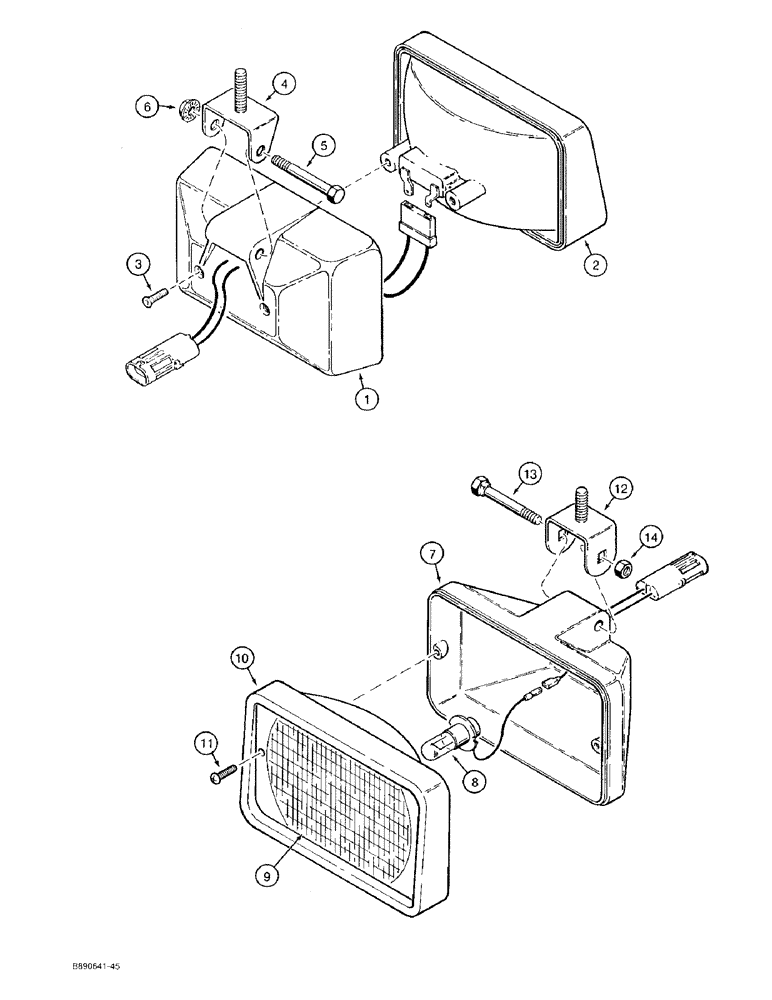

Запчасти Case 580SK (4-40) - CAB TRACTOR LAMPS - PLASTIC CONNECTORS, PRIOR TO CAB SERIAL NUMBER JAB0023786 (04) - ELECTRICAL SYSTEMS

R54411

LAMP

ASSEMBLY front driving, may receive either Hobbs or ABL complete lamp assembly, see below for service, front driving lamp assembly, Includes: Ref. 1 through 14, P/N A187666 and P/N 92264C1

2шт.

A187666

LIGHT ASSY.

LAMP ASSEMBLY Hobbs, with glare guard, with 3/8 inch mounting stud, order R54411, front driving lamp assembly, Includes: Ref. 1 through 6

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING lamp, front driving lamp assembly

1шт.

2

A187912

LAMP,12V, 50W

sealed beam, Hobbs lamp, designated on lens as SW, front driving lamp assembly

1шт.

3

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW self-tapping, flat slotted, No. 8-18 x 1/2 inch, front driving lamp assembly

2шт.

4

A187914

BRACKET

mounting, lamp, front driving lamp assembly

1шт.

5

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Housing to bracket, front driving lamp assembly Hex, 1/4"-20 x 2", G5

1шт.

6

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

hex, self-locking, 3/8 inch NC, front driving lamp assembly

1шт.

92264C1

LAMP

ASSEMBLY ABL, without glare guard, with 10 mm, mounting stud, order R54411, front driving lamp assembly, Includes: Ref. 7 through 14

2шт.

7

NSS

NOT SOLD SEPARAT

HOUSING lamp, front driving lap assembly

1шт.

8

1312210C1

BULB

lamp, front driving assembly

1шт.

9

1983290C1

LENS

lamp, front driving assembly

1шт.

10

1964806C1

BEZEL

RETAINER lens, front driving lamp assembly

1шт.

11

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW self-tapping, pan Phillips, No. 8-16 x 3/4 inch, front driving lamp assembly

2шт.

12

A187915

BRACKET

mounting, lamp, front driving assembly

1шт.

13

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

shoulder, hex, 8 mm x 45 mm, housing to bracket, front driving lamp assembly

1шт.

14

832-41308

NUT,M8 x 1.25, Cl 10

hex, self-locking, 8 mm, class 10.9, front driving lamp assembly

1шт.

R54412

LAMP, WORK

LAMP ASSEMBLY rear flood and optional front and rear work lamps, may receive, either Hobbs or ABL complete lamp assembly, see below for service, rear flood lamp assembly and optional front and rear work lamps

2-6шт.

A187665

LIGHT ASSY.

LAMP ASSEMBLY Hobbs, with glare guard with 3/8 inch mounting stud, order R54412, rear flood lamp assembly and optional front and rear work lamps, Includes: Ref. 1 through 6

2-6шт.

1

NSS

NOT SOLD SEPARAT

HOUSING lamp, rear flood lamp assembly and optional front and rear work lamps

1шт.

2

A187911

LAMP

sealed beam, Hobbs lamp, designated on lens as SW, rear flood lamp assembly and optional front and rear work lamps

1шт.

3

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW self-tapping, flat slotted, No. 8-18 x 1/2 inch, rear flood lamp assembly and optional front and rear work lamps

2шт.

4

A187914

BRACKET

mounting, lamp, rear flood lamp assembly and optional front and rear work lamps

1шт.

5

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Housing to bracket, rear flood lamp assembly and optional front and rear work lamps Hex, 1/4"-20 x 2", G5

1шт.

6

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

hex, self-locking, 3/8 inch NC, rear flood lamp assembly and optional front and rear work lamps

1шт.

92263C1

LIGHT ASSY.

LAMP ASSEMBLY ABL, without glare guard, with 10 mm mounting stud, order R54412, rear flood lamp assembly and optional front and rear work lamps, Includes: Ref. 7 through 14

2-6шт.

7

NSS

NOT SOLD SEPARAT

HOUSING lamp, rear flood lamp assembly and optional front and rear work lamps

1шт.

8

1312210C1

BULB

lamp, rear flood lamp assembly and optional front and rear work lamps

1шт.

9

1964807C1

LAMP BASE

LENS reflector, lamp, rear flood lamp assembly and optional front and rear work lamps

1шт.

10

1964806C1

BEZEL

RETAINER lens, rear flood lamp assembly and optional front and rear work lamps

1шт.

11

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW self-tapping, pan Phillips, No. 8-16 x 3/4 inch, rear flood lamp assembly and optional front and rear work lamps

2шт.

12

A187915

BRACKET

mounting, lamp, rear flood lamp assembly and optional front and rear work lamps

1шт.

13

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

shoulder, hex, 8 mm x 45 mm, housing to bracket, rear flood lamp assembly and optional front and rear work lamps

1шт.

14

832-41308

NUT,M8 x 1.25, Cl 10

hex, self-locking, 8 mm, class 10.9, rear flood lamp assembly and optional front and rear work lamps

1шт.
