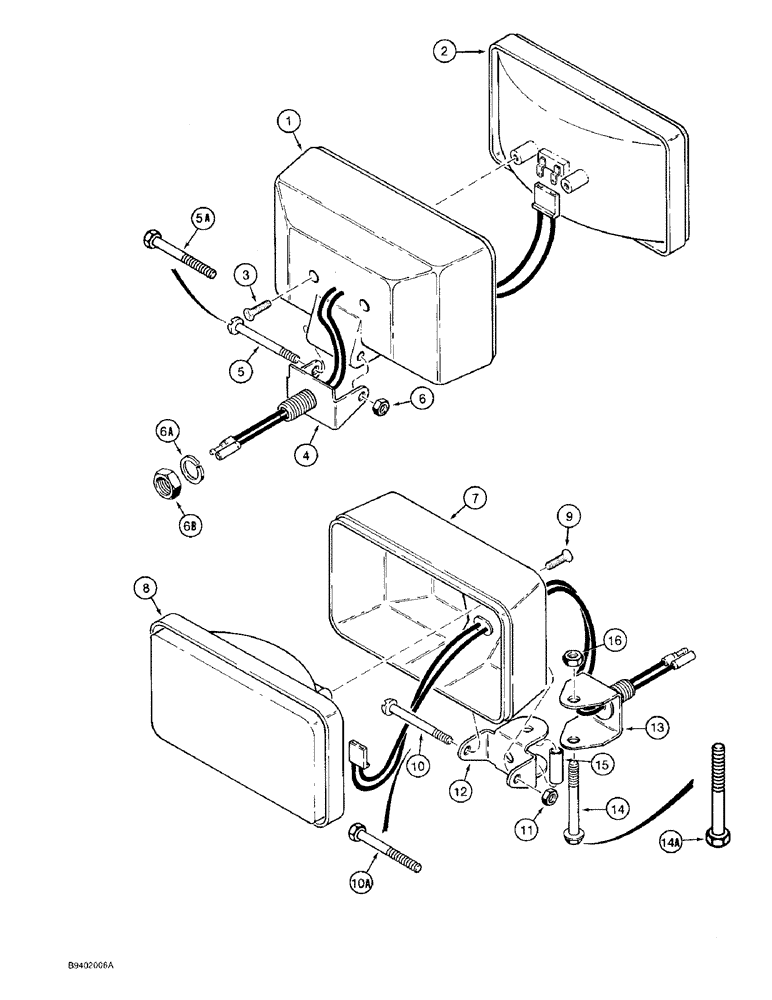

Запчасти Case 580SK (4-38) - CANOPY TRACTOR LAMPS, FRONT DRIVING, REAR FLOOD, AND OPTIONAL FRONT & REAR WORK LAMPS (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
D132681
LAMP,Halogen, 12V, 50W, Clear
ASSEMBLY front driving, front driving lamp assembly, Includes: Ref. 1 through 6B
2шт.
D132681, AND D132682-LAMP ASSEMBLIES, ARE AVAILABLE IN THE DEPOTS, AS D132681, AND D132682.
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING lamp, front driving lamp assembly
1шт.
2
91946C1
LAMP
BULB sealed beam, front driving lamp assembly
1шт.
3
273-10510
SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"
SCREW self-tapping, flat slotted, No. 10-16 x 5/8 inch, front driving lamp assembly
2шт.
4
N14284
BRACKET
lamp, front driving lamp assembly
1шт.
5
182-211
SCREW,Sl Pan Hd, 1/4" - 20 x 2"
machine, pan head slotted, 1/4 NC x 2 inch, housing to bracket, production, front driving lamp assembly
1шт.
5a
413-432
BOLT,Hex, 1/4" - 20 x 2", Gr 5
Service, front driving lamp assembly Hex, 1/4"-20 x 2", G5
1шт.
6
231-1444
NUT,1/4"-20, GB
NUT, LOCK, , Replaces 131-71, Front Driving Lamp Assembly 1/4"-20, GB
1шт.
6a
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, , Front driving lamp assembly 1/2"
1шт.
6b
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex, Front driving lamp assembly 1/2"-13, G5
1шт.
D132682
HEADLIGHT,Halogen, 12V, 50W, Clear
LAMP ASSEMBLY, rear flood, outer, and optional front and rear work lamps, rear floor lamp assembly and optional front and rear work lamps, Includes: Ref. 7 through 16
2-6шт.
D132681, AND D132682-LAMP ASSEMBLIES, ARE AVAILABLE IN THE DEPOTS, AS D132681, AND D132682.
1шт.
7
NSS
NOT SOLD SEPARAT
HOUSING lamp, rear floor lamp assembly and optional front and rear work lamps
1шт.
8
91947C1
LAMP
BULB sealed beam, rear floor lamp assembly and optional front and rear work lamps
1шт.
9
273-10510
SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"
SCREW self-tapping, flat slotted, No. 10-16 x 5/8 inch, rear floor lamp assembly and optional front and rear work lamps
2шт.
10
182-211
SCREW,Sl Pan Hd, 1/4" - 20 x 2"
machine, pan head slotted, 1/4 NC x 2 inch housing to bracket, production, rear floor lamp assembly and optional front and rear work lamps
1шт.
10a
413-432
BOLT,Hex, 1/4" - 20 x 2", Gr 5
Service, rear floor lamp assembly and optional front and rear work lamps Hex, 1/4"-20 x 2", G5
1шт.
11
231-1444
NUT,1/4"-20, GB
NUT, LOCK, , Replaces 131-71, Rear Floor Lamp Assembly and Optional Front and Rear Work Lamps 1/4"-20, GB
1шт.
12
N14285
SUPPORT
BRACKET mounting, lamp, rear floor lamp assembly and optional front and rear work lamps
1шт.
13
A52216
SUPPORT
BRACKET mounting, lamp, includes stud, rear floor lamp assembly and optional front and rear work lamps
1шт.
14
413-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
hex flange, self-locking, 5/16 NC x 2-1/4 inch, black, special, production, rear floor lamp assembly and optional front and rear work lamps
1шт.
14a
413-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
hex, 5/16 NC x 2-1/4 inch, service, rear floor lamp assembly and optional front and rear work lamps
1шт.
15
A52219
SPACER
bracket, rear floor lamp assembly and optional front and rear work lamps
1шт.
16
231-1445
NUT,5/16"-18, GB
NUT hex, self-locking, 5/16 inch NC, replaces 131-69, rear floor lamp assembly and optional front and rear work lamps
1шт.
Выбрано товаров: 25
