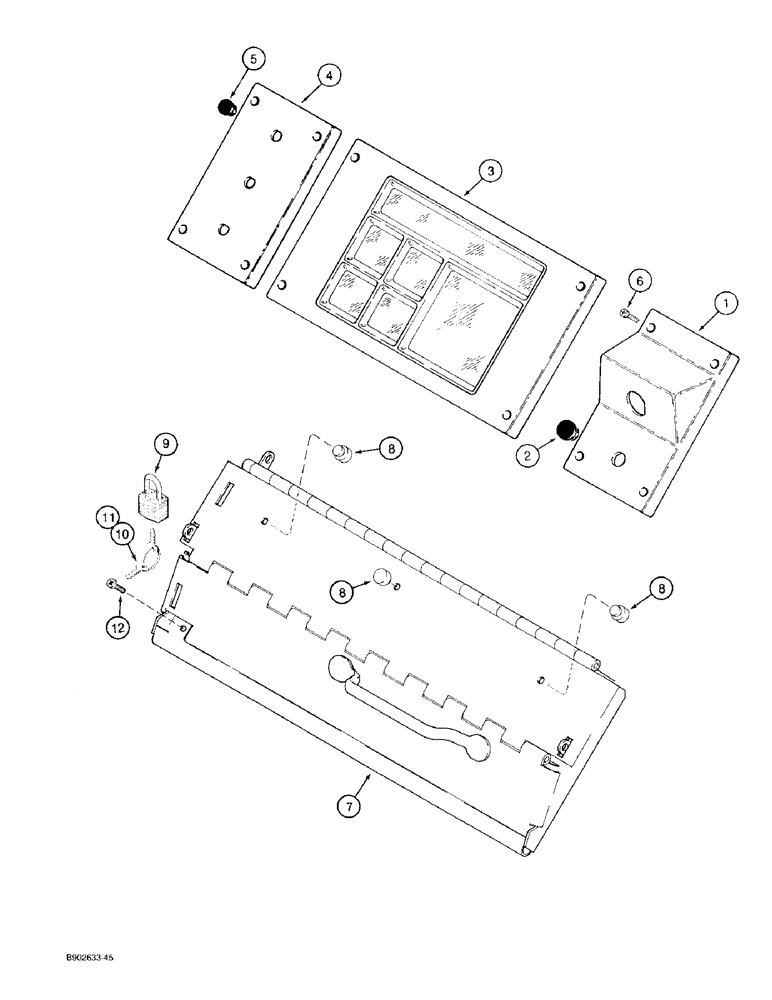

Запчасти Case 580SK (4-30) - SIDE INSTRUMENT PANEL AND COVERS (04) - ELECTRICAL SYSTEMS

1

D135675

PLATE

rear, key switch

1шт.

2

353-406

PLUG,Dome, .625" hole, Nylon

nylon, 5/8 inch, not required on models with cold start

1шт.

3

A187965

CLUSTER

ASSEMBLY instrument, parts list Figure 4-32

1шт.

A187965R

REMAN-INSTR CLUSTER

580SK

1шт.

A187965C

CORE-CLUSTER, INSTR

Return Number

1шт.

4

D141501

LARGE PLATE

PLATE front, accessory switches, see Figure 9-172 for decals

1шт.

5

353-404

PLUG,Dome, .500" hole, Nylon

3шт.

6

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, pan head Phillips, No. 10 NC x 1/2 inch

12шт.

D149553

COVER

ASSEMBLY side instrument panel, anti-vandalism, ROPS canopy models, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

COVER side instrument panel, anti-vandalism

1шт.

8

F22426

STOP

BUMPER rubber

3шт.

9

D93753

PADLOCK

includes keys, if used, Includes: Ref. 10 and 11

2шт.

10

R29555

KEY

for Master padlock only, if used

2шт.

11

D93751

SET OF 2 KEYS

KEY, for Yale padlock, if used

2шт.

12

140-117

SCREW,Cross Pan Hd, #10 - 24 x 1"

8шт.
