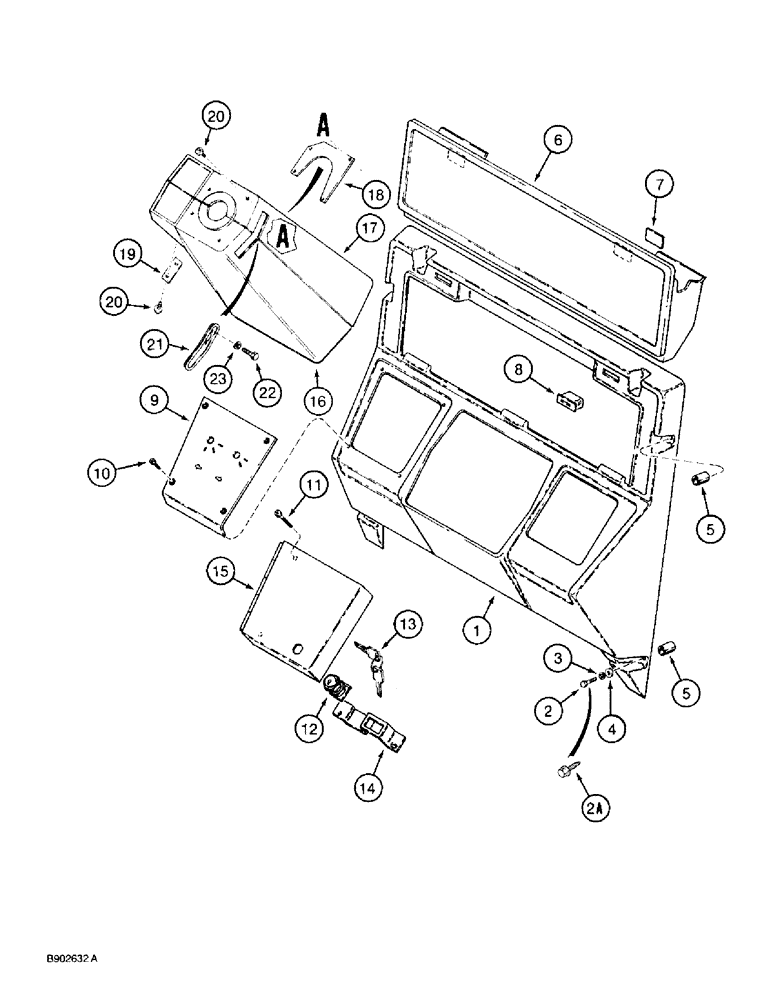

Запчасти Case 580SK (4-28) - FRONT INSTRUMENT PANEL AND COVERS (04) - ELECTRICAL SYSTEMS

1

D134389

BRACKET

PANEL instrument, front

1шт.

2

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch, if used

6шт.

2a

114921A1

SCREW

pointed, self-aligning, special, if used

6шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , if used 5/16"

6шт.

4

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

6шт.

5

102439A1

SPACER

13/32 x 1/2 x 3/8 inch

2-4шт.

6

D134256

BOX

COMPARTMENT storage, operators manual, see Figure 9-172, Ref. 38, for decal

1шт.

7

D135903

PLATE

steel, striker

2шт.

8

D127335

CATCH

Magnetic, Storage compartment

2шт.

9

D146194

LARGE PLATE

PLATE switch mounting

1шт.

10

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, pan head Phillips, No. 10 NC x 1/2 inch

4шт.

11

140-117

SCREW,Cross Pan Hd, #10 - 24 x 1"

Used with Ref. 14 and 15 Cross Pan Hd, #10-24 x 1"

4шт.

12

D136738

LOCK

ASSEMBLY includes two keys, anti-vandalism cover, ROPS canopy models, Includes: Ref. 13

1шт.

P/N D136738 Does not include keys per print.

1шт.

13

N14440

KEY

cover lock

2шт.

14

D140938

BRACKET

lower, switch plate, anti-vandalism, ROPS canopy models

1шт.

15

D140937

COVER

front instrument panel, anti-vandalism, ROPS canopy models

1шт.

D143963

COVER

ASSEMBLY, two piece, steering column, see Figure 9-172 for arrow decal, Includes: Ref. 16 through 20

1шт.

16

NSS

NOT SOLD SEPARAT

COVER steering column, rear

1шт.

17

NSS

NOT SOLD SEPARAT

COVER steering column, front

1шт.

18

D143710

LARGE PLATE

PLATE retaining, upper

1шт.

19

D143711

LARGE PLATE

PLATE retaining, side

1шт.

20

D148607

SCREW,#10 - 16 x 5/8"

Phillips flat head, No. 10 NC x 5/8 inch, special

6шт.

21

E47509

SUPPORT

PLATE cover, turn signal and horn lever mounting

1шт.

22

614-4008

BOLT,Hex, M4 x 0.7 x 8mm, Cl 8.8, Full Thd

hex, 4 - 7 x 8 mm

2шт.

23

892-11004

LOCK WASHER,M4

WASHER, LOCK, M4

2шт.

FOOTNOTE

1шт.
