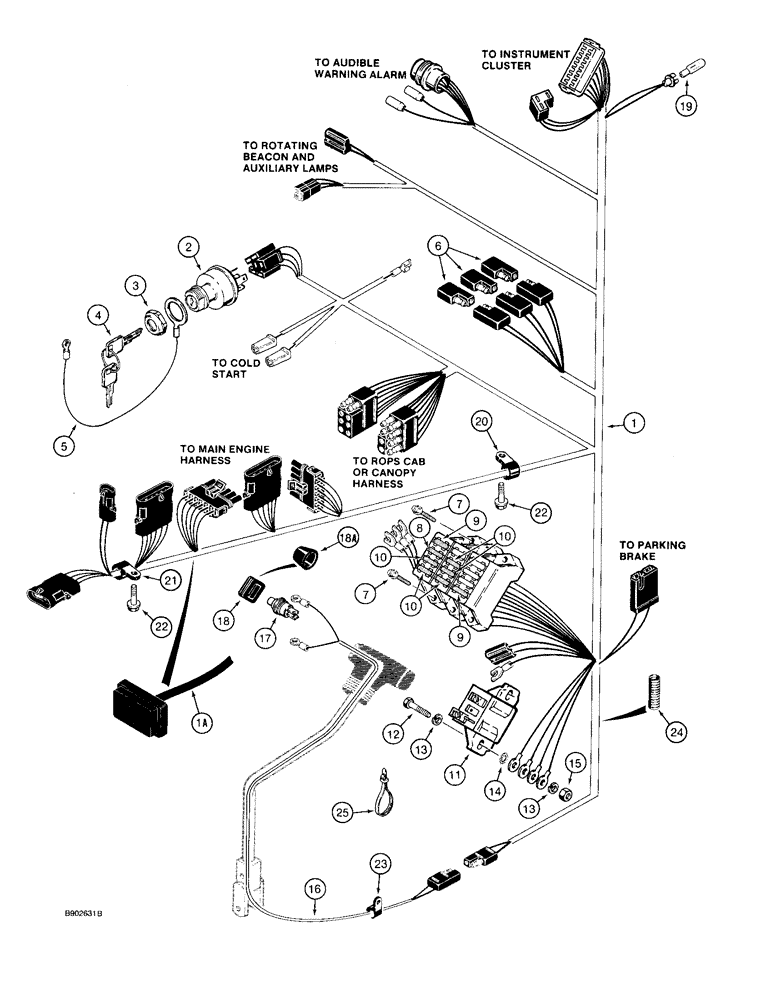

Запчасти Case 580SK (4-26) - SIDE CONSOLE WIRING HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

D147040

HARNESS

side console, used with D146664 alarm wire, Ref. 12 on Figure 4-52 on models with audible warning alarm, prior to P.I.N. JJG0167019

1шт.

1a

110884A1

HARNESS

side console, includes wiring for audible warning alarm, D146664 wire, Ref. 12 on Figure 4-52, not required with this harness, P.I.N. JJG0167019 and after, replaces 101597A1

1шт.

D134737

IGNITION SWITCH

SWITCH ASSEMBLY key, includes keys, Includes: Ref. 2, 3 and 4.

1шт.

2

NSS

NOT SOLD SEPARAT

SWITCH key, without keys

1шт.

PLASTIC PLUG THE IGNITION SWITCH GOES INTO IS P/N 225253C1, PACKARD NUMBER IS 2984017 PER PRINT.

1шт.

3

A77314

NUT

key switch mounting

1шт.

4

A77313

SET OF 2 KEYS

KEY, set of two; metal without padding

1шт.

5

D144977

ELECTRICAL WIRE

WIRE ground, key switch, uses existing hardware

1шт.

6

L71879

DIODE ELEMENT,400V, 3A

DIODE alternator protecting

3шт.

7

281-45510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW self-tapping, hex washer head, No. 10 NF x 5/8 inch

6шт.

8

A149803

FUSE,25 Amp

25 amperes

1шт.

THE FUSE BLOCK THAT REF. 8, 9 and 10 FUSES GO IN IS 245435C1. THERE WOULD BE 3 USED AS PICTURED HERE.

1шт.

COVER FOR THE FUSE BLOCK IS ON Fig. 9-130.

1шт.

9

A149800

FUSE,10 Amp

10 ampere, red

2шт.

THE FUSE BLOCK THAT REF. 8, 9 and 10 FUSES GO IN IS 245435C1. THERE WOULD BE 3 USED AS PICTURED HERE.

1шт.

10

A149801

FUSE,Lt Blue, 15 Amp

15 ampere, light blue

5шт.

THE FUSE BLOCK THAT REF. 8, 9 and 10 FUSES GO IN IS 245435C1. THERE WOULD BE 3 USED AS PICTURED HERE.

1шт.

11

1546541C1

RELAY

switch, 75 ampere, replaces D144471 relay

1шт.

12

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

hex, 1/4 NC x 1 inch

2шт.

13

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 2 of the 3 washers are at the lower mounting hole 1/4"

3шт.

14

493-11026

LOCK WASHER,Ext-Int Tooth, 1/4"

lower mounting hole only Ext-Int Tooth, 1/4"

1шт.

15

193-1006

NUT,Keps, w/LW, 1/4"-20

ASSEMBLY, includes washer, 1/4 inch, NC

2шт.

16

D150166

HARNESS

transaxle shift lever switch to side console harness

1шт.

17

D141486

SWITCH

clutch cutout, transaxle shift lever handle

1шт.

18

D140149

PROTECTOR

COVER square, switch, if used

1шт.

18a

D138252

BOOT

COVER round, switch, if used

1шт.

19

D71346

TAIL LAMP,12V

BULB warning, No. 168, transmission filter

1шт.

20

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

1шт.

21

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, 3/4 inch

1шт.

22

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW self-tapping, hex washer head, 5/16 NC x 3/4 inch, retains, side console harness clamps to underside of chassis, replaces D141589 bolt

1-2шт.

23

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

harness, closed, 3/4 inch ID, uses side console hardware for mounting, replaces 49771

1шт.

24

D150427

SLEEVE

GUARD, 150 mm long, sleeve, harness, cut to required length from D99461 bulk guard, see below

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.

D99461

LOOM

GUARD, 2032 mm long, sleeve, bulk

1шт.
