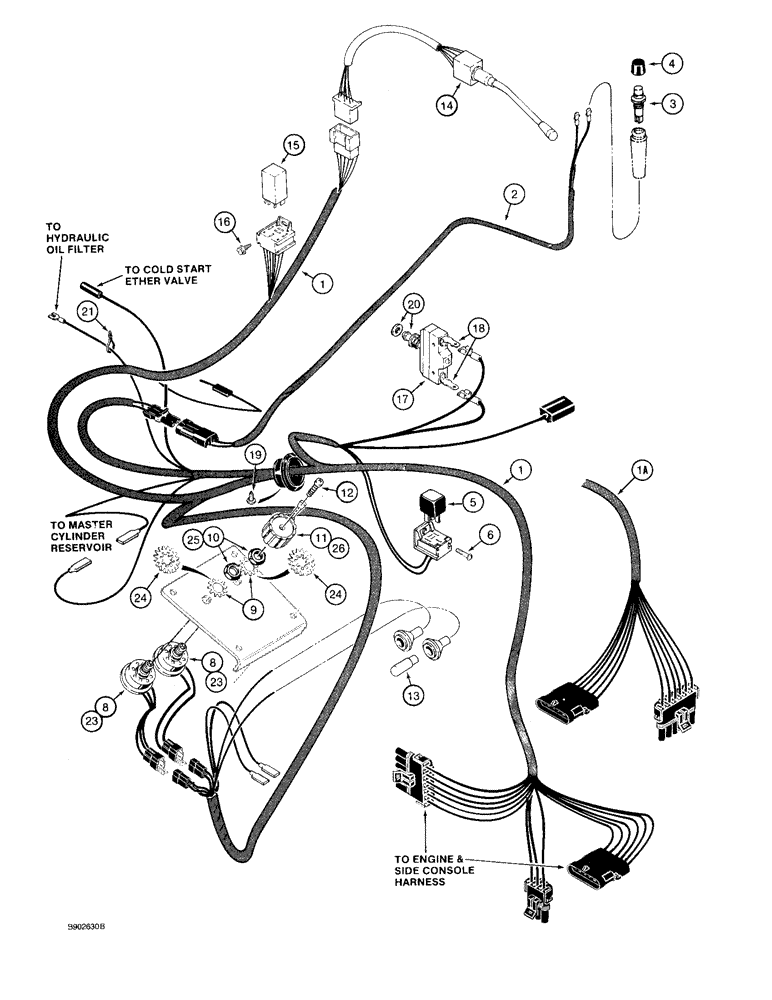

Запчасти Case 580SK (4-24) - FRONT CONSOLE WIRING HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

D150199

HARNESS

front console, prior to P.I.N. JJG0167019

1шт.

1a

101595A1

HARNESS

front console, P.I.N. JJG0167019 and after

1шт.

2

D147050

HARNESS

loader control lever, to fast cycle switch, D150199 or 101595A1 harness

1шт.

3

D141486

SWITCH

fast cycle, loader control lever

1шт.

4

D138252

BOOT

COVER switch

1шт.

5

D128310

RELAY

30 amperes, used on models with horn

1шт.

Relay is marked 40 amp on the relay-this is the RESISTANCE rating. The INDUCTIVE rating is 30 amps. We use this inductive rating in our literature.

1шт.

6

281-4556

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW self-tapping, hex washer head, No. 10 NC x 3/8 inch, harness, relay socket mounting

1шт.

D138376

SWITCH

ASSEMBLY front driving and rear flood lamps, three position with octagonal shaft, no longer available, order 133820A1 switch and D149932 knob

1шт.

See Ref. 9 on Figure 4-28 for switch mounting plate.

1шт.

D138377

SWITCH

ASSEMBLY flasher lamps, two position with octagonal shaft, no longer available, order 133818A1 switch and D149932 knob, Includes: Ref. 8, 9 and 10

1шт.

See Ref. 9 on Figure 4-28 for switch mounting plate.

1шт.

8

NSS

NOT SOLD SEPARAT

SWITCH, D138376 or D138377 switch

1шт.

9

193-58

LOCK WASHER,Ext Tooth, 1/2"

WASHER external tooth lock, 1/2 inch, D138376 or D138377 switch

1шт.

10

425-118

NUT,1/2"-20, G5

hex, 1/2 inch NF

1шт.

11

A141735

KNOB

D138376 work lamp and D138377 flasher switches, with octagonal shaft, see Figure 9-172 for lamp and flasher symbol decals, if used

2шт.

12

470-1088

SCREW,Slotted Pan Hd, #8-32 x 1/2"

machine, pan head slotted, No. 8 NC x 1/2 inch

2шт.

13

D71346

TAIL LAMP,12V

BULB light, No. 168

2шт.

14

E46938

FLASHER SWITCH

LEVER switch, turn signal and horn

1шт.

15

D147166

FLASHER UNIT

SWITCH flasher, see Figure 5-02, Ref. 14, for socket mounting plate

1шт.

16

281-4556

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW self-tapping, hex washer head, No. 10 NC x 3/8 inch, mounts flasher socket to plate on Figure 5-02

1шт.

17

D148108

SWITCH

brake lamp

1шт.

18

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

TERMINAL Male

2шт.

19

187-1325

SELF-TAP SCREW,Sltd Pan Hd, #10 x 1/2"

SCREW self-tapping, pan head slotted, No. 10-16 x 1/2 inch

1шт.

20

495-81153

WASHER,.469" x 3/4" x .030"

flat, 15/32 x 3/4 x 1/32 inch

2шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.

133820A1

SWITCH

ASSEMBLY front driving and rear flood lamps, three position with square shaft, includes Ref. 23-25, replaces D138376, D149931 switch

1шт.

133818A1

SWITCH

ASSEMBLY flasher lamps, two position with square shaft, includes Ref. 23-25, replaces D138377, D149893 switch, Includes: Ref. 23 and 24

1шт.

23

NSS

NOT SOLD SEPARAT

SWITCH, 133820A1 or 133818A1 switch

1шт.

24

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER internal-external tooth lock, 1/2 inch

1шт.

25

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

26

D149932

KNOB

KNOB, D149931, D149893, 133820A1 and 133818A1 switch with square shaft, if used

2шт.
