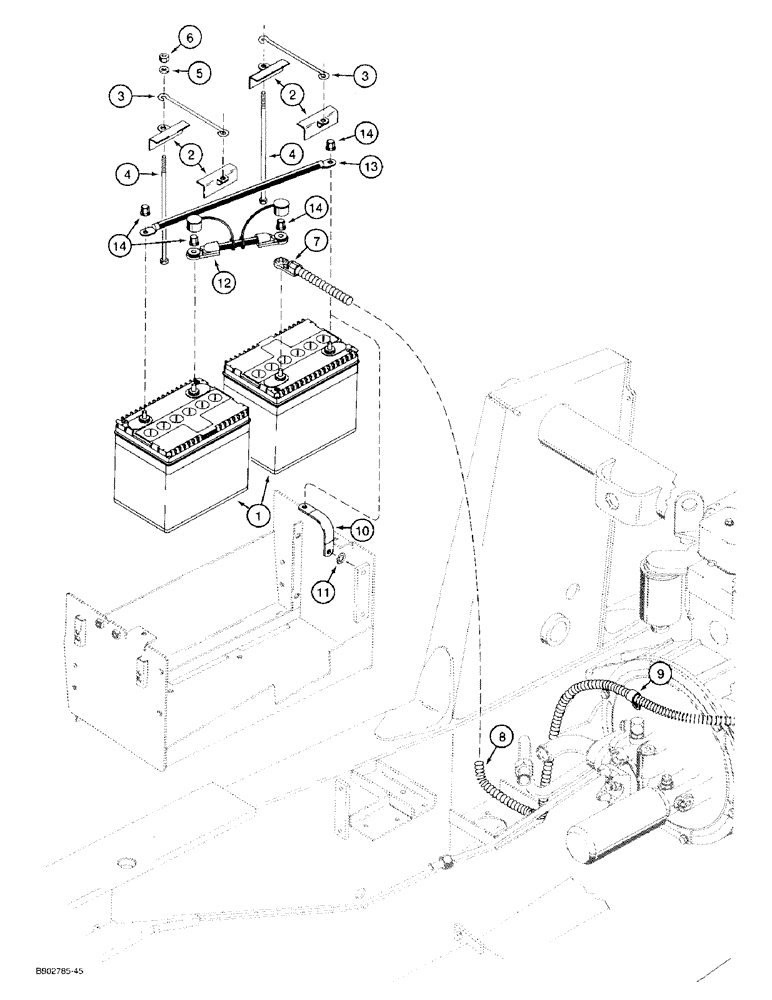

Запчасти Case 580SK (4-22) - DUAL BATTERIES AND CABLES, MODELS WITH COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

1

BMF28S

BATTERY, DRY

BATTERY, 12 volt, dry, models with cold start

2шт.

For battery used on models without cold start system, see Figure 4-18.

1шт.

2

D125079

BRACKET

battery hold down

4шт.

3

D55561

RETAINER

battery

2шт.

4

424-6160

BOLT,Hex, 3/8" - 16 x 10", Gr 2

- hex, 3/8 NC x 10 inch, grade 2

4шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

4шт.

6

231-1446

NUT,3/8" - 16, Gr 5

NUT hex, self-locking, 3/8 inch NC, grade 8

4шт.

7

D150245

CABLE

1650 mm long, positive to starter, replaces D146863 1600 mm long cable

1шт.

8

D150223

GUARD

SLEEVE, 1525 mm long, positive cable, guard

1шт.

9

D150224

CLAMP

cable to torque converter housing

1шт.

10

D140369

GROUND STRAP,260mm L

STRAP, 260 mm long, negative ground to battery box

1шт.

11

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - internal-external tooth lock, 3/8 inch, at ground strap mounting to battery box

1шт.

12

D145898

CABLE

170 mm long, positive jumper

1шт.

13

D150516

CABLE

500 mm long, negative jumper, replaces D145899 425 mm long cable

1шт.

14

D126409

NUT,Hex, M14, 20mm OD, 3/8" - 16

hex, 3/8 NC, special, battery terminal

4шт.

D103988

KIT

converter, dual battery

1шт.
