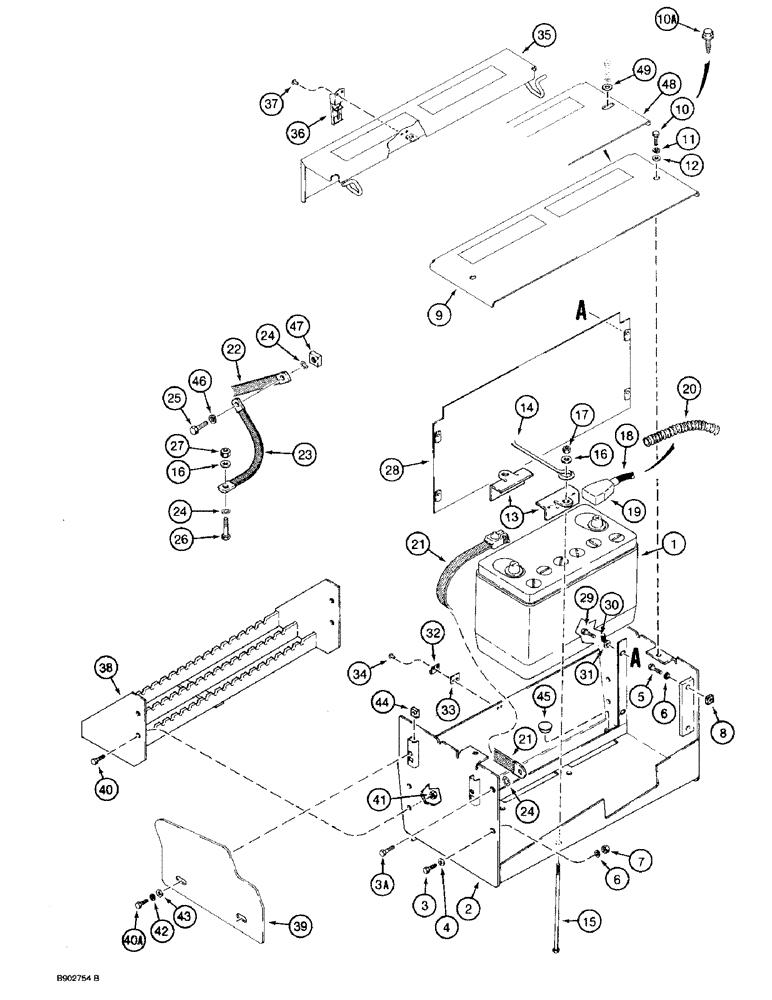

Запчасти Case 580SK (4-18) - BATTERY, BATTERY BOX, TOOL BOX, AND MOUNTING PARTS (04) - ELECTRICAL SYSTEMS

1

BMF31E

DRY BATTERY

BATTERY, 12 volt, dry, models without cold start

1шт.

For models with a dual battery cold start system, see Figure 4-22.

1шт.

2

D147084

PLATE

BOX battery and tool

1шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch, lower mounting hole

1шт.

3a

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch, upper mounting hole

1шт.

4

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

2шт.

6

492-11038

LOCK WASHER,3/8"

4шт.

7

425-106

NUT,3/8"-16, Cl 5

2шт.

8

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

2шт.

9

D146879

COVER

battery box, 29/64 x 19/32 inch slot, no longer available, order D150818 cover and two 495-81002 washers, Ref. 48 and 49

1шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch, if used

2шт.

10a

118978A1

FLANGE BOLT

SCREW pointed, self-aligning, special, if used service with 458-616

2шт.

11

492-11038

LOCK WASHER,3/8"

2шт.

12

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), D146879 cover, if used 3/8"

2шт.

13

D125079

BRACKET

battery, hold down

2шт.

14

D55561

RETAINER

battery

1шт.

15

424-6160

BOLT,Hex, 3/8" - 16 x 10", Gr 2

- hex, 3/8 NC x 10 inch, grade 2

2шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

3шт.

17

231-1446

NUT,3/8" - 16, Gr 5

NUT hex, self-locking, 3/8 inch NC, grade 8

2шт.

18

D150244

CABLE

1650 mm long, positive, battery, replaces D146864 1600 mm long cable, Includes: Ref. 19

1шт.

19

383619R1

COVER

cable, battery end, replaces A27072

1шт.

20

D150223

GUARD

SLEEVE, 1525 mm long, positive cable, guard

1шт.

21

D83485

CABLE,300mm L

STRAP negative, at battery

1шт.

22

D127018

STRAP

ground, engine

1шт.

23

D140369

GROUND STRAP,260mm L

STRAP ground, pod and chassis

1шт.

24

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - internal-external tooth lock, 3/8 inch

4шт.

25

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

26

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

1шт.

27

425-106

NUT,3/8"-16, Cl 5

1шт.

28

D147669

DIVIDER

PLATE divider, tool box

1шт.

29

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

30

492-11038

LOCK WASHER,3/8"

4шт.

31

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

4шт.

32

D131941

PLATE

STRIKER tool box latch

1шт.

33

D150059

SPACER

latch

1шт.

34

151-538

RIVET,Pop, 3/16" x .575"

pop, 3/16 x 9/16 inch

2шт.

35

D147083

LID

COVER tool box

1шт.

36

D150176

LATCH

tool box

1шт.

37

151-539

RIVET,Pop, 3/16" x .450"

pop, 3/16 x 13/32 inch

2шт.

38

D149922

STEP

operator compartment access, left-hand, see Figure 9-094, Ref. 16, for right-hand step

1шт.

39

113158A1

GUARD

mud, tool box, replaces D150028 and 104132A1 guard

1шт.

40

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

4шт.

40a

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

41

231-1446

NUT,3/8" - 16, Gr 5

NUT hex, self-locking, 3/8 inch NC, grade 8

4шт.

42

492-11038

LOCK WASHER,3/8"

2шт.

43

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

44

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

2шт.

The small cages that P/N 224-2246 Nut gets inserted into are P/N D88417.

1шт.

D88417

CAGE ASSY.

1шт.

located directly below Ref. 44 in the illustration.

1шт.

45

1340318C1

PLUG,1" Hole, Nylon

2шт.

46

492-11038

LOCK WASHER,3/8"

1шт.

47

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

1шт.

48

D150818

COVER

battery box, 29/64 x 3/4 inch slot

1шт.

49

495-81002

WASHER,3/8"

flat, 7/16 x 1-3/8 x 5/64 inch, D150818 cover, if needed

2шт.
