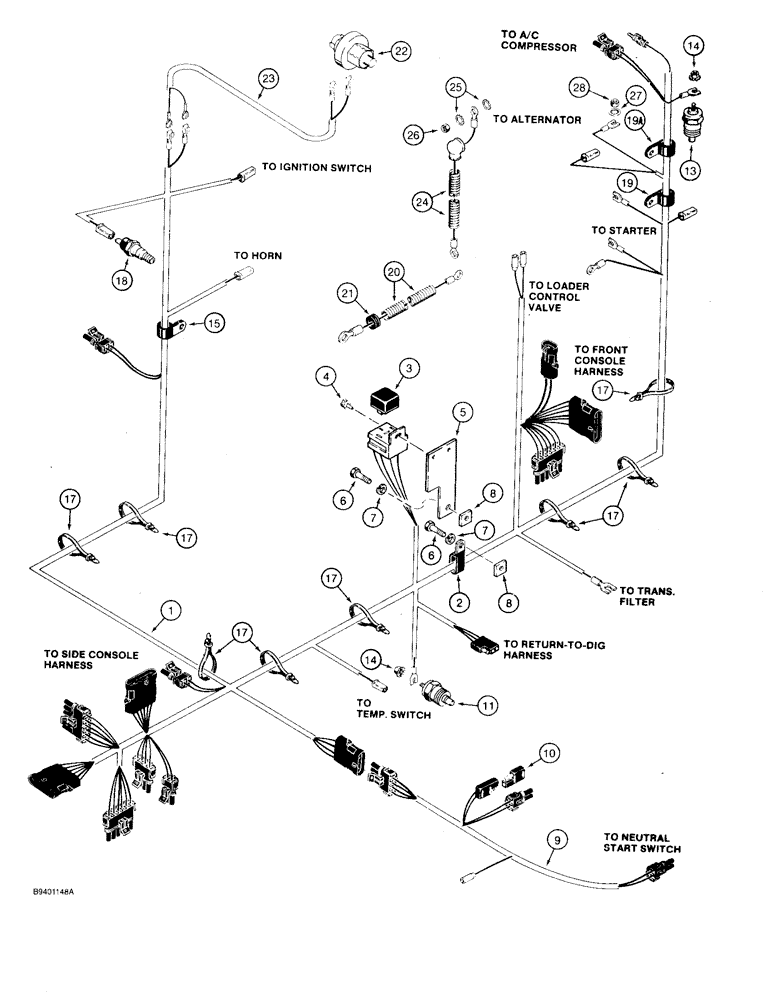

Запчасти Case 580SK (4-16) - ENGINE ELECTRICAL CIRCUIT, PRIOR TO P.I.N. JJG0167019 (04) - ELECTRICAL SYSTEMS

1

D150515

HARNESS

engine, main, replaces D146028 harness, models with or without air conditioning

1шт.

2

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

double, harness, use existing hardware

2шт.

3

D128310

RELAY

30 amperes, starter

1шт.

Ref. 3: D128310 Relay is marked 40 amp on the relay-this is the RESISTANCE rating. The INDUCTIVE rating is 30 amps. We use this inductive rating in our literature.

1шт.

4

281-4556

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW self-tapping, hex washer head, No. 10 NC x 3/8 inch

1шт.

5

D149376

SUPPORT

PLATE relay mounting

1шт.

6

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

2шт.

9

D144986

HARNESS

transaxle

1шт.

10

L71879

DIODE ELEMENT,400V, 3A

DIODE alternator protecting

1шт.

11

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER transaxle temperature

1шт.

13

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER engine water coolant temperature

1шт.

14

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

2шт.

15

49859

CLAMP

P-type, harness, left-hand side of engine, uses existing engine hardware

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon, retaining, harness

1шт.

18

A162297

SWITCH

SENDER oil pressure

1шт.

19

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, harness, uses existing engine hardware

1шт.

19a

D147383

CLIP,5/8" J

CLAMP J-type

1шт.

20

D150519

ELECTRICAL WIRE

WIRE, 1950 mm long, power, battery terminal on starter to cab relay, replaces D147514 2200 mm long wire

1шт.

21

D141118

GROMMET

power wire

1шт.

22

1983233C1

RESTRICTION SWITCH

SENDER, air filter restriction indicator

1шт.

23

D140449

HARNESS

WIRE jumper, restriction, Serial Range: indicator-harness

1шт.

24

D143830

CABLE

WIRE, 675 mm long, Serial Range: alternator-starter

1шт.

25

493-21033

LOCK WASHER,Int Tooth, 5/16"

WASHER external tooth lock, 5/16 inch

2шт.

26

825-1408

NUT,M8, Cl 8

1шт.

27

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16") Int Tooth, #10

1шт.

28

825-1405

NUT,M5, Cl 8

1шт.
