(4-06) - ALTERNATOR

Запчасти Case 580SK (4-06) - ALTERNATOR (04) - ELECTRICAL SYSTEMS

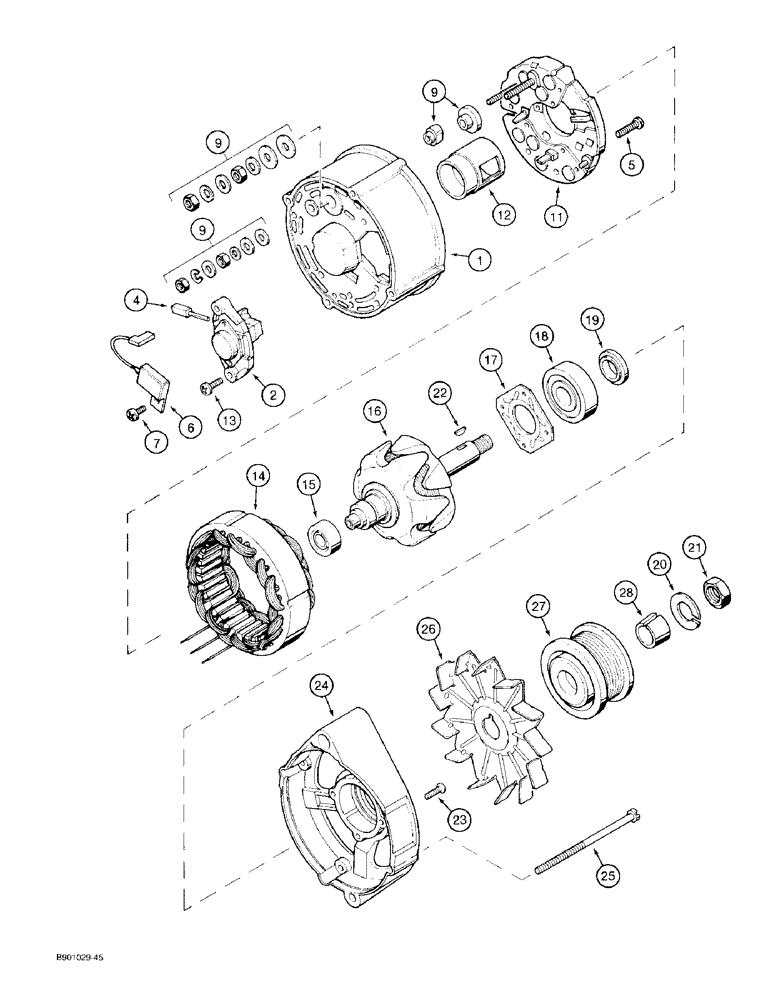

Схема запчастей Case 580SK - (4-06) - ALTERNATOR (04) - ELECTRICAL SYSTEMS
9
28
15
25
18
24
9
5
1
2
27
17
9
6
16
20
22
19
7
26
12
4
11
13
21
14
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A187873

ALTERNATOR,12V, 65A

ALTERNATOR ASSEMBLY electrical, 65 ampere, Includes: Ref. 1 through 25

1шт.

AR187873

REMAN-ALTERNATOR

Reman for New PN A187873

1шт.

AC187873

CORE-ALTERNATOR

Return Number

1шт.

A187873GV

ALTERNATOR

Value, 65A

1шт.

1

A187903

COVER

HOUSING collector ring end

1шт.

2

A187906

VOLTAGE REGULATOR

REGULATOR voltage

1шт.

4

1964968C1

COMMUTATOR BRUSH

BRUSH ASSEMBLY alternator

1шт.

5

1530431C1

BOLT,Hex, 1 1/4" - 7 x 7", Gr 8, W/ Wshr

BOLT, with washer, rectifier bridge retaining replaces A187898

2шт.

6

3079134R1

CAPACITOR

CAPACITOR alternator

1шт.

7

1964969C1

SCREW

SCREW - Fillister, capacitor retaining

1шт.

9

A187904

MULTIPOLE CONNECTOR

SET hardware, terminal

1шт.

11

A187917

RECTIFIER

BRIDGE rectifier, alternator

1шт.

12

A187899

INNER SHIELD

SHIELD alternator

1шт.

13

A187504

SCREW

BOLT with washer, voltage regulator retaining replaces A187907

2шт.

14

1964966C1

STATOR

STATOR alternator

1шт.

15

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

BEARING ball, rotor, collector ring end replaces A187908

1шт.

16

1964964C1

ROTOR

ROTOR alternator

1шт.

17

A187901

FIXING PLATE

PLATE bearing retaining

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

BEARING ball, rotor, drive end

1шт.

3078897R1

SET OF PARTS

KIT retaining, rotor, Includes: Ref. 19 through 23

1шт.

19

NSS

NOT SOLD SEPARAT

RING spacer

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER rotor shaft

1шт.

21

NSS

NOT SOLD SEPARAT

NUT rotor shaft

1шт.

22

NSS

NOT SOLD SEPARAT

KEY pulley retainer, not used in A187873 alternator

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW bearing retaining plate

4шт.

24

A186182

HOUSING

COVER drive end

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

BOLT special, cover retaining

4шт.

26

221425R1

FAN

FAN alternator, not included with alternator assembly, order separately

1шт.

27

J908560

PULLEY

PULLEY drive, not included with alternator assembly, order separately

1шт.

28

J908563

RETAINER

RETAINER pulley, not included with alternator assembly, order separately

1шт.

*

order separately

1шт.
