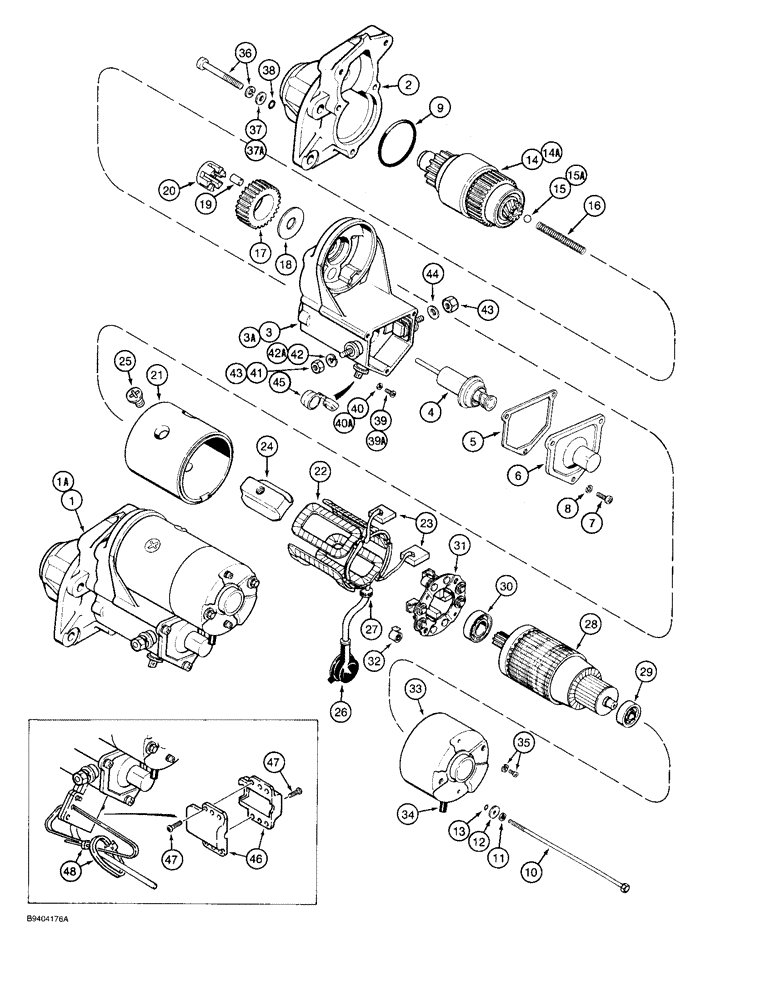

Запчасти Case 580SK (4-02) - STARTER (04) - ELECTRICAL SYSTEMS

1

A170746

STARTING MOTOR

STARTER ASSEMBLY new, Nippondenso No. 128000-0210, no longer available, order 1987559C1 starter assembly

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Reman for New PN A170746

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Number

1шт.

1

AR170746

STARTING MOTOR

STARTER ASSEMBLY engine, remanufactured, North America only, no longer available, order 1987559C1 starter

1шт.

Ref #1 - a170746 is a dry clutch starter

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Reman for New PN AR170746

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Number

1шт.

1

AC170746

CORE-STARTER

RETURN NUMBER use this number when returning starter for credit

1шт.

1a

1987559C1

STARTING MOTOR

STARTER ASSEMBLY new, Nippondenso No. 128000-0211, Includes: Ref. 2 through 45

1шт.

Ref #1A - a181056 is a wet clutch starter, sealed, and should be used on 580SK with pto

1шт.

1a

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, STARTER

1шт.

1a

86982709C

CORE-STARTER,12V, 2.5kW

Return Number

1шт.

2

A46948

HOUSING

HOUSING drive end

1шт.

3

A46949

IGNITION SWITCH

SWITCH ASSEMBLY magnetic, includes Ref. 4-8, A170746 starter

1шт.

3a

104588A1

SOLENOID

SWITCH ASSEMBLY magnetic, includes Ref. 4-8, 1987559C1, Includes: Ref. 4 through 8 starter

1шт.

4

NSS

NOT SOLD SEPARAT

SOLENOID switch

1шт.

5

NSS

NOT SOLD SEPARAT

GASKET solenoid cover

1шт.

6

NSS

NOT SOLD SEPARAT

COVER solenoid

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW, Serial Range: cover-switch

3шт.

8

NSS

NOT SOLD SEPARAT

WASHER cover screw

3шт.

9

1546500C1

SEAL,2.4mm Thk x 47.2mm ID

O-RING switch to housing, replaces A47229

1шт.

A47243

BOLT

BOLT ASSEMBLY through, Includes: Ref. 10 through 13

2шт.

10

A47128

BOLT

BOLT through

1шт.

11

892-11006

LOCK WASHER,M6

WASHER, LOCK, , 1/4 inch M6

1шт.

12

195-516

WASHER,#12

WASHER flat, 1/4 x 9/16 x 1/16 inch

1шт.

13

A47127

O-RING

O-RING bolt seal

1шт.

14

A47231

CLUTCH

CLUTCH drive, A170746 starter

1шт.

14a

104587A1

CLUTCH

CLUTCH drive, 1987559C1 starter

1шт.

15

211-209

BALL

BALL, 11/32 inch, grade 25, chrome alloy steel, A170746 starter

1шт.

15a

211-10

BALL

BALL, 11/32 inch, grade 200, chrome alloy steel, 1987559C1 starter

1шт.

16

A47232

SPRING

SPRING clutch drive, 2-13/16 inch free length

1шт.

17

A47233

GEAR

PINION idler

1шт.

18

A47234

WASHER

WASHER thrust, idler pinion

1шт.

19

A47235

ROLLER BEARING

ROLLER idler pinion bearing

5шт.

20

A47236

RETAINER

RETAINER roller bearings

1шт.

A47240

HOUSING

HOUSING ASSEMBLY with coil and brushes, Includes: Ref. 21 through 26

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING starter

1шт.

22

NSS

NOT SOLD SEPARAT

COIL field

1шт.

23

NSS

NOT SOLD SEPARAT

BRUSHES starter

2шт.

24

NSS

NOT SOLD SEPARAT

SHOE pole

4шт.

25

NSS

NOT SOLD SEPARAT

SCREW pole shoes

4шт.

26

NSS

NOT SOLD SEPARAT

BOOT magnetic switch terminal

1шт.

27

A47241

PLATE

PLATE lock

1шт.

28

A47242

ARMATURE

ARMATURE ASSEMBLY, Includes: Ref. 29 and 30

1шт.

29

452698C1

BALL BEARING,10mm ID x 30mm OD x 9mm W

BEARING, BALL - Commutator end, Replaces A47248

1шт.

30

A47247

BALL BEARING,17mm ID x 35mm OD x 10mm W

BEARING drive end

1шт.

31

A47239

HOLDER

HOLDER ASSEMBLY brush, Includes 2 brushes, Includes: Ref. 32

1шт.

32

A47249

SPRING

SPRING brush tension

4шт.

33

A47237

FRAME

FRAME commutator end

1шт.

34

A47238

COVER

COVER end frame

1шт.

35

A47244

CAPTIVE WASHER SCREW,Cross Pan Hd, M5 x 0.8 x 8mm

SCREW with lock washer, brush, Serial Range: holder-cover

2шт.

A47230

BOLT

BOLT ASSEMBLY commutator end cover to drive end housing, Includes: Ref. 36 through 38

3шт.

36

A47129

CAPTIVE WASHER SCREW

BOLT with lockwasher

1шт.

37

195-516

WASHER,#12

WASHER, flat, 1/4 x 9/16 x 1/16 inch, if used

1шт.

37a

195-2015

WASHER

WASHER flat, 9/32 x 1/2 x 1/32 inch, if used

1шт.

38

A47130

O-RING

O-RING bolt seal

1шт.

39

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

SCREW - machine, pan Phillips head, No. 8-32 x 3/8", A170746 starter

1шт.

39a

A46950

SCREW,M5 x 0.8 x 0.8mm

SCREW machine, pan Phillips head, 5 x 8 mm, 1987559C1 starter

1шт.

40

493-21017

LOCK WASHER,Int Tooth, #8

WASHER No. 8 internal lock, A170746 starter

1шт.

40a

892-11005

LOCK WASHER,M5

WASHER, LOCK, , 1987559C1 starter M5

1шт.

41

425-146

JAM NUT,3/8" - 16, Gr 5

NUT hex, jam, 3/8 inch NC, A170746 starter, battery terminal

1шт.

42

492-11038

LOCK WASHER,3/8"

LOCK WASHER, , A170746 starter 3/8"

1шт.

42a

892-11010

LOCK WASHER,M10

LOCK WASHER, , 1987559C1 starter M10

1шт.

43

825-1410

NUT,M10, Cl 8

Nut, , Field coil terminal, 1 used on A170746 starter, 2 used on 1987559C1 starter M10, Cl 8

1-2шт.

44

A10454

WAVE WASHER

WASHER spring, field coil terminal

1шт.

45

104589A1

BUSHING

BUSHING insulator, 1987559C1 starter

1шт.

B92730

COVER

KIT anti by-pass start

1шт.

for use on any starter that is not equipped with an anti by-pass cover, also includes 321-6872 and 321-7040 decals shown on Figure 9-168 Ref. 19 and 19A, and an application chart and installation instructions, if used, Includes: Ref. 46, 47 and 48

1шт.

46

NSS

NOT SOLD SEPARAT

COVER solenoid, starter switch terminal

2шт.

47

260-5448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - self-tapping, pan Phillips, No. 8-18 x 1/2 inch

2шт.

48

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP tie, 15 inch, nylon, 381 mm long

2шт.
