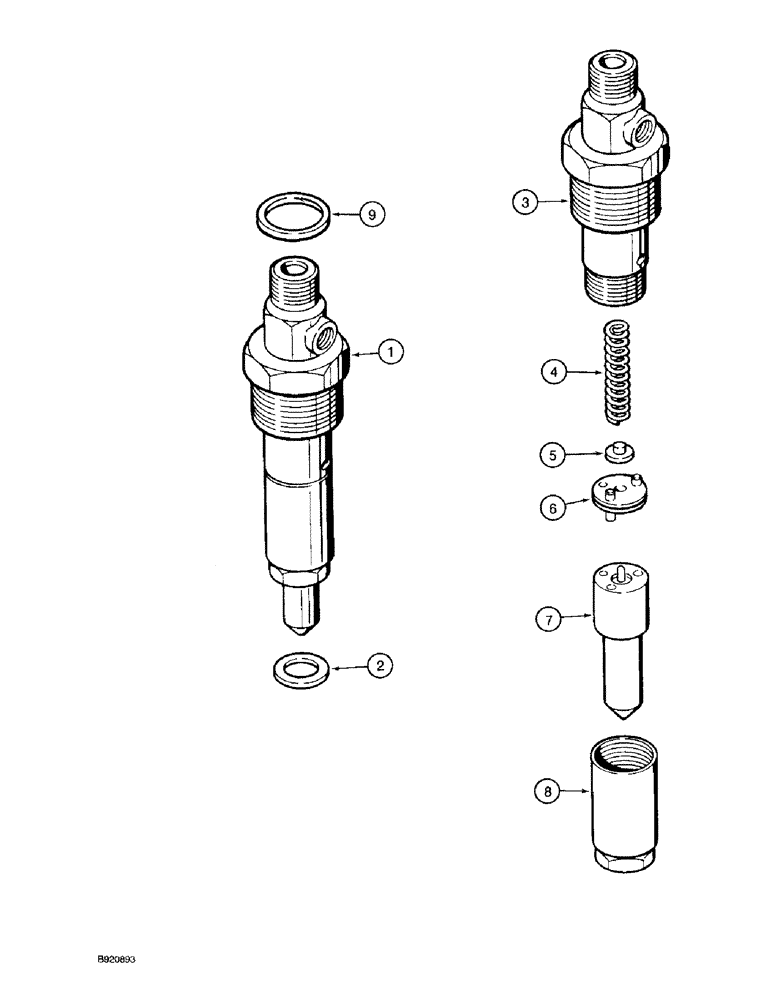

Запчасти Case 580SK (3-18) - FUEL INJECTION NOZZLE, 4-390 ENGINE (03) - FUEL SYSTEM

1

J919336

INJECTOR ASSY.

NOZZLE ASSEMBLY fuel injection, CAV, Includes: Ref. 2 through 8

4шт.

1

JR919336

REMAN-FUEL INJECTOR

Remanufactured Injection Nozzle

4шт.

1

JC919336

CORE-FUEL INJECTOR

Return Number, Injection Nozzle

4шт.

2

J906659

SEAL

injector tip, replaces J920174 seal

1шт.

Whenever a nozzle is removed from the cylinder head, J906659 seal must be replaced.

1шт.

3

NSS

NOT SOLD SEPARAT

BODY injector

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING nozzle pressure

1шт.

5

NSS

NOT SOLD SEPARAT

SEAT nozzle pressure spring

1шт.

6

NSS

NOT SOLD SEPARAT

STOP nozzle valve

1шт.

7

NSS

NOT SOLD SEPARAT

TIP nozzle injector

1шт.

8

NSS

NOT SOLD SEPARAT

NUT cap, nozzle tip

1шт.

9

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING injector body

4шт.
