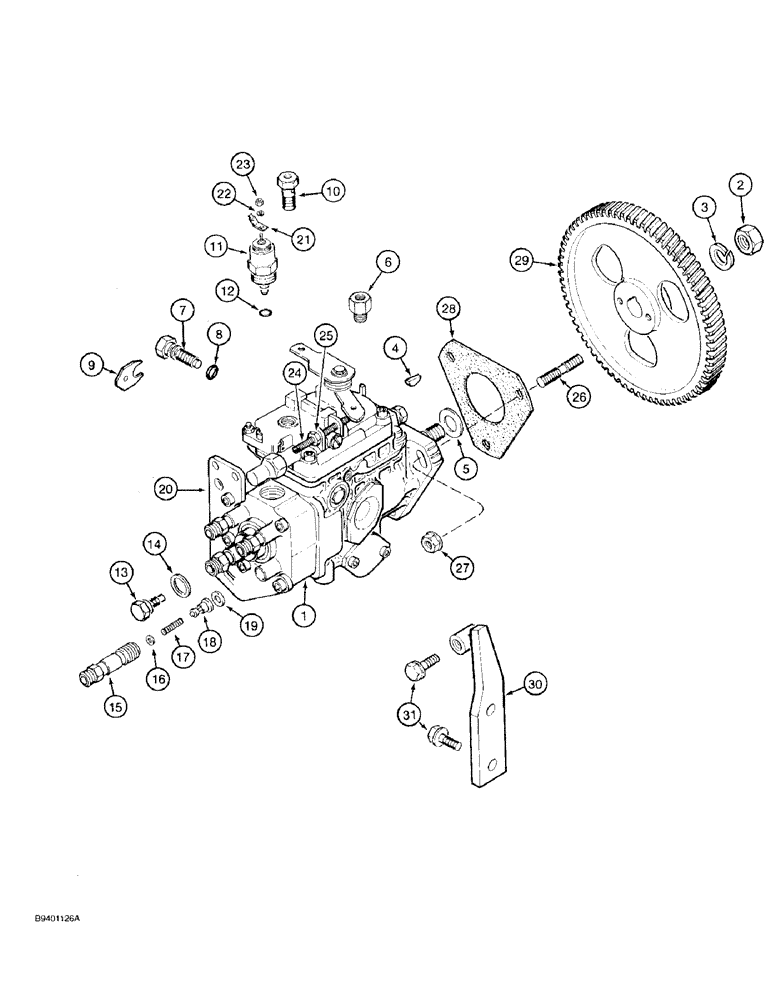

Запчасти Case 580SK (3-15A) - FUEL INJECTION PUMP AND DRIVE, 4T-390 ENGINE, TRACTOR P.I.N. JJG0173468 AND AFTER (03) - FUEL SYSTEM

1

J919846

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY fuel injection, Includes: Ref. 2 through 25.

1шт.

1

JR919846

REMAN-INJECTION PUMP

PUMP ASSEMBLY fuel injection, remanufactured, component parts shown on this page do not apply to the remanufactured assembly

1шт.

1

JC919846

CORE-INJECTION PUMP

Return Number

1шт.

JC917500

PUMP, FUEL INJECTION

PUMP, INJECTION RETURN NUMBER use this part number to return pump core for credit when using a remanufactured assembly

1шт.

2

J903738

NUT

NUT hex, 14 mm

1шт.

3

92-11056

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

4

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

WOODRUFF KEY, , Pump gear, replaces J902332 #6, 5/32" x 5/8", HT

1шт.

5

J920393

SEAL

SEAL shaft

1шт.

6

J903382

ADAPTER,M12 x 1.5 x M14 x 1.5

ADAPTER tube

1шт.

7

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

SCREW timing lock

1шт.

8

J904785

O-RING,8 mm ID x 2.5 mm

O-RING timing lock screw

1шт.

9

J904786

PLATE

PLATE timing lock

1шт.

10

J905465

BANJO BOLT

SCREW overflow, banjo

1шт.

11

A77753

SOLENOID

SOLENOID ASSEMBLY shut down, 12 volt, component parts not serviced separately

1шт.

12

J903577

SEAL

SEAL solenoid

1шт.

13

J903572

BLEED SCREW,M8 x 1 x 23.10mm

SCREW vent

1шт.

14

3053133R1

SEALING RING,M8 x 11.5 x 1

RING vent screw

1шт.

15

J910794

FITTING

FITTING bypass delivery valve

4шт.

16

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

WASHER delivery valve

4шт.

17

J910796

SPRING

SPRING delivery valve

4шт.

18

J910795

BY-PASS VALVE

VALVE bypass delivery

4шт.

19

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

GASKET delivery valve

4шт.

20

J905696

SUPPORT

BRACKET pump support

1шт.

21

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

TERMINAL adapter

1шт.

22

J907481

WASHER

WASHER lock

1шт.

23

J907480

NUT

NUT terminal

1шт.

24

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

SCREW low idle stop

1шт.

25

J904783

NUT

NUT idle screw

1шт.

26

J902501

STUD

STUD pump mounting, 8 - 1.25 x 48 mm

3шт.

27

J900589

NUT

NUT hex flange, 8 mm

3шт.

28

J914389

GASKET

GASKET pump mounting

1шт.

29

J920594

PINION

GEAR pump drive

1шт.

30

J905313

LEVER

BRACE fuel pump, if used

1шт.

31

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT heavy hex flange, 8 - 1.25 x 20 mm, If used

3шт.
