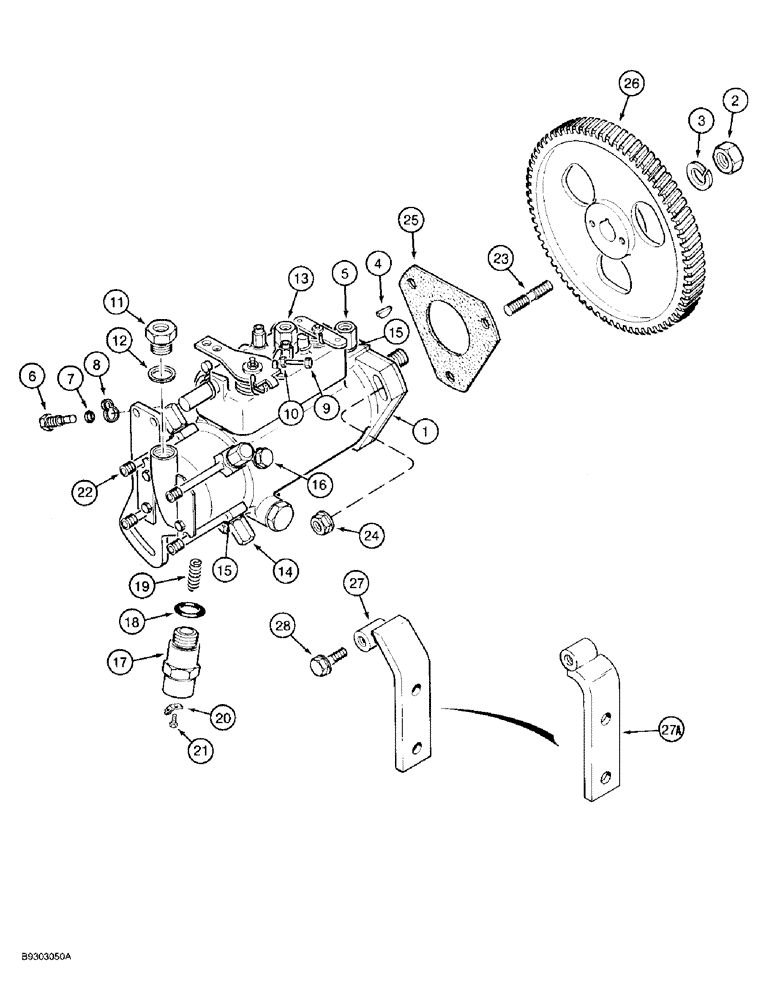

Запчасти Case 580SK (3-14) - FUEL INJECTION PUMP AND DRIVE, 4-390 ENGINE, 4T-390 ENGINE,PRIOR TO TRAC PIN JJG0173468 (03) - FUEL SYSTEM

1

J916523

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY fuel injection, new, 4-390 engine

1шт.

Ref pump assy. s/n break may not be precise. Customer with after s/n used j916523 pump.

1шт.

1

JR916523

REMAN-INJECTION PUMP

Pump Assembly fuel injection, remanufactured, 4-390 engine, component parts shown on this page do not apply to the remanufactured assembly

1шт.

1

JC916523

CORE-INJECTION PUMP

Return Part Number use this part number to return pump core for credit when using a remanufactured assembly

1шт.

1

J917063

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY fuel injection, new, 4T-390 engine, Includes: Ref. 2 through 22

1шт.

1

JR917063

REMAN-INJECTION PUMP

Pump Assembly fuel injection, remanufactured, 4T-390 engine, component parts shown on this page do not apply to the remanufactured assembly

1шт.

1

JC917063

CORE-INJECTION PUMP

Return Part Number

1шт.

1

JC915883

CORE-INJECTION PUMP

Return Part Number use this part number to return pump core for credit when using a remanufactured assembly

1шт.

2

J903738

NUT

NUT hex

1шт.

3

492-11056

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

4

836-4065

WOODRUFF KEY,M4 x 6.5 x 15.72

WOODRUFF KEY, , Pump gear M4 x 6.5 x 15.72

1шт.

5

J904643

FITTING

FITTING return

1шт.

6

J904778

BOLT

BOLT hex, locking device

1шт.

7

J904780

SEAL

SEAL locking bolt

1шт.

8

J904779

WASHER

WASHER locking

1шт.

9

J904637

SET SCREW

SCREW adjusting, low idle

1шт.

10

131-1144

LOCK NUT,Jam, #10 - 24

NUT hex, self-locking, No. 10 inch NF

1шт.

11

J904641

FITTING

FITTING inlet

1шт.

12

K962748

WASHER

WASHER inlet fitting, copper

1шт.

13

J904640

VENT

ORIFICE bleed

1шт.

14

J904646

BANJO BOLT

BOLT banjo

4шт.

15

J904644

WASHER

WASHER sealing

9шт.

16

K963867

SCREW

SCREW bleed, pump head

1шт.

17

J904630

SOLENOID

SOLENOID shut down, 12 volt

1шт.

18

J904635

O-RING

O-RING solenoid

1шт.

19

J904777

SPRING

SPRING solenoid

1шт.

20

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

TERMINAL adapter

1шт.

21

A77413

SCREW,Hex, M5 x 8mm

SCREW terminal

1шт.

22

K962755

ADAPTER

FITTING banjo

4шт.

23

J902501

STUD

STUD pump mounting

3шт.

24

J900589

NUT

NUT hex flange, M8

3шт.

25

J914389

GASKET

GASKET pump mounting

1шт.

26

J920594

PINION

GEAR pump drive, replaces J912885 gear

1шт.

27

J905387

BRACE

BRACE fuel pump, 4-390 engine only

1шт.

27a

J916024

BRACE

BRACE fuel pump, 4T-390 engine only

1шт.

28

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT heavy hex flange, 8 - 1.25 x 20 mm

3шт.
