(3-12) - FUEL FILTER, 4-390 ENGINE, 4T-390 ENGINE

Запчасти Case 580SK (3-12) - FUEL FILTER, 4-390 ENGINE, 4T-390 ENGINE (03) - FUEL SYSTEM

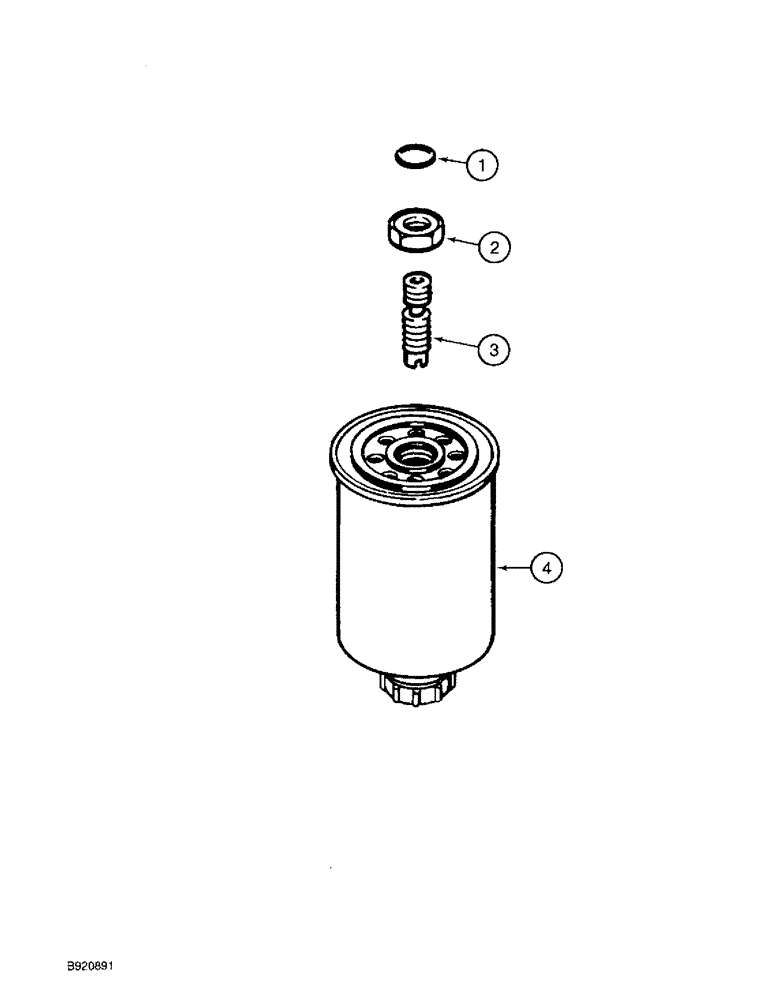

Схема запчастей Case 580SK - (3-12) - FUEL FILTER, 4-390 ENGINE, 4T-390 ENGINE (03) - FUEL SYSTEM
3
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING sealing, 14 mm ID

1шт.

2

J903293

JAM NUT

hex, 16 mm - 2.0

1шт.

3

J903845

BANJO BOLT

ADAPTER fuel

1шт.

4

J843760

FILTER

fuel, replaces J903202 filter; Filter Head Is Cast Into the Cylinder Head

1шт.

Выбрано товаров: 4
