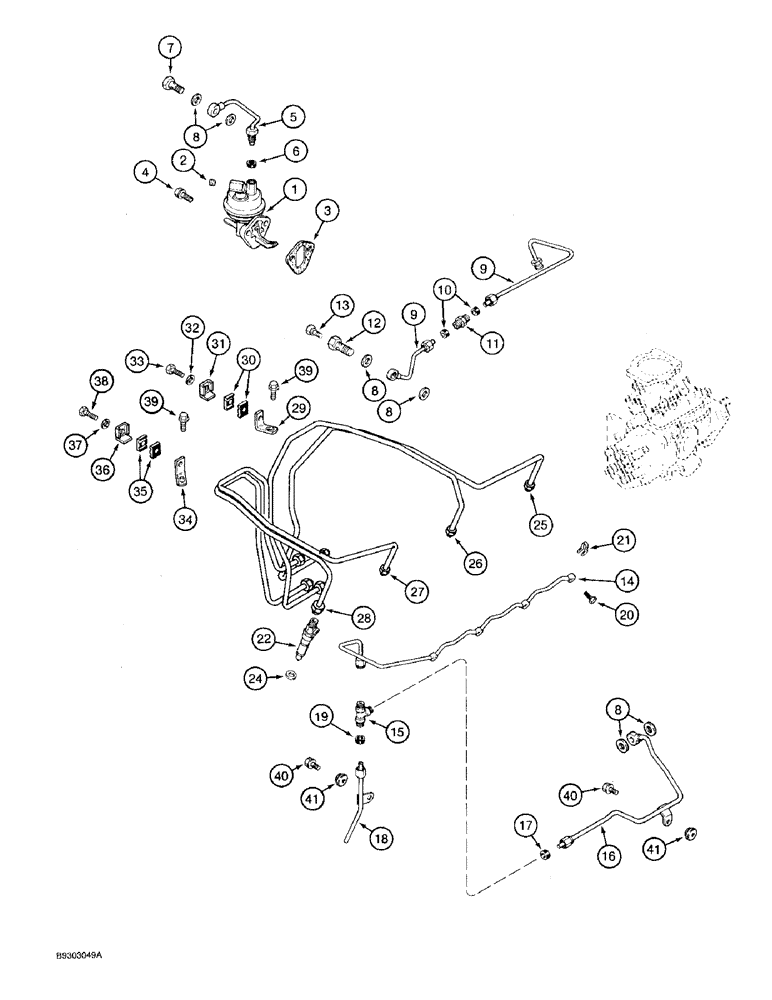

Запчасти Case 580SK (3-11A) - FUEL INJECTION SYSTEM, 4T-390 ENGINE, TRACTOR P.I.N.JJG0173468 AND AFTER (03) - FUEL SYSTEM

1

J904374

PUMP

lift, fuel

1шт.

2

221-841

PLUG

square socket, 1/4 inch PT, fuel inlet

1шт.

3

J914304

GASKET

fuel lift pump

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

heavy hex flange, 8 - 1.25 x 20 mm

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

TUBE ASSEMBLY fuel, lift pump to filter, Includes: Ref. 6

1шт.

6

222-101

SLEEVE,3/16" Tube

3/16 inch tube OD

1шт.

7

J903035

BANJO BOLT

BOLT banjo hex, 12 - 1.5 x 24 mm

1шт.

8

J918191

PACKING RING

WASHER sealing

6шт.

9

J918640

FUEL TUBE

TUBE ASSEMBLY fuel supply, two-piece, Includes: Ref. 10 and 11.

1шт.

10

222-103

SLEEVE,5/16" Tube

5/16 inch tube OD

2шт.

11

222-4

FITTING,9/16"-24, Flex Tube

CONNECTOR compression, 5/16 inch tube OD

1шт.

J905860

BANJO BOLT

BOLT ASSEMBLY banjo hex, special Includes: Ref. 12 and 13.

1шт.

12

NSS

NOT SOLD SEPARAT

BOLT connector, banjo hex, special

1шт.

13

NSS

NOT SOLD SEPARAT

SCREW hex, special, vent

1шт.

14

J909695

FUEL TUBE

TUBE manifold, tee to fuel tank return

1шт.

15

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing, Remove and discard hex nuts before assembly

1шт.

16

J905699

FUEL TUBE,4.76 mm OD

TUBE ASSEMBLY fuel return, tee to fuel injector pump, Includes: Ref. 17

1шт.

Fuel tubes, Ref. 16 and 18, bolt to tappet cover, see Figure 2-44, Ref. 22.

1шт.

17

222-103

SLEEVE,5/16" Tube

5/16 inch tube OD

1шт.

18

J905692

FUEL TUBE

TUBE ASSEMBLY fuel return, tee to fuel tank, Includes: Ref. 19

1шт.

Fuel tubes, Ref. 16 and 18, bolt to tappet cover, see Figure 2-44, Ref. 22.

1шт.

19

222-101

SLEEVE,3/16" Tube

for 3/16 inch tube

1шт.

20

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

4шт.

21

J903380

SEAL

connector

4шт.

22

REF

INSTRUCTION

INJECTOR ASSEMBLY fuel, see Figure 3-17A

4шт.

24

J906659

SEAL

injector

4шт.

25

J903480

FUEL TUBE,21 mm ID x 64 mm OD

TUBE ASSEMBLY fuel injector, No. 1 cylinder

1шт.

26

J903481

FUEL TUBE,21 mm ID x 64 mm OD

TUBE ASSEMBLY fuel injector, No. 2 cylinder

1шт.

27

J903482

FUEL TUBE,21 mm ID x 64 mm OD

TUBE ASSEMBLY fuel injector, No. 3 cylinder

1шт.

28

J903483

FUEL TUBE,21 mm ID x 64 mm OD

TUBE ASSEMBLY fuel injector, No. 4 cylinder

1шт.

29

J919294

SUPPORT

BRACKET fuel tubes No. 1 and 2

1шт.

30

J917746

CLAMP

fuel tube

2шт.

31

CURJ904711

CLAMP

BRACE clamp, fuel tube

1шт.

32

J903723

WASHER

lock, 5 mm

1шт.

33

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

1шт.

34

J919292

SUPPORT

BRACKET fuel tube No. 3 and 4

1шт.

35

J917746

CLAMP

fuel tube

2шт.

36

CURJ904711

CLAMP

BRACE clamp, fuel tube

1шт.

37

J903723

WASHER

lock, 5 mm

1шт.

38

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

1шт.

39

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special Hex Flg Hd, M8 x 1.25 x 25

2шт.

40

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

2шт.

41

J900267

SEAL

cover bolt

2шт.
