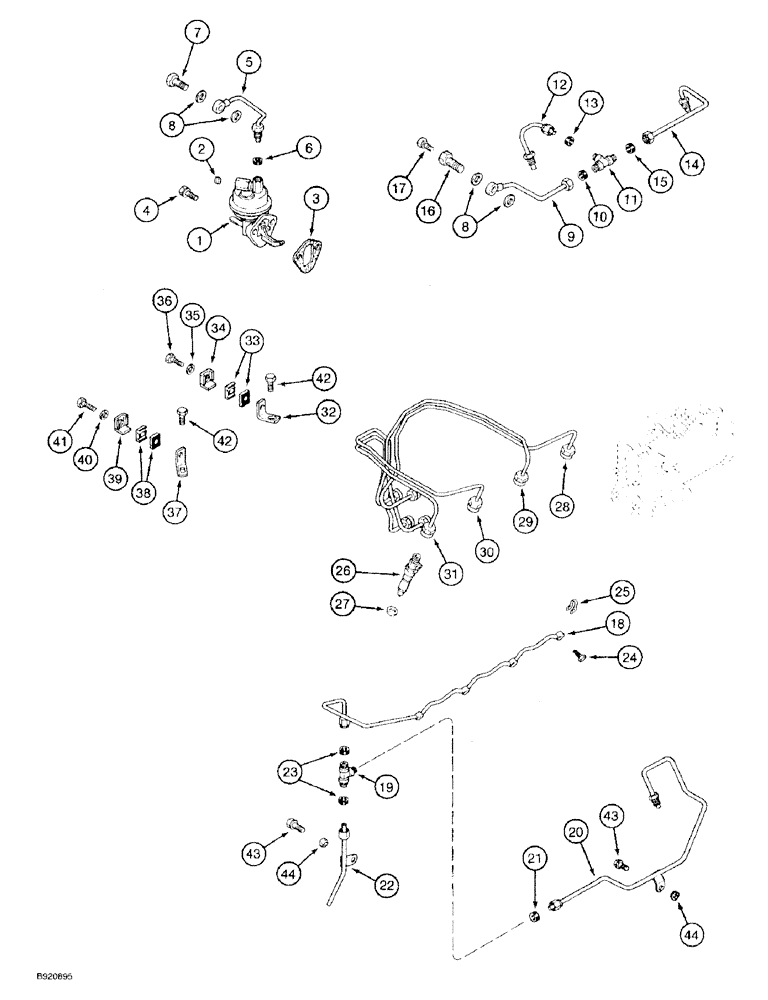

Запчасти Case 580SK (3-10) - FUEL INJECTION SYSTEM, 4-390 ENGINE, 4T-390 ENGINE PRIOR TO TRAC PIN JJG0173468 (03) - FUEL SYSTEM

1

J904374

PUMP

lift, fuel

1шт.

2

221-841

PLUG

square socket, 1/4 inch PT, fuel inlet

1шт.

3

J914304

GASKET

fuel lift pump

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

heavy hex flange, 8 - 1.25 x 20 mm

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

TUBE ASSEMBLY fuel, lift pump to filter, Includes: Ref. 6

1шт.

6

222-101

SLEEVE,3/16" Tube

3/16 inch tube OD

1шт.

7

J903035

BANJO BOLT

BOLT banjo hex, 12 - 1.5 x 24 mm

1шт.

8

J918191

PACKING RING

WASHER sealing, replaces J903037 washer

4шт.

9

J905364

FUEL TUBE

TUBE ASSEMBLY fuel supply, filter to tee, Includes: Ref. 10

1шт.

10

222-103

SLEEVE,5/16" Tube

5/16 inch tube OD

1шт.

11

222-123

TEE,5/16" Flex Tubing

Remove and discard nuts before assembly 5/16" Flex Tubing

1шт.

12

J905375

FUEL TUBE,8 mm OD x 137.6 mm L

TUBE ASSEMBLY fuel supply, tee to rear of injection pump, Includes: Ref. 13

1шт.

13

222-103

SLEEVE,5/16" Tube

5/16 inch tube OD

1шт.

14

J905363

FUEL TUBE,8 mm OD x 256.8 mm L

TUBE ASSEMBLY fuel supply, tee to front of injection pump, Includes: Ref. 15

1шт.

15

222-103

SLEEVE,5/16" Tube

5/16 inch tube OD

1шт.

J905860

BANJO BOLT

BOLT ASSEMBLY banjo hex, special, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

BOLT connector, banjo hex, special

1шт.

17

NSS

NOT SOLD SEPARAT

SCREW hex, special, vent

1шт.

18

J909695

FUEL TUBE

MANIFOLD fuel return

1шт.

19

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing, Remove and discard nuts before assembly

1шт.

20

J905703

FUEL TUBE,4.76 mm OD x 661 mm L

TUBE ASSEMBLY fuel return, tee to pump, Includes: Ref. 21

1шт.

21

222-103

SLEEVE,5/16" Tube

5/16 inch tube OD

1шт.

22

J905692

FUEL TUBE

TUBE ASSEMBLY fuel return, tee to fuel tank, Includes: Ref. 23

1шт.

23

222-101

SLEEVE,3/16" Tube

3/16 inch tube OD

2шт.

24

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

4шт.

25

J903380

SEAL

connector

4шт.

26

REF

INSTRUCTION

INJECTOR ASSEMBLY fuel, see Figures 3-16 and 3-18

4шт.

27

J906659

SEAL

injector

1шт.

28

J903522

FUEL TUBE,2 mm ID x 6.4 mm OD x 643.1 mm L

TUBE ASSEMBLY fuel injector, No. 1 cylinder

1шт.

29

J903523

FUEL TUBE,2 mm ID x 6.4 mm OD x 645.3 mm L

TUBE ASSEMBLY fuel injector, No. 2 cylinder

1шт.

30

J903524

FUEL TUBE

TUBE ASSEMBLY fuel injector, No. 3 cylinder

1шт.

31

J903525

FUEL TUBE

TUBE ASSEMBLY fuel injector, No. 4 cylinder

1шт.

A77484

SUPPORT ASSY.

BRACKET ASSEMBLY injection supply tube No. 1 and 2, no longer available, order components separately, Includes: Ref. 32 through 36

1шт.

32

J930689

SUPPORT

BRACKET fuel tube No. 1 and 2, replaced J919294

1шт.

33

J917746

CLAMP

fuel tube

2шт.

34

J904711

SUPPORT

BRACE clamp, fuel tube

1шт.

35

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

Special, Replaced J903723 M5 x 10 x 1

1шт.

36

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, , Replaced J917712 Hex Hd, M5 x .8 x 20, w/LW

1шт.

A77485

SUPPORT ASSY.

BRACKET ASSEMBLY injection supply tube No. 3 and 4, no longer available, order components separately, Includes: Ref. 37 through 41

1шт.

37

J930688

SUPPORT

BRACKET fuel tube, replaced J919292

1шт.

38

J917746

CLAMP

fuel tube

2шт.

39

CURJ904711

CLAMP

BRACE clamp, fuel tube

1шт.

40

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

Special, Replaced J903723 M5 x 10 x 1

1шт.

41

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, , Replaced J917712 Hex Hd, M5 x .8 x 20, w/LW

1шт.

42

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special Hex Flg Hd, M8 x 1.25 x 25

2шт.

43

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

2шт.

44

J900267

SEAL

cover bolt

2шт.
