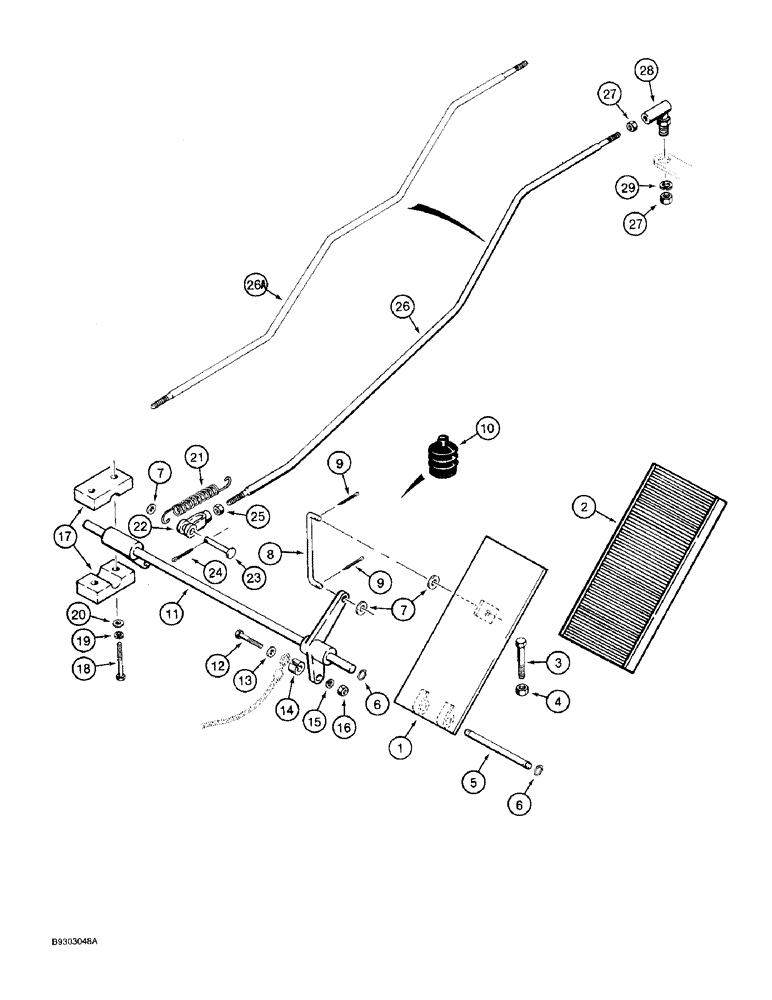

Запчасти Case 580SK (3-08) - THROTTLE CONTROL LINKAGE, FOOT CONTROLS (03) - FUEL SYSTEM

1

D124863

PEDAL

accelerator

1шт.

2

D137499

COVER

PAD cover, accelerator pedal

1шт.

3

D150505

BOLT

BOLT hex, special, pedal stop, replaces 413-648

1шт.

4

425-106

NUT,3/8"-16, Cl 5

1шт.

5

D143413

PIN,9.52mm OD x 106mm L

pedal base

1шт.

6

D143414

CIRCLIP

RING snap

2шт.

7

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

8

D143428

STEM

ROD bent, accelerator pedal

1шт.

9

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

10

D85869

BELLOWS

BOOT, accelerator pedal rod, at floor plate

1шт.

11

D150687

SHAFT

throttle, replaces D146126 shaft

1шт.

12

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

1шт.

13

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

14

D124865

SPACER

cable

1шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

16

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

17

D124857

CLAMP

BLOCK cross shaft

4шт.

18

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

19

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

20

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

21

D93823

SPRING

throttle return

1шт.

22

213-125

ADJUSTABLE CLEVIS,5/16" - 32

CLEVIS - adjustable, 5/16 inch NF

1шт.

23

427-5112

CLEVIS PIN,5/16" x 1 1/8"

PIN - clevis, 5/16 x 1-1/8 inch

1шт.

24

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

25

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

1шт.

26

D147425

ROD

throttle, to injection pump, used on models without turbocharged engines, and models with turbocharged changes prior to tractor P.I.N. JJG0173468

1шт.

26a

D144108

ROD

throttle, to injection pump, used on models with turbocharged engines on tractor P.I.N. JJG0173468 and after

1шт.

27

425-114

NUT,1/4"-28, G5

2шт.

28

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT ball, at injection pump

1шт.

29

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
