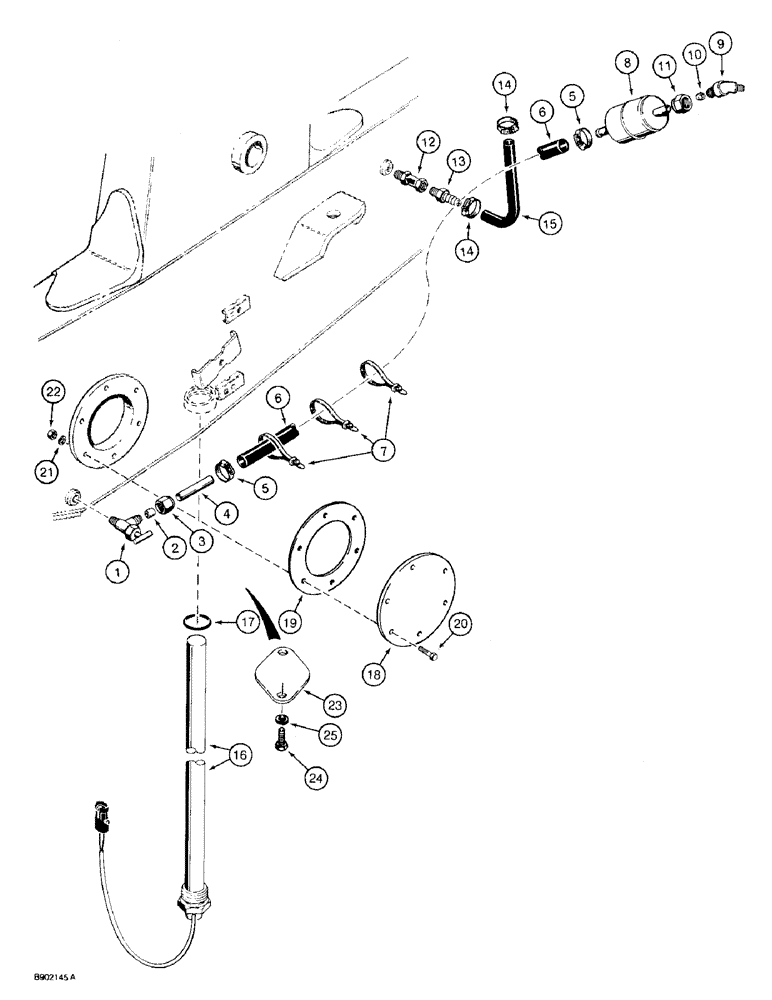

Запчасти Case 580SK (3-02) - FUEL RESERVOIR LINES AND FUEL LEVEL SENDER (03) - FUEL SYSTEM

D74027

VALVE

ASSEMBLY shutoff, fuel tank outlet, Includes: Ref. 1, 2 and 3.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY shutoff valve

1шт.

2

222-654

FERRULE,3/8" Tube, Comp

tapered, 3/8 inch tube OD

1шт.

3

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

NUT hex, 3/8 tube OD x 9/16-24 inch

1шт.

4

D145358

TUBE

fuel line

1шт.

5

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

2шт.

6

L79833

LARGE HOSE

HOSE, 3/8 inch ID x 46 inch long, fuel line, replaces D145096, cut to required length from S118400 bulk hose, see below

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon, retaining, attaches fuel line hose to loader inlet valve tube

3шт.

8

D145357

FILTER

fuel, in-line

1шт.

222-95

ELBOW,45 Degree, 5/8"-24 x 1/4" NPT

45 degree, compression, 3/8 tube OD x 1/4 inch PT to engine fuel pump, Includes: Ref. 9, 10 and 11

1шт.

9

NSS

NOT SOLD SEPARAT

BODY elbow

1шт.

10

222-104

SLEEVE,3/8" Tube

3/8 inch tube OD

1шт.

11

222-114

NUT,5/8"-24

NUT hex, 3/8 tube OD x 5/8-24 inch

1шт.

12

A177556

CHECK VALVE,1/4" NPT x 1/4" NPT

VALVE check, anti-drain

1шт.

13

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

ADAPTER straight, 1/4 barb end x 1/4 inch PT

1шт.

14

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP adj, 1/4 - 5/8 inch dia

2шт.

15

D141617

FUEL HOSE,6.35 mm ID x 241.00 mm, SAE J30, 30R6 or SAE 30R7

6.35 mm ID x 241.00 mm SAE J30, 30R6 Or SAE 30R7, Cut From A21561 Bulk Hose, See Below, Engine Injector Return Line

1шт.

120380A1

FUEL GAUGE

SENDER ASSEMBLY fuel level, models without auxiliary fuel tank, has red dot, registers 24 gallons full, replaces D147998

1шт.

120379A1

SENDER UNIT

SENDER ASSEMBLY fuel level, models with auxiliary fuel tank, registers 31 gallons full, replaces D144819, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

SENDER electronic

1шт.

17

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

18

D150213

COVER

fuel flange, 1 used if 3 mm thick, 2 used if 2 mm thick

1-2шт.

19

D129228

GASKET

fuel flange cover

1шт.

20

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

hex, 1/4 NC x 1 inch

6шт.

21

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

22

425-104

NUT,1/4"-20, Cl 5

hex, 1/4 inch NC

6шт.

A21561

HOSE,0.25" ID x 25.00"

0.25" ID x 25.00' - Bulk, Used on Ref. 15

1шт.

S118400

HOSE,0.38" ID x 300.00"

- Bulk 0.38" ID x 300.00"

1шт.

23

D145581

COVER

fuel sender

1шт.

24

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

25

492-11038

LOCK WASHER,3/8"

1шт.
