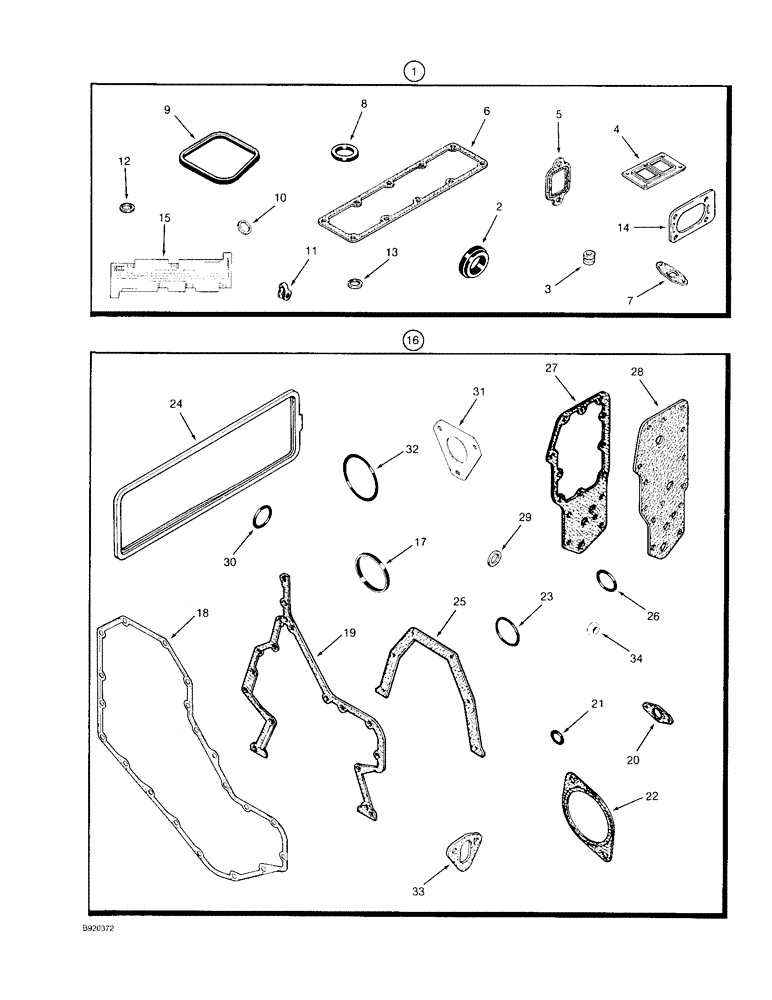

Запчасти Case 580SK (2-56) - ENGINE GASKET KITS, 4-390 ENGINE, 4T-390 ENGINE, VALVE GRIND (02) - ENGINE

1

A77792

GASKET KIT

KIT gasket, valve grind, valve grind kit, Includes: Ref. 2 through 15

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket, Ref. 2, Figure 2-34.

1шт.

2

J923331

GASKET

thermostat housing, replaces J920020 gasket, valve grind kit

1шт.

3

J901097

SEAL

intake and exhaust valve guides, valve grind kit

8шт.

4

J901356

GASKET,0.5mm Thk

turbocharger to manifold, valve grind kit

1шт.

5

J905443

MANIFOLD GASKET

exhaust manifold, valve grind kit

4шт.

6

J914028

GASKET

intake manifold, valve grind kit

1шт.

7

J914388

GASKET

oil drain tube, valve grind kit

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

oil fill cap, valve grind kit

1шт.

9

J902666

GASKET

SEAL rocker cover, valve grind kit

4шт.

10

J900808

SEAL

9 mm, injector, not used in this application, valve grind kit

4шт.

11

J903380

SEAL

connector, fuel return manifold tube, valve grind kit

4шт.

12

J906659

SEAL

7 mm, injector tip, replaces J920174 seal, valve grind kit

4шт.

13

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

injector body, valve grind kit

4шт.

14

J914856

GASKET,1.02mm Thk

air crossover connection, valve grind kit

1шт.

15

J823921

GAUGE

bolt length, cylinder head, valve grind kit

1шт.

16

A77671

GASKET KIT

KIT gasket, cylinder block, cylinder block kit, Includes: Ref. 17 through 34

1шт.

For complete engine overhaul, order, 1, cylinder block kit, 1, valve grind kit, 1, oil pan kit, Ref. 2-32, front and rear crankshaft seal kit, Ref. 2-48, and required cylinder head gasket, Ref. 2-34.

1шт.

17

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover, cylinder block kit

1шт.

18

J914385

GASKET,1.02mm Thk

front gear cover to housing, cylinder block kit

1шт.

19

J916131

GASKET

timing gear housing, cylinder block kit

1шт.

20

J905595

GASKET

timing pin housing, not used in this application, cylinder block kit

1шт.

21

J913994

O-RING

sealing, timing pin, cylinder block kit

1шт.

22

J919601

GASKET

accessory drive cover plate, replaces J913192 gasket, cylinder block kit

1шт.

23

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Water pump, cylinder block kit -341, 70 Duro, 3.475" ID x .210" Thk

1шт.

24

J922078

GASKET

tappet cover, replaces J904056 gasket, cylinder block kit

1шт.

25

J914386

GASKET

seal retainer, crankshaft, cylinder block kit

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING sealing, 50 mm ID, water inlet connection, cylinder block kit

1шт.

27

J918256

GASKET

cooler core, oil, cylinder block kit

1шт.

28

J918257

GASKET

filter head, cylinder block kit

1шт.

29

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

seal, plug, oil pan, cylinder block kit

1шт.

30

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING sealing, engine oil fill tube, cylinder block kit

1шт.

31

J914389

GASKET

fuel injection pump mounting, cylinder block kit

1шт.

32

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING flywheel housing to block, cylinder block kit

1шт.

33

J914304

GASKET

fuel lift pump, cylinder block kit

1шт.

34

J900267

SEAL

tappet cover bolt, cylinder block kit

4шт.
