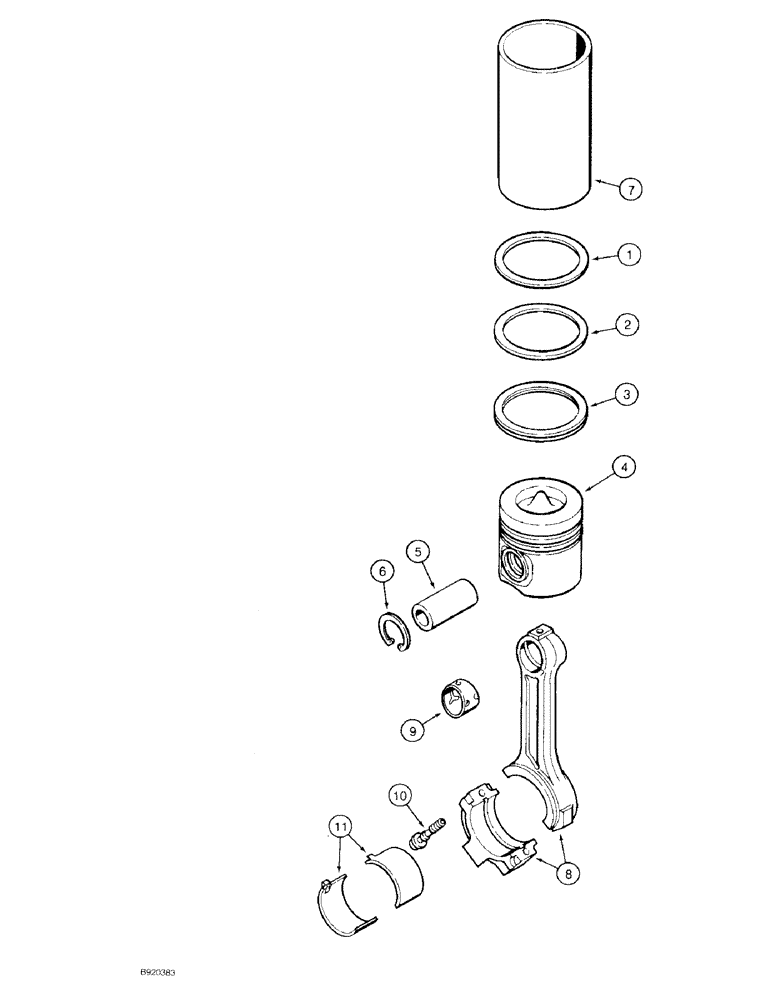

Запчасти Case 580SK (2-54) - PISTONS, 4T-390 ENGINE, CONNECTING RODS (02) - ENGINE

A77730

PISTON,104MM PISTON DIAMETER

KIT piston, standard, pistons 4T-390 engine, Includes: Ref. 1 through 6 and P/N A77727

4шт.

A77727

PISTON RING SET

KIT ring, standard, pistons 4T-390 engine, Includes: Ref. 1, 2 and 3.

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top, pistons 4T-390 engine

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle, pistons 4T-390 engine

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom, pistons 4T-390 engine

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, standard, Stamped 7163, pistons 4T-390 engine

1шт.

5

J901793

PISTON PIN

PIN - piston, pistons 4T-390 engine

1шт.

6

J901706

RING

retainer, pin, pistons 4T-390 engine

2шт.

A77731

PISTON & RINGS KIT

KIT piston, 0.5 mm oversize, pistons 4T-390 engine, Includes: Ref. 1 through 6 and P/N A77728

4шт.

A77728

PISTON RING SET

KIT ring, 0.5 mm oversize, pistons 4T-390 engine, Includes: Ref. 1, 2 and 3.

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top, pistons 4T-390 engine

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle, pistons 4T-390 engine

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom, pistons 4T-390 engine

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 0.5 mm oversize, Stamped 8815, pistons 4T-390 engine

1шт.

5

J901793

PISTON PIN

PIN - piston, pistons 4T-390 engine

1шт.

6

J901706

RING

retainer, pin, pistons 4T-390 engine

2шт.

A77732

PISTON

KIT piston, 1.0 mm oversize, pistons 4T-390 engine, Includes: Ref. 1 through 6 and P/N A77729

4шт.

A77729

PISTON RING SET

KIT ring, 1.0 mm oversize, pistons 4T-390 engine, Includes: Ref. 1, 2 and 3.

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top, pistons 4T-390 engine

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle, pistons 4T-390 engine

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom, pistons 4T-390 engine

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 1.0 mm oversize, Stamped 8816, pistons 4T-390 engine

1шт.

5

J901793

PISTON PIN

PIN - piston, pistons 4T-390 engine

1шт.

6

J901706

RING

retainer, pin, pistons 4T-390 engine

2шт.

7

J904166

SLEEVE

LINER piston, used only in engine block repair, When liner is installed, use A77730 piston kit, pistons 4T-390 engine

1шт.

J925232

ROD, CONNECTING

ROD ASSEMBLY connecting, replaces J901569 rod assembly, connection rods, Includes: Ref. 8, 9, and 10.

4шт.

JR925232

ROD

Assembly connecting, remanufactured, component parts shown on this page do not apply to the remanufactured assembly, replaces JR901569 rod assembly, connection rods

4шт.

JC925232

CORE-ROD CONNECTING

Return Number use this part number to return connecting rod for credit when using a remanufactured assembly, replaces JC901569, connection rods

4шт.

84145405R

REMAN-CONNECTING ROD

580SK, Reman For New PN J925232

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

4шт.

JC942581

CORE-ROD CONNECTING

Return Number

4шт.

JC901569

CORE-ROD CONNECTING

Return Number, Connecting Rod

4шт.

8

NSS

NOT SOLD SEPARAT

ROD connecting, includes both halves, connection rods

1шт.

9

J901085

BUSHING

- rod to piston pin, connection rods

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT hex, special, connection rods

2шт.

11

A77465

BEARING SET

KIT bearing, standard, upper and lower set, connection rods

4шт.

11

A77466

BEARING SET

KIT bearing, 0.25 mm undersize, upper and lower set, connection rods

4шт.

11

A77467

BEARING LINER

KIT bearing, 0.50 mm undersize, upper and lower set, connection rods

4шт.

11

A77468

BEARING SET

KIT bearing, 0.75 mm undersize, upper and lower set, connection rods

4шт.

11

A77469

BEARING SET

KIT bearing, 1.00 mm undersize, upper and lower set, connection rods

4шт.
