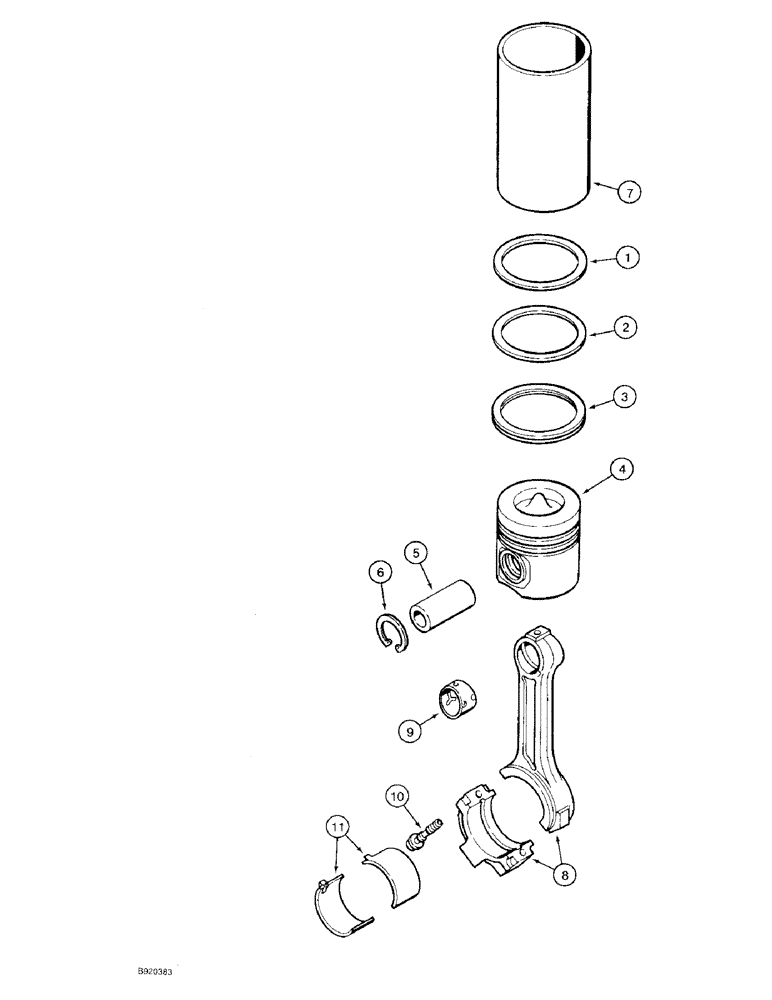

Запчасти Case 580SK (2-52) - PISTONS AND CONNECTING RODS, 4-390 ENGINE, CONNECTING RODS (02) - ENGINE

A77410

PISTON

KIT piston, standard, pistons and connection rods 4-390 engine, Includes: Ref. 1 through 6 and P/N A77401

4шт.

A77410/411/412 are short pin piston kits, stamped 6223,6209, and 6208 on piston - A77818/819/820 are long pin piston kits, stamped 1880, 1882, 1881 on piston, do not mix

1шт.

A77401

PISTON RING SET

KIT ring, standard, pistons and connection rods 4-390 engine, Includes: Ref. 1, 2 and 3.

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top, pistons and connection rods 4-390 engine

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle, pistons and connection rods 4-390 engine

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom, pistons and connection rods 4-390 engine

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, standard, Stamped 6223, pistons and connection rods 4-390 engine

1шт.

5

J901793

PISTON PIN

PIN - piston, pistons and connection rods 4-390 engine

1шт.

6

J901706

RING

retainer, pin, pistons and connection rods 4-390 engine

2шт.

A77411

PISTON

KIT piston, 0.5 mm oversize, pistons and connection rods 4-390 engine, Includes: Ref. 1 through 6 and P/N A77463

4шт.

A77410/411/412 are short pin piston kits, stamped 6223,6209, and 6208 on piston - A77818/819/820 are long pin piston kits, stamped 1880, 1882, 1881 on piston, do not mix

1шт.

A77463

PISTON RING SET

KIT ring, 0.5 mm oversize, pistons and connection rods 4-390 engine, Includes: Ref. 1, 2 and 3.

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top, pistons and connection rods 4-390 engine

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle, pistons and connection rods 4-390 engine

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom, pistons and connection rods 4-390 engine

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 0.5 mm oversize, Stamped 6209, pistons and connection rods 4-390 engine

1шт.

5

J901793

PISTON PIN

PIN - piston, pistons and connection rods 4-390 engine

1шт.

6

J901706

RING

retainer, pin, pistons and connection rods 4-390 engine

2шт.

A77412

PISTON

KIT piston, 1.0 mm oversize, pistons and connection rods 4-390 engine, Includes: Ref. 1 through 6 and P/N A77464

4шт.

A77410/411/412 are short pin piston kits, stamped 6223,6209, and 6208 on piston - A77818/819/820 are long pin piston kits, stamped 1880, 1882, 1881 on piston, do not mix

1шт.

A77464

PISTON RING SET

KIT ring, 1.0 mm oversize, pistons and connection rods 4-390 engine, Includes: Ref. 1, 2 and 3.

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top, pistons and connection rods 4-390 engine

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle, pistons and connection rods 4-390 engine

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom, pistons and connection rods 4-390 engine

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 1.0 mm oversize, Stamped 6208, pistons and connection rods 4-390 engine

1шт.

5

J901793

PISTON PIN

PIN - piston, pistons and connection rods 4-390 engine

1шт.

6

J901706

RING

retainer, pin, pistons and connection rods 4-390 engine

2шт.

7

J904166

SLEEVE

LINER piston, used only in engine block repair, When liner is installed, use A77410 piston kit, pistons and connection rods 4-390 engine

1шт.

J925232

ROD, CONNECTING

ROD ASSEMBLY connecting, replaces J901569 rod assembly, connection rods, Includes: Ref. 8, 9 and 10.

4шт.

JR925232

ROD

Assembly connecting, remanufactured, component parts on this page to not apply to the remanufactured assembly, replaces JR901569 rod assembly, connection rods

4шт.

JC925232

CORE-ROD CONNECTING

Return Number use this part number to return connecting rod for credit when using a remanufactured assembly, replaces JC901569, connection rods

4шт.

84145405R

REMAN-CONNECTING ROD

580SK, Reman For New P/N J925232

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

4шт.

JC942581

CORE-ROD CONNECTING

Return Number

4шт.

JC901569

CORE-ROD CONNECTING

Return Number, Connecting Rod

4шт.

8

NSS

NOT SOLD SEPARAT

ROD connecting, includes both halves, connection rods

1шт.

9

J901085

BUSHING

- rod to piston pin, connection rods

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT hex, special, connection rods

2шт.

11

A77465

BEARING SET

KIT bearing, standard, upper and lower set, connection rods

4шт.

11

A77466

BEARING SET

KIT bearing, 0.25 mm undersize, upper and lower set, connection rods

4шт.

11

A77467

BEARING LINER

KIT bearing, 0.50 mm undersize, upper and lower set, connection rods

4шт.

11

A77468

BEARING SET

KIT bearing, 0.75 mm undersize, upper and lower set, connection rods

4шт.

11

A77469

BEARING SET

KIT bearing, 1.00 mm undersize, upper and lower set, connection rods

4шт.
