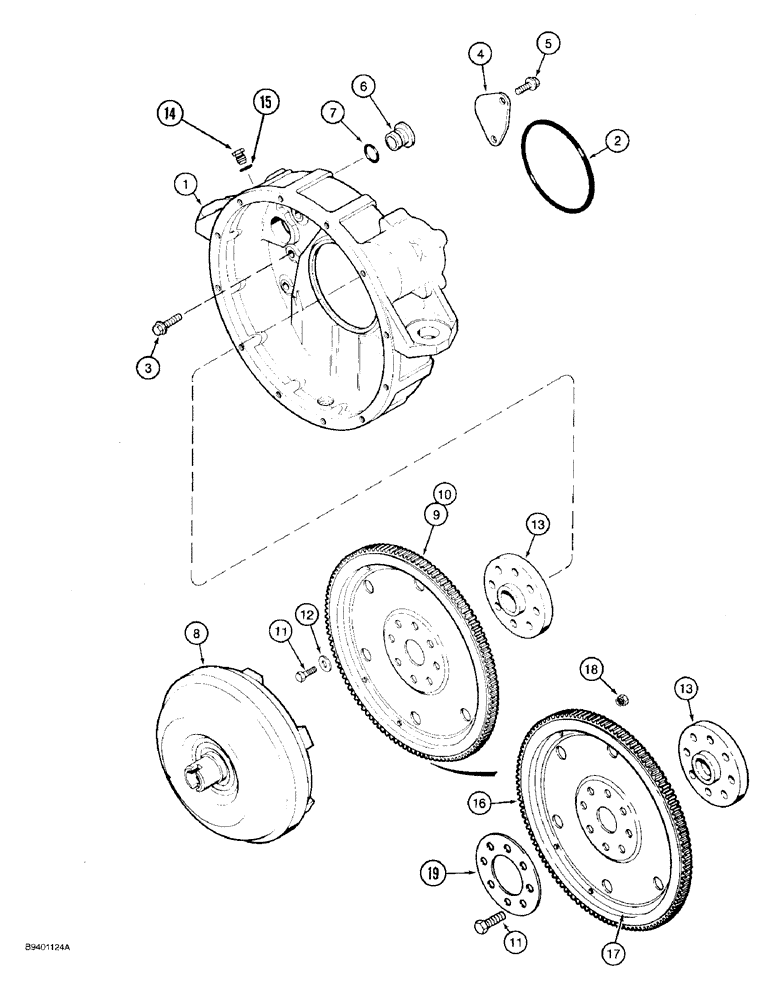

Запчасти Case 580SK (2-50) - FLEX PLATE AND HOUSING, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

1

J903287

CASE

HOUSING flywheel

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING, Serial Range: housing-block

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 40 mm, class 10.9

8шт.

4

J908095

PLATE

cover

1шт.

5

J902735

BOLT,M8 - 1.25 x 21 mm

hex, flange, plate retaining

2шт.

6

J910248

PLUG

housing

1шт.

7

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

8

REF

INSTRUCTION

CONVERTER torque, see Section 6

1шт.

9

J918961

FLYWHEEL

PLATE ASSEMBLY flex, no longer available, for service order J922595 plate assembly, Ref. 16 - 18, Includes: Ref. 10.

1шт.

10

NSS

NOT SOLD SEPARAT

GEAR flex plate, 159 teeth

1шт.

11

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, special, M12 x 32

8шт.

12

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

flat, flex plate bolt, if used

8шт.

13

J913689

FLANGE

ADAPTER crankshaft

1шт.

14

214389

PLUG,3/4" - 16 ORB

Includes Ref. 15. Hex Hd, 3/4"-16 ORB

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

15/32 ID x 5/64 inch

1шт.

J922595

FLYWHEEL

PLATE ASSEMBLY flex, Includes: Ref. 16, 17 and 18.

1шт.

16

NSS

NOT SOLD SEPARAT

GEAR ring, flywheel

1шт.

17

NSS

NOT SOLD SEPARAT

PLATE flex

1шт.

18

NSS

NOT SOLD SEPARAT

NUT sealing

6шт.

19

J904361

WASHER

RING clamping, if used

1шт.
