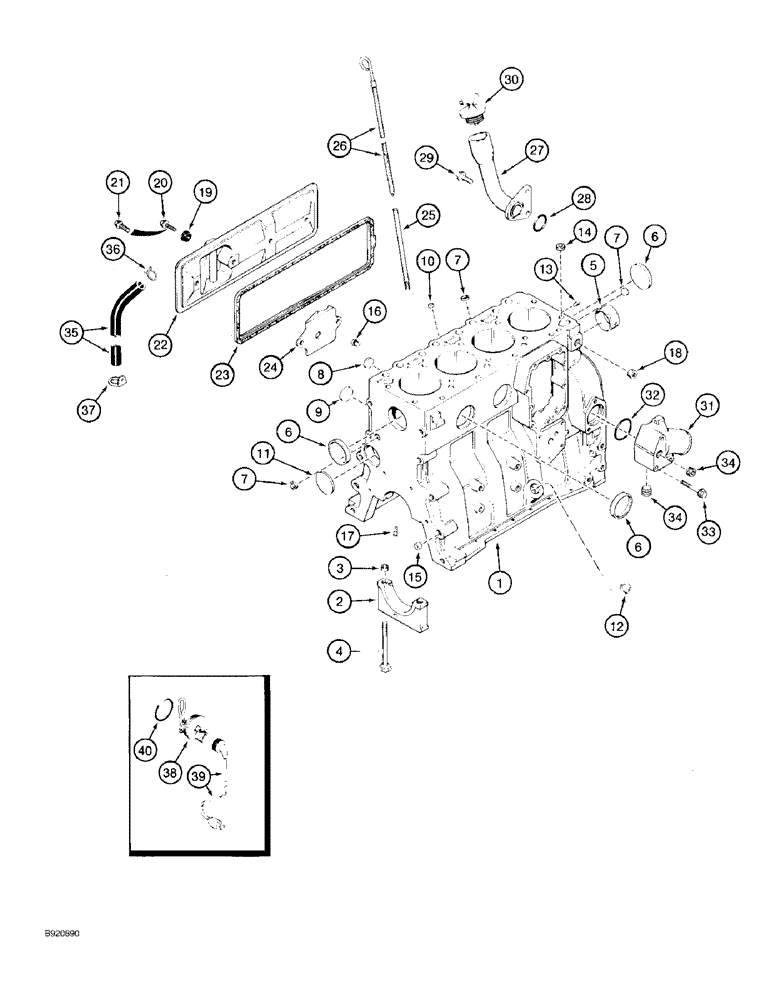

Запчасти Case 580SK (2-44) - CYLINDER BLOCK, 4T-390 ENGINE (02) - ENGINE

1989068C2

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY, 4T-390 standard, Turbocharged, complete, new, includes all parts except: starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, prior to tractor P.I.N. JJG0173468, for service order 1989092C2 basic engine, below

1шт.

1989068C2R

REMAN-REPLACEMENT EN

1шт.

4T-390C

CORE-REPLACEMENT ENG

Return Part Number, Complete

1шт.

1989071C2

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY, 4T-390 standard, Turbocharged, complete, new, includes all parts except: starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, tractor P.I.N. JJG0173468 and after, for service order 1989092C2 basic engine, below

1шт.

1989071C2R

REMAN-REPLACEMENT EN

1шт.

4T-390C

CORE-REPLACEMENT ENG

Return Part Number, Complete

1шт.

1989092C2

BASIC ENGINE

ENGINE ASSEMBLY basic, new, 4T-390 engine

1шт.

1989092C3R

REMAN-BASIC ENGINE

ENGINE ASSEMBLY basic, Reman, 4T-390 engine

1шт.

1989092C3C

CORE-BASIC ENGINE

Return Part Number

1шт.

AR77758

BLOCK ASSY.

1шт.

AC77758

CORE-ENGINE

Return Part Number, 4T-390, use this part number to return short block core for credit when using a remanufactured assembly

1шт.

J920387

SKELETON ENGINE

BLOCK ASSEMBLY short, engine, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, Includes: Ref. 1 through 8.

1шт.

Order J920399 hardware kit when ordering J920384 block assembly or J916254 stripped block.

1шт.

JR920387

SKELETON ENGINE

BLOCK ASSEMBLY short, engine, 4T-390, remanufactured, North America only, component parts on this page do not apply to the remanufactured assembly, replaces AR77759

1шт.

JC920387

SKELETON ENGINE

Return Part Number

1шт.

JR933236

REMAN-SHORT ENGINE

1шт.

JC933236

CORE-SHORT ENGINE

Return Part Number

1шт.

1

J916254

BLOCK ASSY.

BLOCK ASSEMBLY stripped, engine, cylinder blcok 4T - 390 engine, Includes: Ref. 2 through 8.

1шт.

Order J920399 hardware kit when ordering J920384 block assembly or J916254 stripped block.

1шт.

2

J900967

BEARING CAP

CAP main bearing, cylinder block 4T - 390 engine

5шт.

3

J900068

BEARING WASHER

RING dowel, 18 mm OD, cylinder block 4T - 390 engine

10шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT bearing cap, special, cylinder block 4T - 390 engine

10шт.

5

REF

INSTRUCTION

BUSHING camshaft front, see Figure 2-38, Ref. 2, cylinder block 4T - 390 engine

1шт.

6

A77782

PLUG

PLUG expansion, 58 mm OD, replaces J900965 plug, cylinder block 4T - 390 engine

4шт.

7

J900956

PLUG

PLUG expansion, 18 mm OD, cylinder block 4T - 390 engine

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

PLUG, , Expansion, Replaces A77539, Cylinder block 4T - 390 engine Cup, 1", Stainless

2шт.

J802641

PACKAGE, REPAIR

KIT block hardware, cylinder block 4T - 390 engine, Includes: Ref. 9 through 18.

1шт.

Order J920399 hardware kit when ordering J920384 block assembly or J916254 stripped block.

1шт.

9

J900958

PLUG

PLUG expansion, 32 mm OD, cylinder block 4T - 390 engine

2шт.

10

J900955

PLUG

PLUG expansion, 10 mm OD, cylinder block 4T - 390 engine

1шт.

11

172599

PLUG,Exp, 2 3/8"

PLUG expansion, Welch, 60 mm OD, replaces J900687, cylinder block 4T - 390 engine

1шт.

12

A77439

PLUG

PLUG expansion, 22 mm OD, cylinder block 4T - 390 engine

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

PIN dowel, 16 mm long, cylinder block 4T - 390 engine

2шт.

14

J902343

DOWEL

RING dowel, 16 mm OD, cylinder block 4T - 390 engine

2шт.

15

J900068

BEARING WASHER

RING dowel, 18 mm OD, cylinder block 4T - 390 engine

2шт.

16

J906619

PLUG,1/8" - 27

PLUG hex, 1/8 inch PT, cylinder block 4T - 390 engine

2шт.

17

J919002

NOZZLE CAP

NOZZLE piston cooling, cylinder block 4T - 390 engine

6шт.

18

A77429

PLUG

PLUG hex socket, 1/2 inch PT, cylinder block 4T - 390 engine

1шт.

19

J900267

SEAL

SEAL cover bolt, cylinder block 4T - 390 engine

4шт.

20

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm, If used, cylinder block 4T - 390 engine

4шт.

21

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT heavy hex flange, 8 - 1.25 x 20 mm, If used, cylinder block 4T-390 engine

4шт.

22

J925680

COVER

COVER tappet, replaces J916441 and J905023 cover, cylinder block 4T - 390 engine

1шт.

23

J922078

GASKET

GASKET tappet cover, replaces J904056 gasket, cylinder block 4T - 390 engine

1шт.

24

J907586

BAFFLE

BAFFLEtappet cover, cylinder block 4T - 390 engine

1шт.

25

J905779

TUBE,9.52 mm OD x 228 mm L

TUBE dipstick, cylinder block 4T - 390 engine

1шт.

26

J905781

DIPSTICK

DIPSTICK oil level gauge, cylinder block 4T - 390 engine

1шт.

27

J905440

TUBE

TUBE oil fill, cylinder block 4T - 390 engine

1шт.

28

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING sealing, 38 mm ID, cylinder block 4T - 390 engine

1шт.

29

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

BOLT heavy hex flange, 12- 1.75 x 25 mm, class 10.9, cylinder block 4T - 390 engine

2шт.

30

A77424

FILLER CAP

CAP fill, oil, cylinder block 4T - 390 engine

1шт.

31

J903102

CONNECTION

CONNECTION water inlet, cylinder block 4T - 390 engine

1шт.

32

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING sealing, 50 mm ID, cylinder block 4T - 390 engine

1шт.

33

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

BOLT heavy hex flange, 10 - 1.50 x 75 mm, class 10.9, cylinder block 4T - 390 engine

3шт.

34

A77429

PLUG

PLUG hex socket, 1/2 inch PT, cylinder block 4T - 390 engine

2шт.

35

J918612

TUBE,360.00 mm

Breather, Replaces J906593, Cylinder Block 4T - 390 Engine

1шт.

36

J904230

CLAMP,25.4mm

CLAMP spring, hose, cylinder block 4T - 390 engine

1шт.

37

J909670

CLIP

CLIP retaining, cylinder block 4T - 390 engine

1шт.

A77634

KIT

KIT engine block heater, engine block heater, Includes: Ref. 38, 39 and 40.

1шт.

38

NSS

NOT SOLD SEPARAT

ELEMENT engine heater, 120 volt, engine block heater

1шт.

39

J905113

CABLE

CABLE heater, block, engine block heater

1шт.

40

J910517

O-RING

O-RING heater, sealing, engine block heater

1шт.
